PLC vs FBT Splitters: What are the differences?

Fiber optic technology is the cornerstone of modern communication. Within these networks, the optical splitter plays a vital role. Its job is to take a signal from the main fiber and split it for multiple end-users. Currently, there are two mainstream types: Fused Biconical Taper (FBT) splitters and Planar Lightwave Circuit (PLC) splitters. They use different manufacturing processes, which leads to distinct characteristics in performance, cost, and ideal application scenarios.  Every network builder faces critical decisions that shape projects for years. Among these, choosing between PLC and FBT optical splitters might seem technical, but it affects everything from installation costs to long-term reliability. As fiber networks expand globally, understanding these differences becomes essential for anyone building, maintaining, or upgrading optical infrastructure.

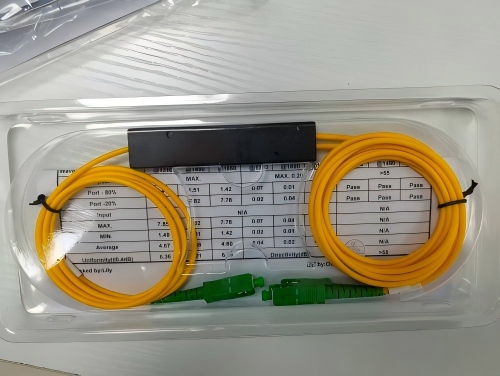

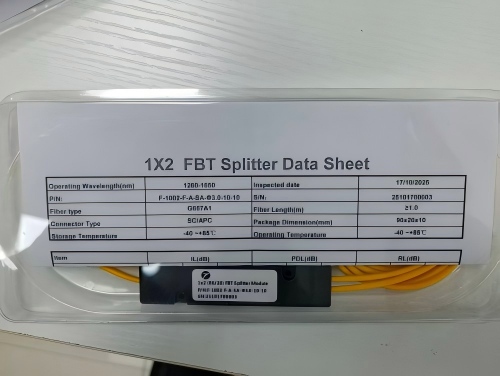

What is the FBT Splitter?

FBT Splitters: The Traditional Craft

The FBT manufacturing process connects with fiber optics' artisan roots. Technicians begin with multiple bare glass fibers, carefully stripping protective coatings to expose pure glass strands. Using precise heating equipment, they fuse these fibers while simultaneously stretching them, creating a tapered region where light can transfer between fibers.

This manual process offers unique advantages. Since technicians control every stage, they can create custom split ratios—perfect for specialized applications where equal distribution isn't ideal. The equipment costs less than PLC manufacturing setups, keeping initial investments manageable for smaller operations.

However, this craftsmanship has limits. Each fusion point represents a potential failure location. As split counts increase, these multiple fusion points multiply risks. The manual process also introduces natural variations—no two FBT splitters perform identically, requiring careful testing and selection for critical applications.

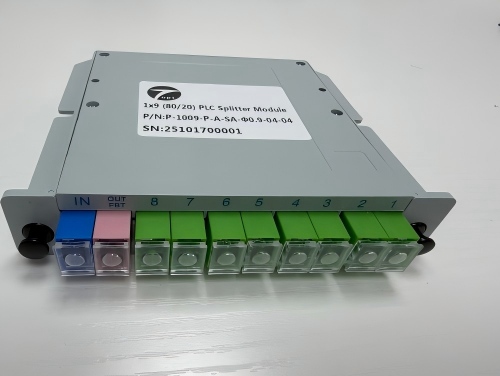

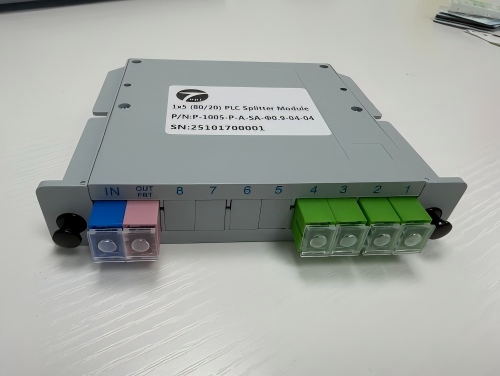

What is the PLC splitter?

PLC Splitters: Precision Engineering at Scale

PLC technology represents fiber optics' evolution into precision manufacturing. The process begins with a silica glass substrate, similar to materials used in semiconductor manufacturing. Using photolithographic techniques, manufacturers etch microscopic waveguides onto this substrate, creating predetermined light paths that split signals with mathematical precision.

This automated approach delivers remarkable consistency. Waveguide dimensions control with micron-level accuracy, ensuring each output port receives exactly the planned signal percentage. The integrated chip design eliminates multiple fusion points, creating a single, robust splitting element.

The semiconductor approach brings scalability. Once manufacturers create the mask for a particular split configuration, they can produce thousands of identical units with minimal variation. This consistency becomes increasingly valuable as networks expand and require interchangeable components.

Detailed Performance Analysis:

Operating Wavelengths:

FBT splitters operate optimally within specific wavelength windows—typically 1310nm, 1490nm, and 1550nm. These correspond to common telecommunications bands but create limitations for evolving networks. As systems incorporate additional wavelengths for capacity expansion, FBT splitters may require replacement or complex workarounds.

PLC splitters demonstrate wavelength-independent performance across the full 1260-1650nm range. This broadband capability future-proofs installations, allowing network operators to introduce new services without replacing distribution components. For passive optical networks evolving toward WDM-PON architectures, this compatibility becomes essential rather than convenient.

Working Temperature

All specifications include temperature ranges, but real performance differences emerge at range extremes. FBT splitters function between -5°C and 75°C, suitable for most controlled environments. However, their fused taper design involves multiple materials with different thermal expansion coefficients. As temperatures cycle, these materials expand and contract at slightly different rates, gradually stressing the fusion points.

PLC splitters maintain stable performance from -40°C to 85°C due to their monolithic construction. The silica glass chip and fibers share similar thermal properties, minimizing internal stresses during temperature fluctuations. This robustness proves valuable in outdoor installations, rooftop deployments, and regions experiencing significant seasonal variations.

Signal Uniformity

Uniformity—the variation between output ports—affects network design more than many engineers anticipate. FBT splitters typically show 1-3dB variation between ports, requiring network designers to accommodate these differences with careful loss budgeting. This variation becomes more pronounced in higher split configurations, sometimes necessitating additional amplification or limiting distribution distances.

PLC splitters achieve remarkable consistency, typically within 0.5dB across all ports. This uniformity simplifies network design, allowing engineers to use consistent loss calculations regardless of which output port serves which customer. In dense deployments where every decibel matters, this predictability enables more efficient designs and better utilization of optical budgets.

Application Scenarios:

Urban FTTH Deployments: Density Demands Precision

Modern urban fiber deployments face unique challenges: high subscriber density, limited physical space, and expectations of multi-service delivery. PLC splitters address these challenges directly. Their compact size allows more splitting in confined street cabinets or building basements. A single 1×64 PLC module often replaces multiple FBT units, simplifying installation and reducing failure points.

The wavelength flexibility supports evolving service mixes. As urban networks deliver increasingly diverse combinations of residential internet, business connectivity, mobile backhaul, and IPTV, PLC splitters accommodate these services without modification. This adaptability extends equipment lifespan and protects infrastructure investments.

Rural and Sparse Deployments: Balancing Cost and Coverage

Rural networks prioritize different factors: longer distribution distances, lower subscriber density, and tighter initial budgets. Here, FBT splitters sometimes make economic sense for basic distribution. A 1×4 FBT splitter serving a small cluster of homes can represent the most cost-effective solution, particularly when future expansion seems unlikely.

However, rural environments often present harsh conditions—temperature extremes, limited maintenance access, and longer repair cycles. In these scenarios, PLC's reliability advantages sometimes justify higher initial costs. The decision requires careful analysis of total ownership costs rather than simple purchase price comparison.

Specialized Applications:

Certain applications benefit from FBT's flexibility. Cable television distribution often uses specific asymmetric splits optimized for trunk-and-branch architectures. Industrial monitoring systems sometimes require unusual split ratios matching sensor distributions. Research and testing setups value the ability to create custom configurations.

In these specialized cases, FBT technology provides solutions that standard PLC products cannot match. The key is recognizing these as exceptional rather than typical requirements—most commercial telecommunications deployments benefit from PLC standardization.

Cost Analysis:

Initial Purchase Price vs Long-Term Value

FBT splitters typically cost less for low split counts—sometimes 30-40% less than equivalent PLC units. This price advantage diminishes as split counts increase. Beyond 1×8 configurations, manufacturing complexities reduce FBT yield rates while PLC production efficiencies improve, often making PLC more economical for higher splits.

True cost analysis must consider installation expenses. PLC's compact size and integrated design often install faster, reducing labor costs. Their lighter weight and smaller packaging lower shipping expenses, particularly for international projects. These factors sometimes offset initial price differences before operation even begins.

Operational and Maintenance Costs

Network maintenance represents significant ongoing expense. FBT splitters' higher failure rates, particularly in challenging environments, generate service calls, replacement costs, and customer dissatisfaction. Each failure affects multiple subscribers, magnifying the business impact.

PLC splitters' reliability reduces these operational costs dramatically. Their typical 25-year service life often exceeds the depreciation schedule of surrounding equipment, effectively eliminating replacement costs during the network's primary operational period. This reliability becomes increasingly valuable as labor costs rise and skilled technicians become scarcer.

Upgrade and Evolution Costs

Networks rarely remain static. Capacity upgrades, technology transitions, and service expansions all require infrastructure adjustments. PLC splitters' wavelength compatibility facilitates smoother transitions—upgrading from GPON to XGS-PON often requires only endpoint equipment changes, not distribution network replacement.

FBT splitters' wavelength limitations sometimes force distribution network replacement during upgrades. These "forklift upgrades" involve significant costs beyond new equipment—service interruptions, installation labor, and potential structural modifications. Forward-looking network builders increasingly factor these transition costs into initial technology decisions.

Installation and Deployment Considerations

Physical Installation: Space and Handling

Installation environments vary dramatically—from climate-controlled data centers to outdoor poles in extreme climates. PLC splitters' compact, integrated designs simplify handling in challenging locations. Their sealed packages protect sensitive components during installation and throughout service life.

FBT splitters' larger size sometimes complicates installation in space-constrained locations. Their multiple fiber management requirements demand careful handling during installation to avoid microbends or stress on fusion points. These factors increase installation time and require more skilled technicians.

Documentation and Management

As networks grow, documentation and inventory management become increasingly important. PLC splitters' standardization simplifies both activities. Model numbers clearly indicate configurations, and consistent performance allows standardized documentation approaches.

FBT splitters' custom configurations require more detailed documentation. Each unique split ratio needs precise recording for future reference during troubleshooting or expansion. This administrative overhead, while manageable for small deployments, becomes burdensome in large, complex networks.

Future Trends:

PLC technology continues evolving toward higher integration. We now see splitters incorporating additional functions—wavelength combining, monitoring taps, and even basic switching capabilities. This integration follows the broader trend in fiber optics toward multifunctional, space-efficient components.

Manufacturing improvements steadily reduce PLC costs while enhancing performance. New packaging approaches improve thermal characteristics, and advanced waveguide designs reduce losses further. These incremental improvements strengthen PLC's position as the default choice for most applications.

FBT technology will likely maintain positions in specialized applications where customization outweighs standardization benefits. The manufacturing process continues improving with better process control and automation, enhancing consistency even within customized production runs.

However, FBT's share of mainstream telecommunications applications will probably continue declining as PLC prices decrease and performance advantages become more pronounced. This mirrors broader technology adoption patterns where standardized solutions eventually dominate except for highly specialized needs.

Decision Framework: Making Your Choice

Evaluate Your Specific Context

Begin with honest assessment of your project's unique characteristics:

Subscriber density and distribution pattern

Physical environment and temperature ranges

Available installation space and access conditions

Technical staff capabilities and maintenance approach

Growth expectations and upgrade plans

Consider the Full Timeline

Look beyond initial deployment to the complete lifecycle:

Installation phase: How quickly must deployment occur?

Operational phase: What reliability standards must you meet?

Evolution phase: How might needs change in 5-10 years?

End-of-life: What replacement or recycling considerations apply?

Calculate Total Cost of Ownership

Develop comprehensive cost models including:

Equipment purchase costs

Shipping and import considerations

Installation labor and materials

Ongoing maintenance and support

Potential upgrade or replacement expenses

Business impact of outages or performance issues

Test Before Committing

Whenever possible, obtain samples for real-world testing:

Evaluate actual performance in your environment

Assess installation experience with your team

Verify compatibility with surrounding components

Confirm documentation and support quality

Practical Recommendations

For New Greenfield Deployments

Choose PLC splitters for virtually all new telecommunications deployments. Their performance advantages, reliability, and future compatibility justify any modest price premium. Select split ratios that accommodate reasonable growth while maintaining performance margins.

For Network Expansions

Match new additions to existing infrastructure when expanding networks. If existing infrastructure uses FBT technology and performs adequately, continuing with FBT for expansions maintains consistency. However, consider PLC for new distribution legs or when existing FBT equipment nears replacement.

For Technology Transitions

When upgrading networks or changing architectures, view this as an opportunity to transition toward PLC technology. The long-term benefits typically justify the transition costs. Plan these transitions during natural upgrade cycles to minimize disruption.

For Specialized Applications

Evaluate FBT technology specifically for applications requiring:

Truly custom split ratios unavailable in standard PLC configurations

Rapid prototyping or temporary installations

Environments where lowest initial cost overrides other considerations

Legacy compatibility with existing specialized equipment

Conclusion: Building for Today and Tomorrow

The PLC versus FBT decision represents more than component selection—it reflects fundamental approaches to network building. PLC technology supports standardized, scalable, future-ready networks. FBT technology offers customization where standardization doesn't fit.

As fiber networks become increasingly critical infrastructure, reliability and evolvability grow in importance. PLC splitters deliver both, explaining their growing dominance in global deployments. Their slightly higher initial investment typically returns many times over in operational savings and upgrade flexibility.

Network builders facing this decision should consider not just today's requirements, but tomorrow's possibilities. The right choice today creates foundations supporting services and technologies we haven't yet imagined. In that context, PLC technology's flexibility and reliability make it the prudent choice for most network builders planning for long-term success.
