What is an Optical Splitter? The Ultimate Guide to Fiber Optic Splitters

Introduction

Fiber optic networks connect the world. They carry data at the speed of light. But have you ever wondered how one fiber cable serves multiple homes? The answer lies in a small device. We call it an Optical Splitter.

This device is the heart of Passive Optical Networks (PON). It allows service providers to save money. It helps them distribute bandwidth efficiently. In this article, we explain the definition, working principles, types, and selection tips for optical splitters.

What is an Optical Splitter?

An Optical Splitter (also known as a fiber optic splitter or beam splitter) is a passive optical power management device. “Passive” means it needs no electricity. It requires no power source to work.

Imagine a water pipe. One large pipe brings water into a building. Then, smaller pipes split that water to different rooms. An optical splitter does the same thing with light. It takes one optical input signal and divides it into multiple output signals.

Key Features:

No Electronics: It contains no electronic components.

Cost-Effective: It reduces the amount of fiber cable needed.

High Reliability: Without power, fewer things can break.

How Does an Optical Splitter Work?

The working principle is based on light physics. When light travels in a single-mode fiber, the core does not completely confine the light energy. A small amount of energy travels through the cladding (the outer layer).

If two fiber cores come close enough together, the light wave can shift from one fiber to the other. Engineers use this technique to redistribute the optical signal.

Generally, a splitter has specific split ratios. For example, a 1x4 splitter takes one input and creates four outputs. The device distributes the light energy evenly or unevenly among these outputs.

Types of Optical Splitters: FBT vs. PLC

This is the most critical part of choosing a splitter. Two main technologies exist in the market: FBT (Fused Biconic Taper) and PLC (Planar Lightwave Circuit). They differ in manufacturing and performance.

1. FBT Splitter (Fused Biconic Taper)

Manufacturers create FBT splitters by welding two fibers together. They stretch the fibers under heat. This is a traditional technology.

Pros: Low cost for small split counts (like 1x2).

Cons: It supports limited wavelengths. It has higher signal loss over long distances.

Best Use: Simple monitoring networks or small cable TV setups.

2. PLC Splitter (Planar Lightwave Circuit)

PLC splitters use micro-optical chips. This technology is similar to manufacturing semiconductors. A silica glass waveguide circuit splits the light.

Pros: Very stable across all wavelengths (1260-1650nm). Supports high split ratios (up to 1x64 or 1x128). Compact size.

Cons: Higher manufacturing cost than FBT.

Best Use: FTTx (Fiber to the Home), PON networks, and large data centers.

Comparison Summary

Feature                   FBT Splitter              PLC Splitter

Operating Wavelength  Limited (850/1310/1550nm)      Full Spectrum (1260-1650nm)

Split Ratio               Small (1:2, 1:4)              Large (1:64, 1:128)

Cost                      Lower                             Higher

Size                   Larger                    Compact (Smaller)

Uniformity               Poor                      Excellent

Why Are Splitters Crucial for PON Networks?

Passive Optical Networks (PON) rely entirely on splitters. In a typical FTTH (Fiber to the Home) scenario, the Internet Service Provider (ISP) installs an OLT (Optical Line Terminal) at the central office.

They do not run a separate fiber to every single house. That would cost too much. Instead, they run one single fiber to a neighborhood. Then, a PLC Splitter divides that signal to serve 32 or 64 homes.

Benefits for ISPs:

Reduced Fiber Usage: Less cabling means lower material costs.

Easy Maintenance: No active electronic parts in the street cabinets means fewer repairs.

Scalability: Adding new users is simple.

Key Specifications Explained: What to Look For

When you buy an optical splitter, you must understand the technical specs. These numbers determine the quality of your network.

1. Insertion Loss (IL)

This measures how much signal power you lose when the light passes through the splitter. Lower numbers are better.

Example: A good 1x8 PLC splitter usually has an insertion loss of roughly 10.5 dB.

2. Return Loss (RL)

This measures how much light reflects back to the source. Reflections cause noise. You want high Return Loss numbers.

Standard: APC connectors usually offer RL > 60dB.

3. Uniformity

This ensures every output port receives the same amount of light. PLC splitters offer superior uniformity compared to FBT splitters.

Different Form Factors of Optical Splitters

Splitters come in various shapes to fit different environments.

Bare Fiber Splitter: No connectors. Used inside splice closures. Smallest size.

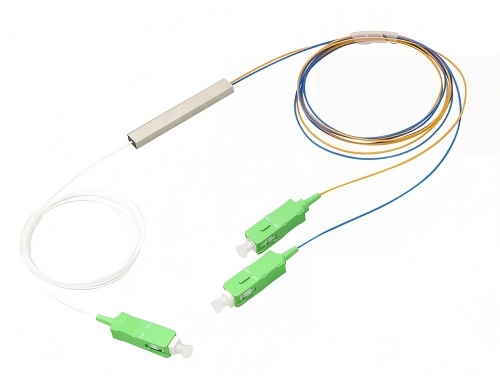

Blockless (Mini) Splitter: Steel tube packaging. Includes fiber connectors. Very popular.

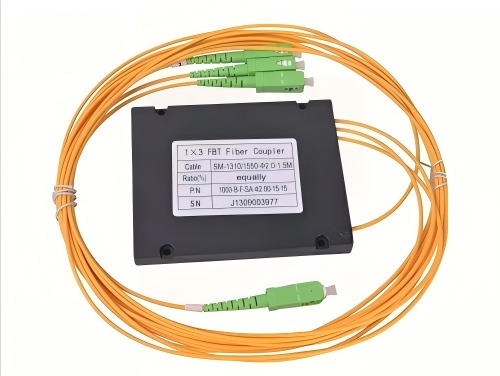

ABS Module Splitter: Plastic box protection. Stronger physical durability. Used in racks.

Rack Mount Splitter: Fits standard 19-inch server racks. Ideal for central offices.

How to Install an Optical Splitter

Installation requires care. Dust is the enemy of fiber optics.

Step-by-Step Guide:

Inspect the Connectors: Check for scratches or dirt.

Clean the Fiber Ends: Use an alcohol wipe or a fiber cleaning pen. Do this every time.

Connect Input/Output: Connect the main feed line to the input. Connect the distribution fibers to the outputs.

Test the Signal: Use an Optical Power Meter to verify the light levels at the output.

Cable Management: Avoid bending the fibers too tightly. Sharp bends break the glass.

Troubleshooting Common Issues

If your network speed drops, the splitter might be the cause.

High Insertion Loss: Usually caused by dirty connectors. Clean them immediately.

No Signal: Check for a broken fiber core inside the cable jacket. Use a Visual Fault Locator (VFL).

Unstable Signal: Check the connector type. Do not mix APC (Green) and UPC (Blue) connectors. This causes air gaps.

Future Trends in Optical Splitting

As 5G and IoT (Internet of Things) grow, demand for data increases.

Higher Split Ratios: Engineers are developing 1x256 splitters for ultra-dense networks.

Lower Loss Materials: New glass materials reduce signal loss even further.

Integrated Modules: Splitters are combining with WDM (Wavelength Division Multiplexing) devices into single modules.

Conclusion

Optical splitters are the unsung heroes of the internet age. They allow us to share high-speed fiber connections affordably. Whether you choose an FBT splitter for a small project or a PLC splitter for a massive FTTx network, understanding the specs is vital.

Always prioritize quality. A cheap splitter can ruin the performance of an expensive network. Keep your connectors clean, respect the bend radius, and choose the right split ratio for your needs.

Ready to upgrade your network? Check out our latest range of high-performance PLC splitters today.

FAQ (Frequently Asked Questions)

Q: Can I use an optical splitter for multimode fiber?

A: Yes, but you must buy a splitter specifically designed for multimode fiber. Most standard splitters are for single-mode.

Q: Does splitting the signal reduce internet speed?

A: It shares the total bandwidth. If many users download large files simultaneously, individual speeds might drop. However, fiber capacity is usually huge enough for normal usage.

Q: What is the difference between APC and UPC connectors on a splitter?

A: APC (Green) has an angled face to reduce reflection. UPC (Blue) has a flat face. APC is better for video and high-speed data.

Q: What is the maximum split ratio?

A: Commonly, GPON networks use up to 1:64. XG-PON can support up to 1:128.
