What is fiber optic splitter?

Introduction to fiber optic splitter

An PLC splitter, also known as a beam splitter or fiber optic splitter, is a passive device used in fiber optic networks to divide or distribute an incoming optical signal into multiple output channels‌. It plays a vital role in passive optical networks (PONs), enabling efficient signal distribution without requiring external power‌. By splitting light signals proportionally, optical splitters reduce infrastructure costs while supporting scalable connectivity for applications like FTTH (Fiber to the Home) and data centers‌.

How does the fiber optic splitter work?

Optical splitters rely on ‌waveguide interference‌ to split light signals. When light enters the device, it travels through optical waveguides—microscopic structures that guide light via total internal reflection. The interaction between different ‌transmission modes‌ (light distribution patterns) within the waveguides creates interference, directing the signal to specific output ports‌.

For example:

• Y-Branch Splitters‌: Use symmetrical waveguide geometry to split light into two paths‌.

• 3 dB Couplers‌: Divide input power equally between two outputs using parallel waveguides‌.

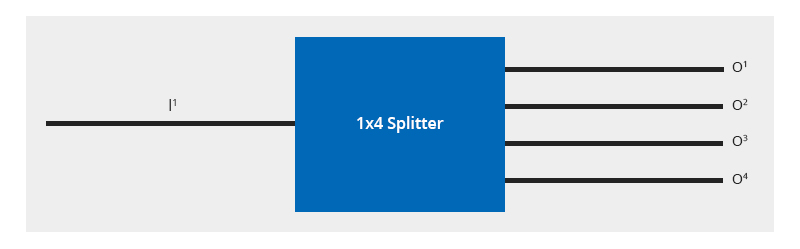

The ‌split ratio‌ (e.g., 1:8 or 1:32) determines how power is distributed among outputs. Advanced splitters minimize ‌insertion loss‌ (signal attenuation) to maintain data integrity‌.

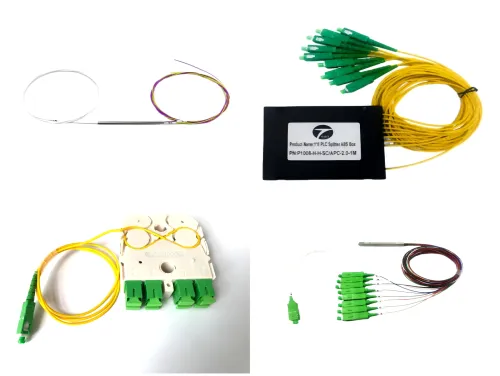

Fiber optic splitter types

Fiber optic cable splitter are categorized by manufacturing technology and design:

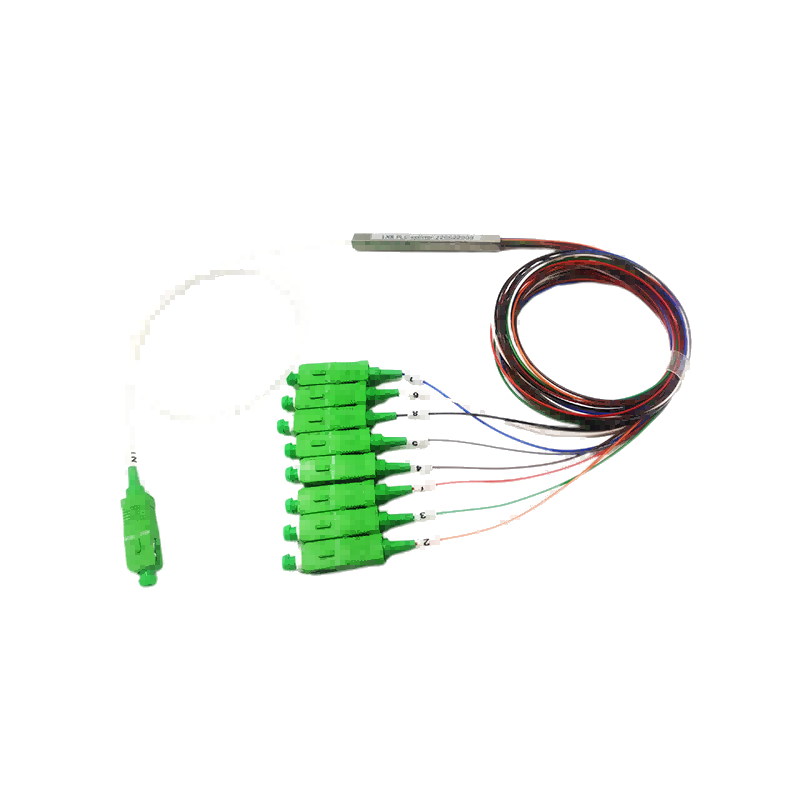

1‌.PLC Splitters (Planar Lightwave Circuit)‌:Built using semiconductor lithography to create compact, high-precision chips‌.

•  Support wavelengths of 1260–1650 nm, making them ideal for PON standards like GPON and EPON‌.

• Scalable up to 1:64 split ratios‌.

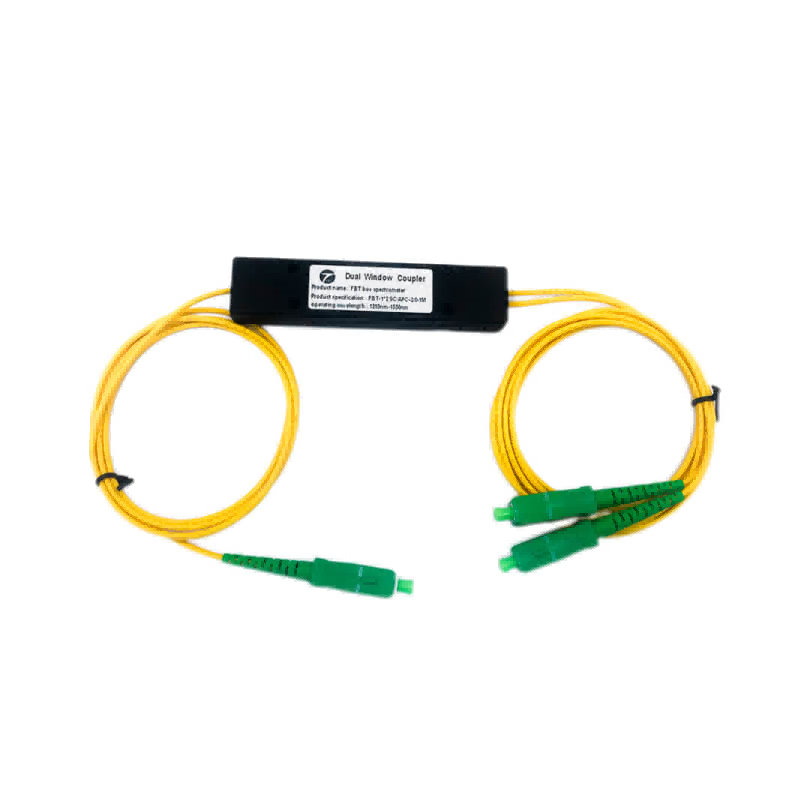

2‌.FBT Splitters (Fused Biconical Taper)‌，it is also named fiber coupler splitter.

• Made by fusing and stretching multiple fibers, offering lower costs‌.

• Limited to specific wavelengths (850/1310/1550 nm) and smaller splits (up to 1:32)‌.

• Commonly used in CATV systems and small-scale networks‌28.

‌Form Factor Variations‌

•  ‌Mini Splitters‌: Compact designs for space-constrained installations‌.

• ·Rack-Mounted Splitters‌: Industrial-grade units for data centers‌.

Key Applications in Modern Networks

Optical splitters are integral to:

• FTTH Networks‌: Distribute signals from a single backbone fiber to hundreds of households, reducing deployment costs‌.

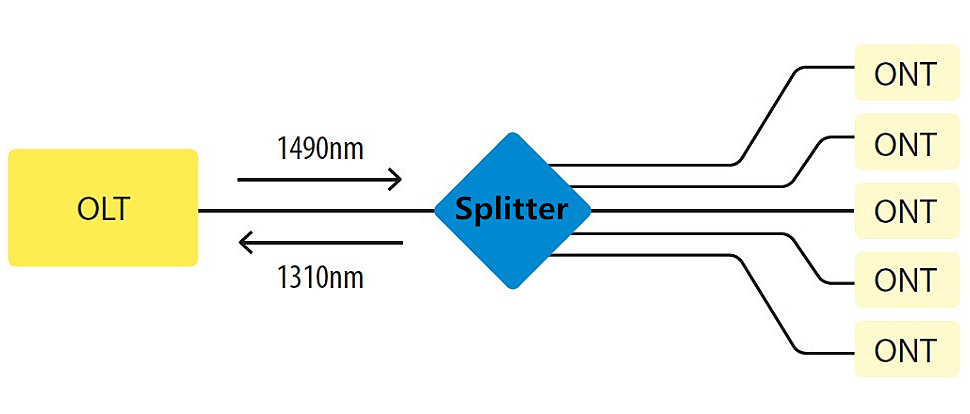

• PON Architectures‌: Connect multiple optical network units (ONUs) to a central office terminal (OLT) in GPON/EPON systems‌.

• Data Centers‌: Enable efficient signal distribution for high-speed data transmission‌.

• Industrial Sensors and Medical Equipment‌: Provide reliable signal splitting for monitoring and diagnostic systems‌.

Technical Specifications to Consider

When selecting an optical splitter, evaluate:

•  ‌Wavelength Range‌: 850 nm (multimode) or 1310/1550 nm (single-mode)‌.

• Insertion Loss‌: ≤0.3 dB for PLC splitters‌.

• Split Ratio‌: Choose 1:2 to 1:64 based on network size‌.

• Operating Temperature‌: -40°C to +85°C for outdoor use‌.

To more learn about fiber optic splitter,you can check the  the articles “How much do you know about fiber optic splitter?”  and “What is the difference between a PLC splitter and an FBT splitter?"

Why Choose optical splitter fiber?

Planar Lightwave Circuit PLC splitter are indispensable for building cost-effective, scalable fiber networks. Their passive design ensures reliability, while advancements in PLC and fiber coupler splitter FBT technologies cater to diverse bandwidth and budget needs‌. For telecom providers and enterprises, integrating high-quality splitters enhances network performance and future-proofs infrastructure.

By understanding their types, applications, and technical parameters, businesses can make informed decisions to optimize connectivity and drive digital transformation.
