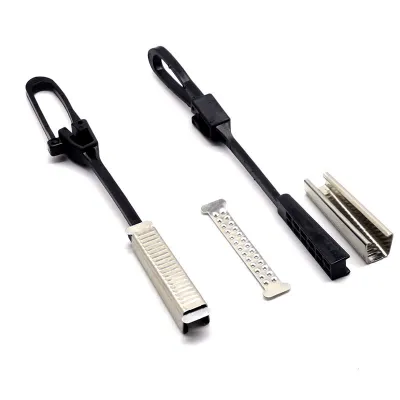

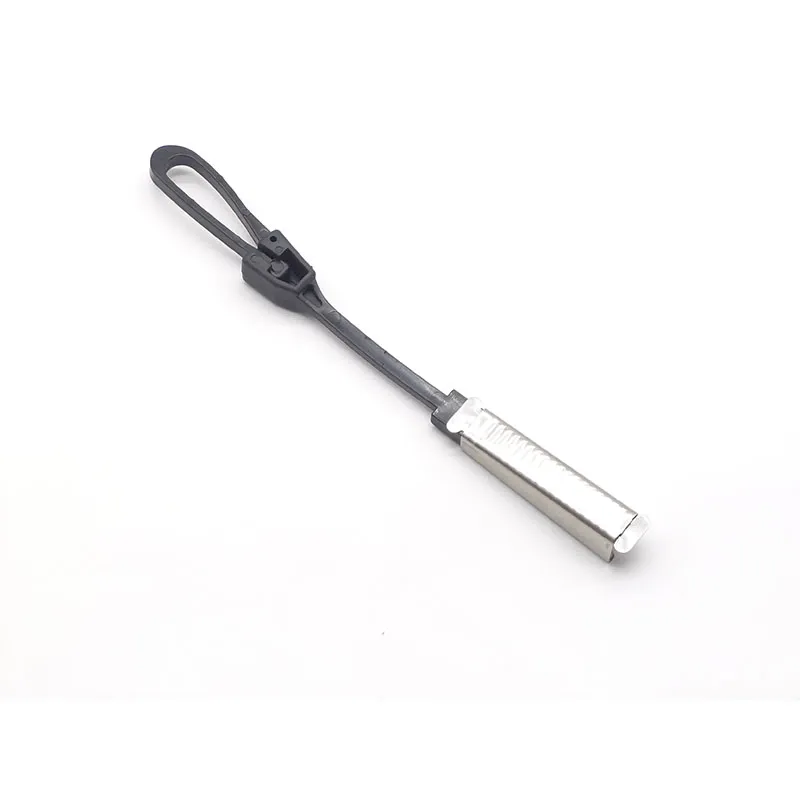

Drop wire clamp for aerial cable ODWAC-23Y is composed of a body, a wedge and a shim. A solid wire bail is crimped to the wedge. All parts are made out of stainless steel. All the assemblies passed the tensile tests, operation experience with temperatures ranging from -60 °C up to +60 °C test, temperature-cycling test.
Drop Wire Clamps for aerial cable ODWAC-23Y are designed to reduce the strain of sagging overhead Aerial Cables. This type of clamp needs to be secured to a pole or building using any hook or clamp that fits the large steel bailwire. This clamp uses a wire wrapping technique to secure the cable in the aluminum body. It fits 23 AWG cable with a messenger wire. Cable not included.
Share:
Key Features Drop wire clamp for aerial cable ODWAC-23Y:
- Place the cable in the clamp body.
-Place the shim in the clamp body over the cable, the grip side in contact with the cable.
- Insert the wedge through the front of the body and pull to secure the cable.
Technical specifications
Drop wire clamp for aerial cable Technical specifications:
| Parameter | Value |
| type of reinforcement | Anchor |
| Cable Type | flat |
| Workload | 1,0 kN |
| Clamped cable dimensions | 5×13 mm |
| Distance between supports | ≤ 50 m |
| Case material | stainless steel |
| Loop material | High-strength UV-resistant polymer |
| Operating temperature | from minus 40 °С to 50 °С |
| Product Dimensions (L x W x H) | 220х25х20 mm |
| Product volume | 0,00011 m3 |
| Product weight ±10% | 0.050 kg |
