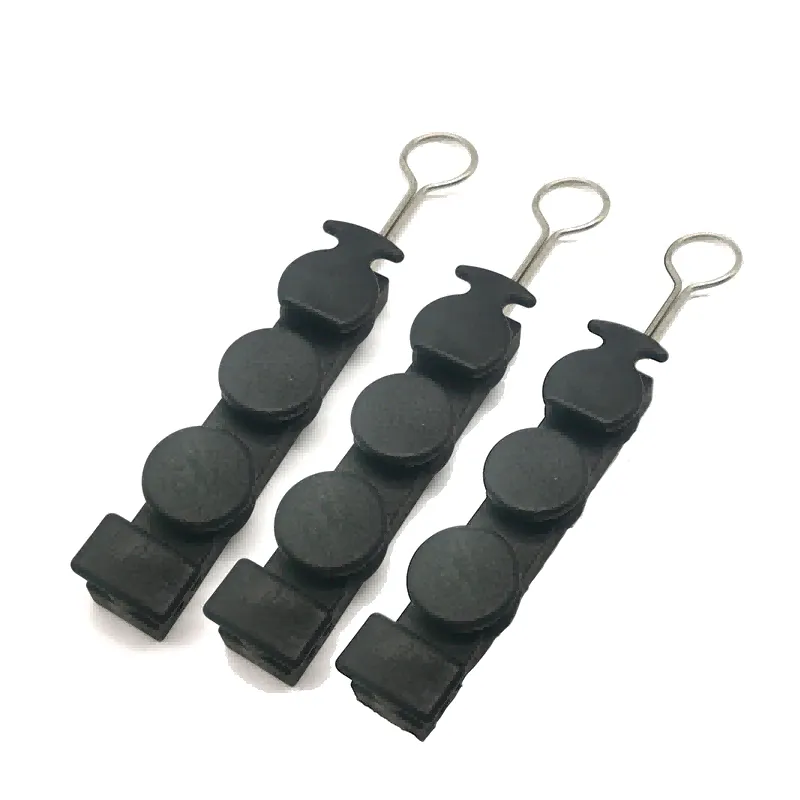

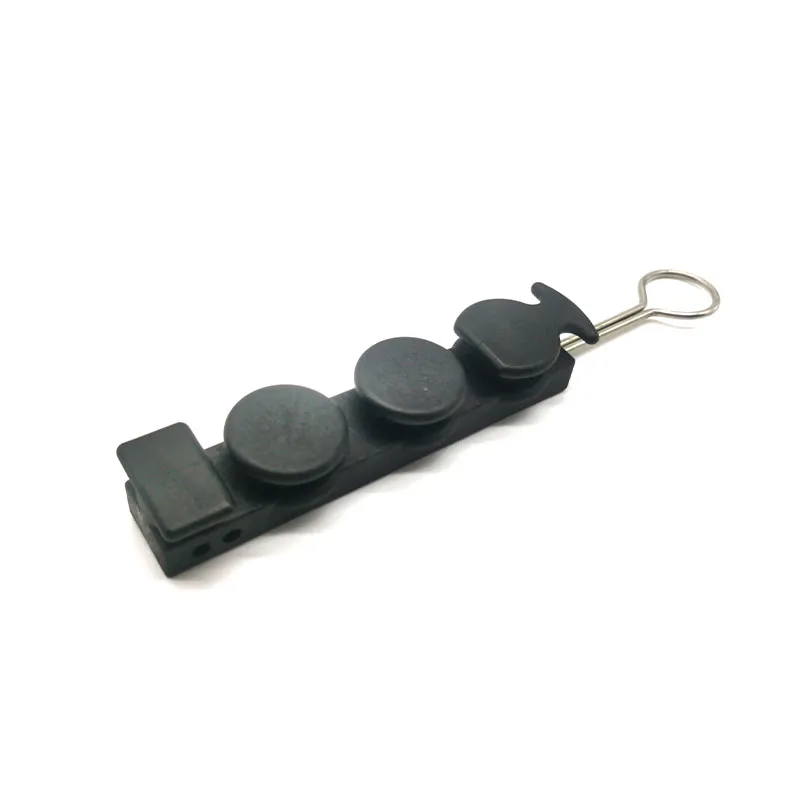

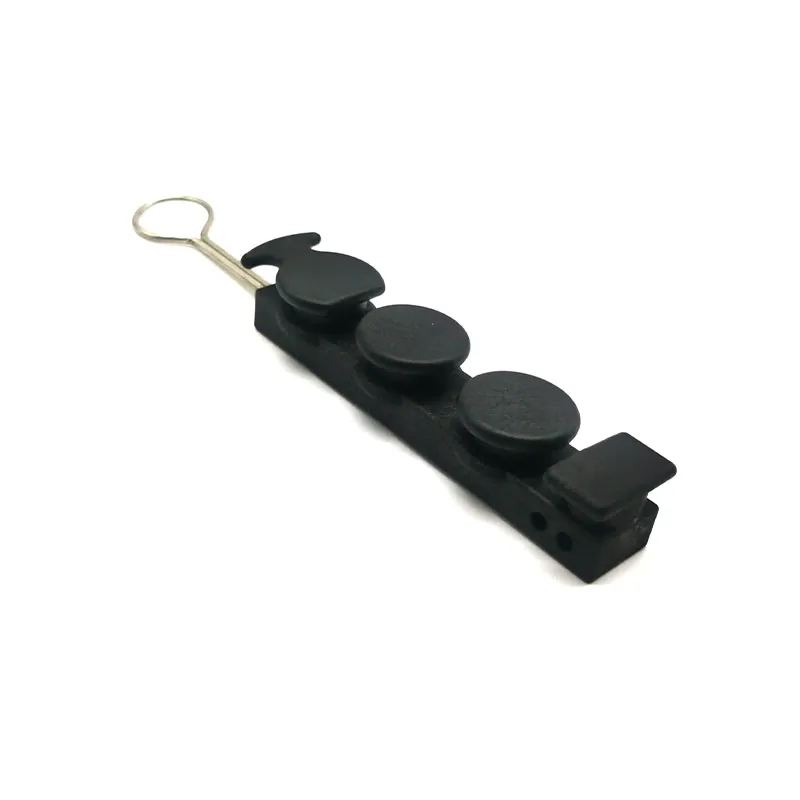

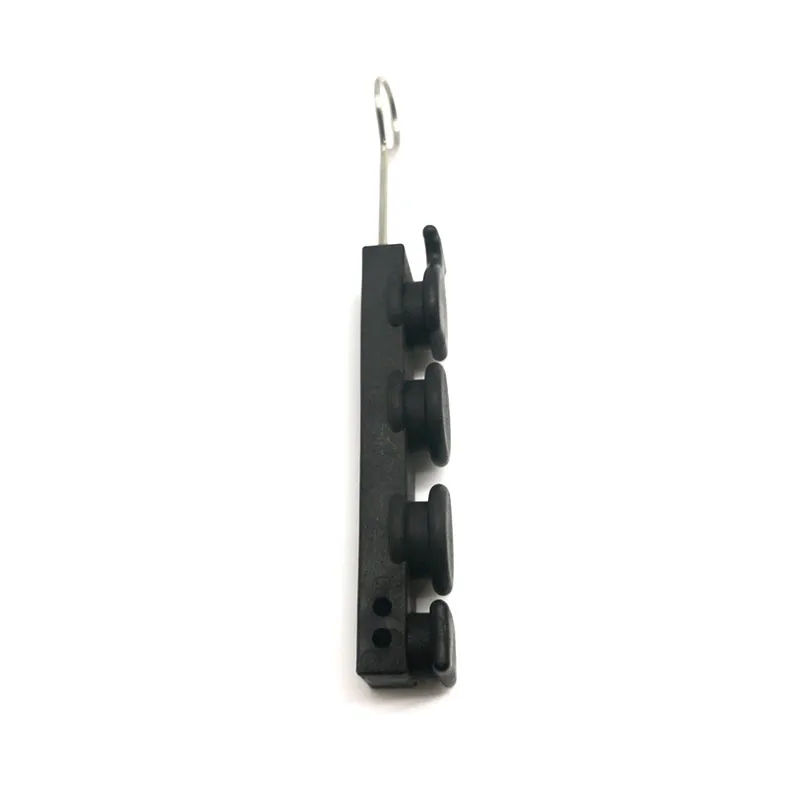

S type Drop Wire Clamp is also called plastic drop wire clamp. It is one types of drop cable clamps, which is widely used for securing drop wire on various house attachments . The prominent advantage of insulated drop wire clamp is that it can prevent electrical surges from reaching the customer premises. The working load on support wire is effectively reduced by the insulated drop wire clamp . It's characterized by good corrosion resistant performance, good insulating property and long life service.
Share:
SS type fiber Optic Drop Wire Clamp OPT-A13 is used for FTTH drop cable.
Ring Fitting Material:Stainless Steel
Base Material：ABS
Usage：Drop cable
Structure：S type
Technical specifications
Technical specifications of Fiber Optic Drop Wire Clamp：
| Parameter | Value |
| Supported cable | FTTH and other drop cables in diameter Φ2-10mm |
| Product size(mm) | 180*20*25 |
| Material | PA6 +201SS |
| Max tensile load, kN | 1 KN |
| Weight, KG | 0.067 |
| Ctn | 38*30*30cm |
| Qty/ctn | 200 |
| Gross/ctn,KG | 14 |
XI’AN OPT Communication Co.,Ltd is one of the largest and reliable Clamp manufacturers and suppliers with rich experience in China. OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can customized as your requirement.Also, free sample is also available if necessary.
