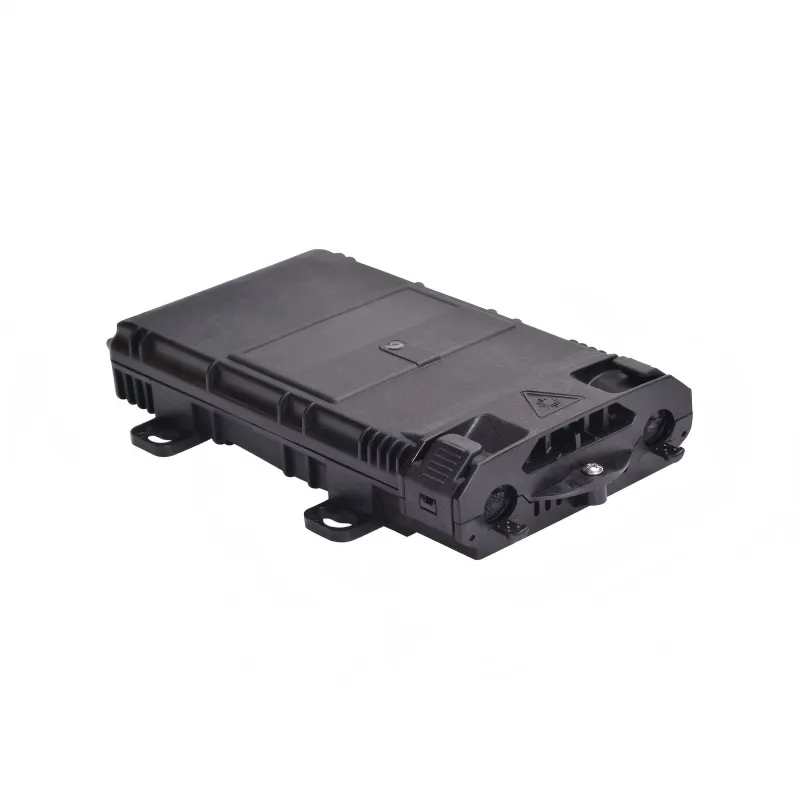

Fiber termination box OPT-H08 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
8 port fiber termination box intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
Dimension:220mm*153mm*52mm
Capacity of FOSC:Bunchy:12 cores
Max ratio: 1:8
Cable entry ports:IN 2 OUT 8
Diameter of Cable:Φ13mm
Assemmbling method:pole, wall-mounting, wellhole
Protection level:IP67
Outter carton size:490*330*335mm
Inner carton size:238*158*60mm
number of Packing:20 pcs/ctn
weight:0.605kg /pcs
