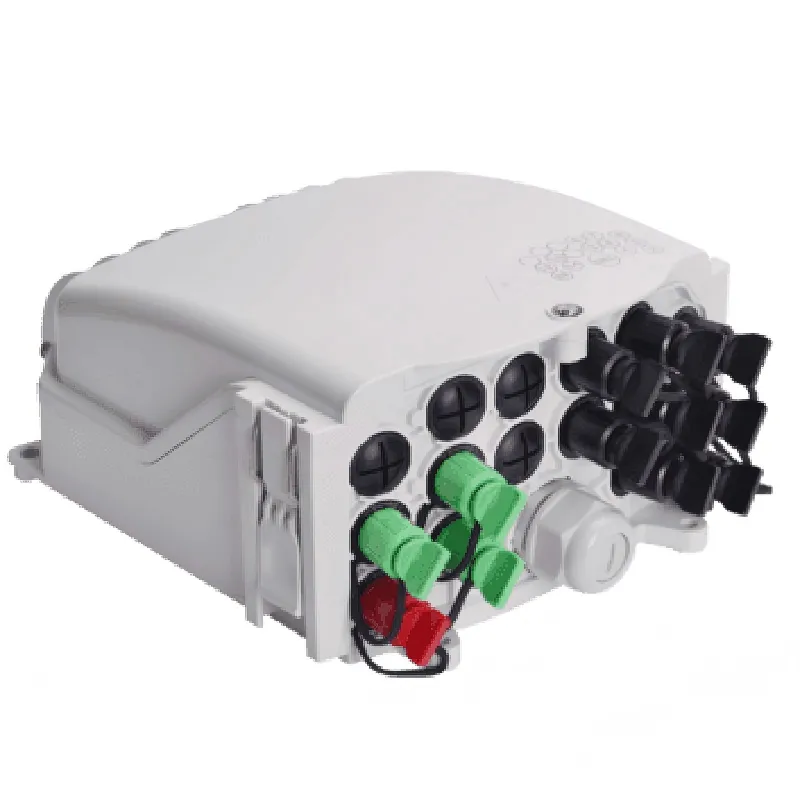

Fiber Distribution Box OPT-GFS-16Y is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

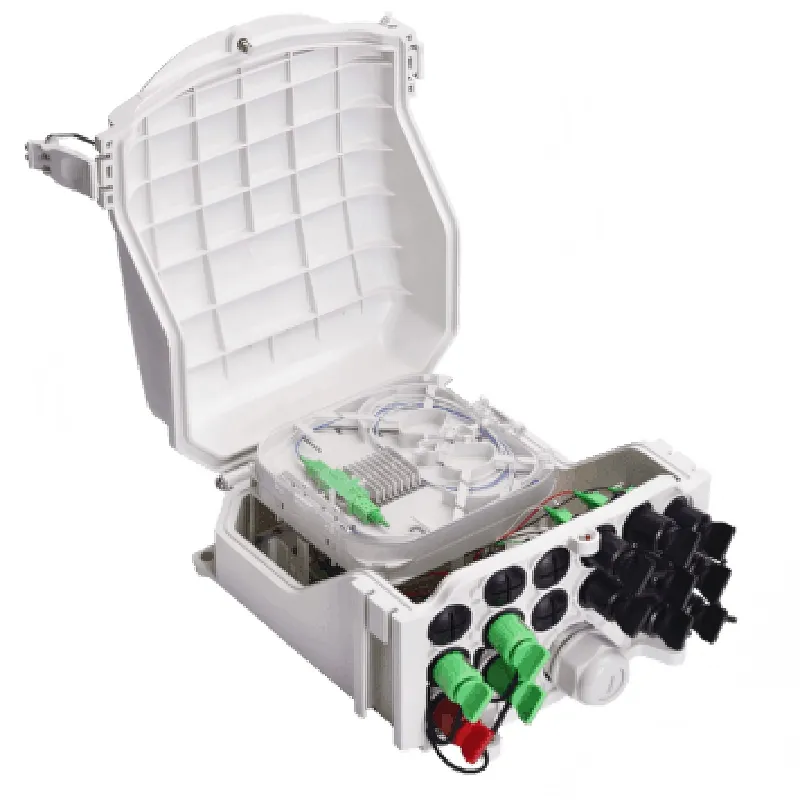

Fiber Distribution Box OPT-GFS-16Y intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-GFS-16Y |
| Protection level | IP65 |
| Dimension | 260mm×213mm×116mm |
| Outter carton size | 550×420×420mm |
| Capacity of FOSC ratio | Bunchy:28(cores) 1 ×1:16 or 2 ×1:8 |
| Inner carton size | 275×220×130mm |
| Cable Capacity,Branch | 1 pieces - ∅16mm |
| Diameter of cable | ∅5mm～∅16mm |
| Number of packing | 12 pcs/ctn |
| Cable Capacity, Drop | 16 pieces 2mm×3mm , 5mm， 5mm×3mm， 5.2mm |
| Weight | 1.7kg/pcs |
