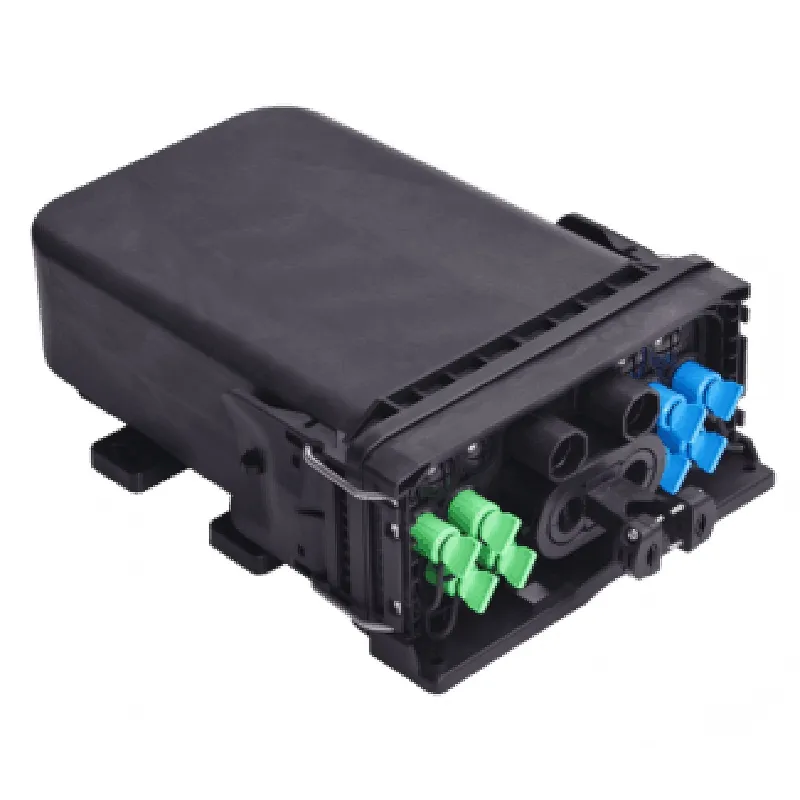

Fiber Distribution Box OPT-GFS-F312 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber Distribution Box OPT-GFS-F312 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-GFS-F312 |
| Protection level | IP68 |
| Dimension | 401mm×263mm×121mm |
| Outter carton size | 550×420×420m |
| Capacity of FOSC ratio | Bunchy:62(cores) 1 ×1:8 or 3 × 1:4 |
| Inner carton size | 410×265×130mm |
| Cable Capacity,Branch | 2 pieces - ∅13mm,2 pieces - ∅16mm |
| Diameter of cable | ∅7mm～∅16mm |
| Number of packing | 6 pcs/ctn |
| Cable Capacity, Drop | 8 pieces ,2mm×3mm ,5mm, 5mm×3mm,5.2mm |
| Weight | 1.7kg/pcs |
