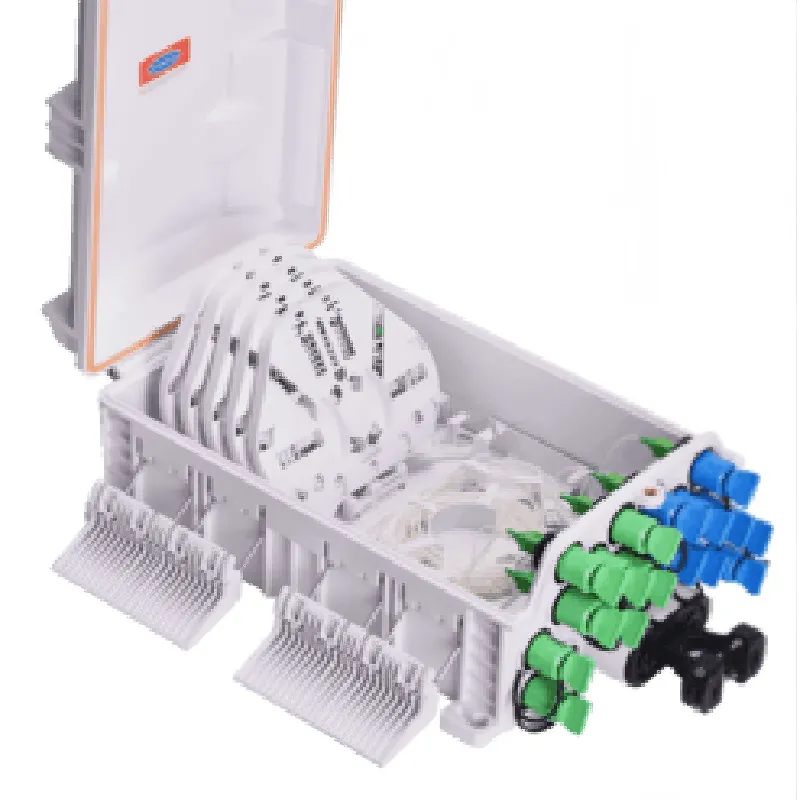

Fiber Distribution Box OPT-GFS-F316 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber Distribution Box OPT-GFS-F316 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-GFS-F316 |
| Protection level | IP66 |
| Dimension | 391mm×239mm×127mm |
| Outter carton size | 515×415×465mm |
| Capacity of FOSC ratio | Bunchy:60(cores) 1 × 1:16 or 2 × 1:8 |
| Inner carton size | 405×250×145mm |
| Cable Capacity,Branch | 4 pieces - ∅13mm |
| Diameter of cable | ∅7mm～∅13mm |
| Number of packing | 6 pcs/ctn |
| Cable Capacity, Drop | 16 pieces 2mm×3mm , 5mm， 5mm×3mm，5.2mm |
| Weight | 1.7kg/pcs |
