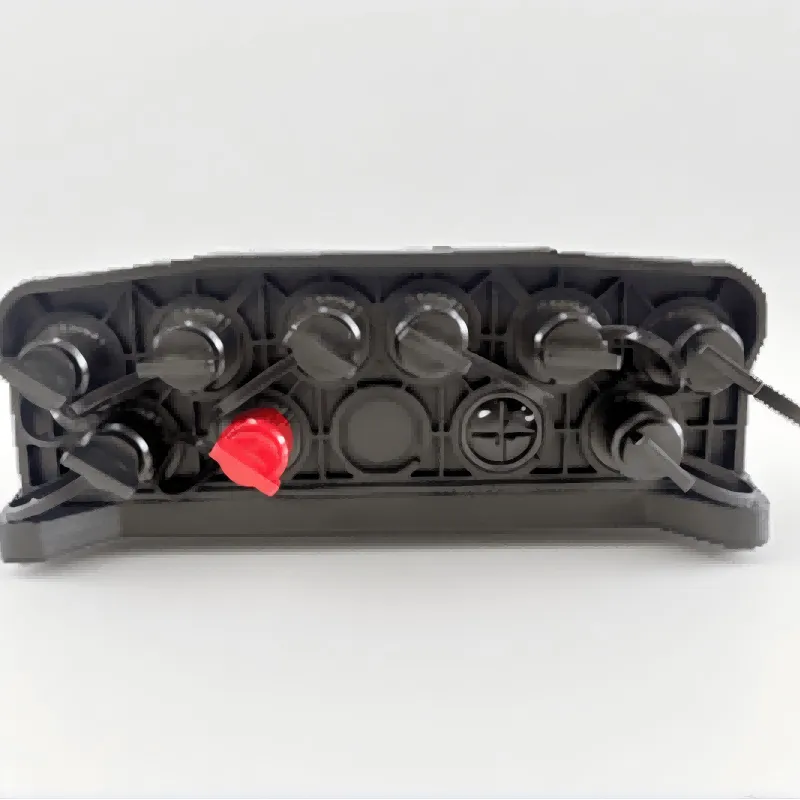

Fiber Distribution Box OPT-GTS-10B is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber Distribution Box OPT-GTS-10B intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-GTS-10B |
| Protection level | IP68 |
| Dimension | 187mm×219mm×79mm |
| Outter carton size | 850×580×300mm |
| Capacity of FOSC ratio | 1 × 1:9 |
| Inner carton size | 280×280×163mm |
| Reinforced adapter | 10 |
| Number of packing | 10 pcs/ctn |
| Cable Capacity, Drop | 2mm×3mm , 5mm， 5mm×3mm， 5.2mm |
| Weight | 1.7kg/pcs |
