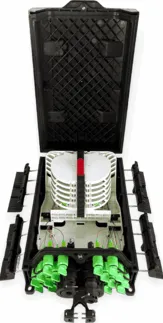

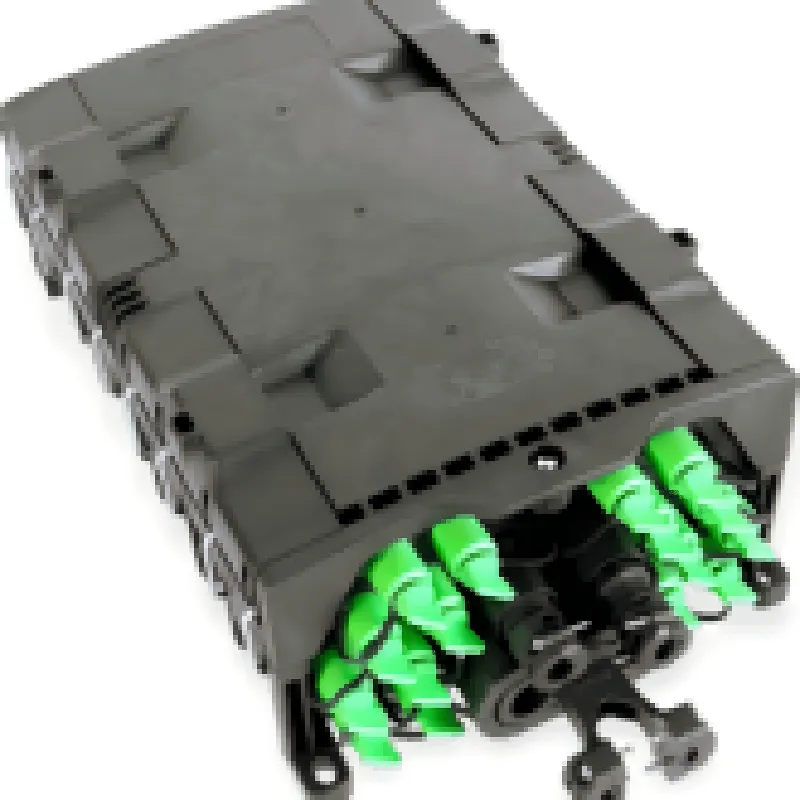

Fiber Distribution Box OPT-H324 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber Distribution Box OPT-H324 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-GTS-16-4 |
| Protection level | IP68 |
| Dimension | 430mm×234mm×141mm |
| Outter carton size | 495×445×475mm |
| Capacity of FOSC ratio | Bunchy:216(cores) 1×1:16 or 2×1:8 |
| Inner carton size | 435×240×148mm |
| Cable Capacity,Branch | 2 pieces - ∅13mm,2 pieces - ∅16mm |
| Diameter of cable | ∅7mm～∅16mm |
| Number of packing | 6 pcs/ctn |
| Cable Capacity, Drop | 16 pieces 2mm×3mm , 5mm， 5mm×3mm，5.2mm |
| Weight | 2.5 kg/pcs |
Inquiry
