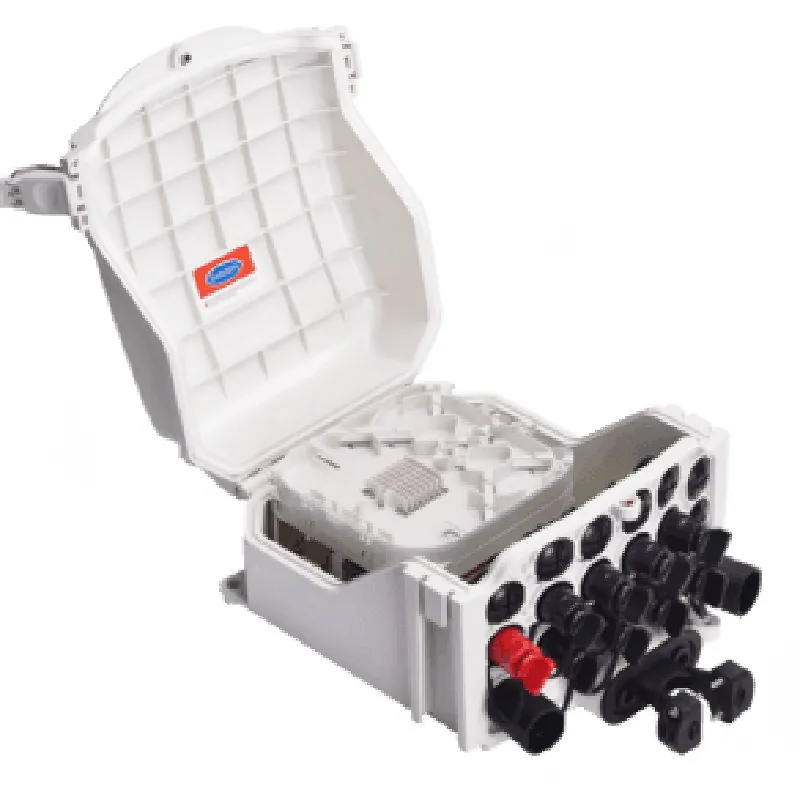

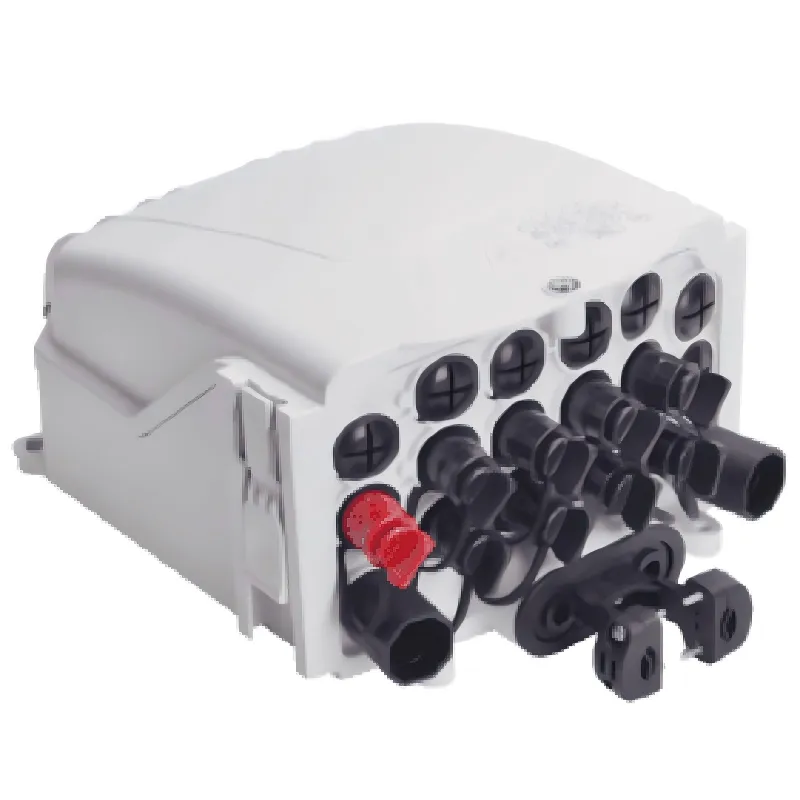

Fiber Distribution Box OPT-GTS-16-7 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber Distribution Box OPT-GTS-16-7 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-GTS-16-7 |
| Protection level | IP65 |
| Dimension | 294mm×214mm×129mm |
| Outter carton size | 625×455×465mm |
| Capacity of FOSC ratio | Bunchy:28(cores) 1 × 1:16 × 1:8 |
| Inner carton size | 305×220×145mm |
| Cable Capacity,Branch | 4 pieces - ∅13mm |
| Diameter of cable | ∅7mm～∅13mm |
| Number of packing | 12 pcs/ctn |
| Cable Capacity, Drop | 16 pieces ,2mm×3mm ,5mm, 5mm×3mm,5.2mm |
| Weight | 1.7kg/pcs |
