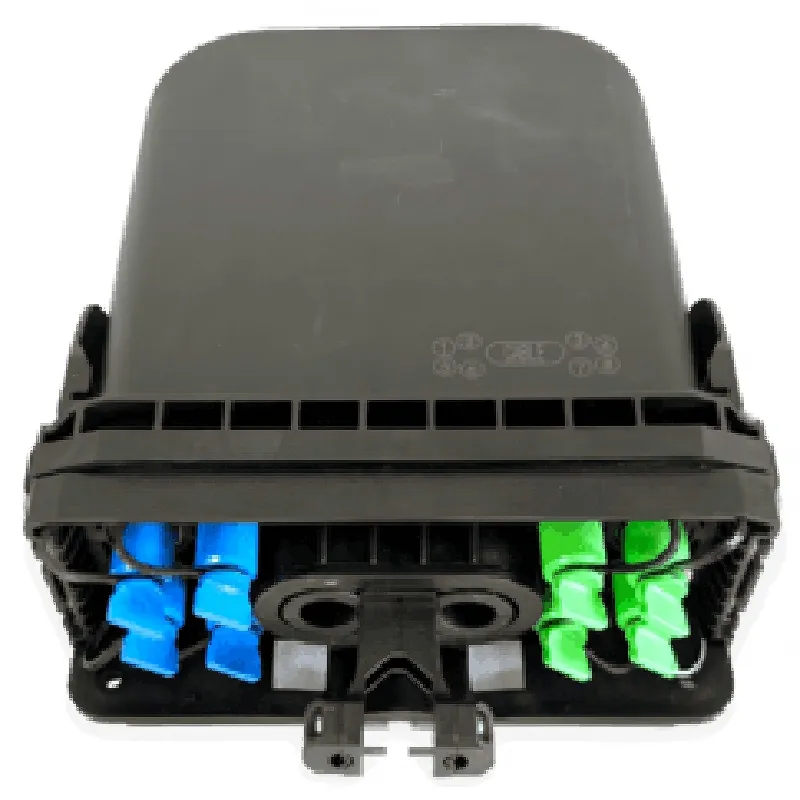

Fiber Distribution Box OPT-GTS-8-2 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

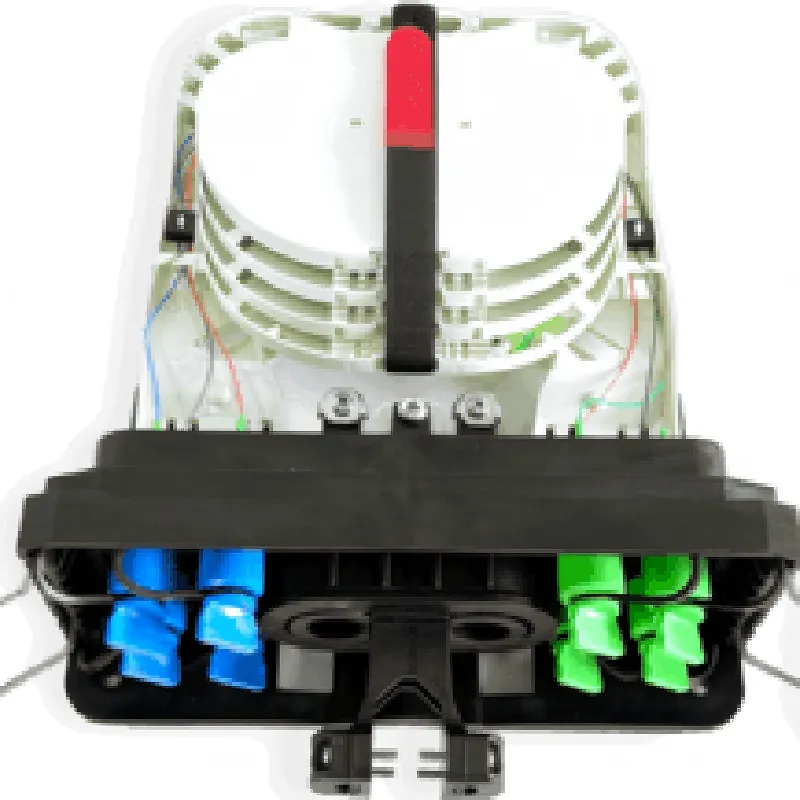

Fiber Distribution Box OPT-GTS-8-2 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-GTS-8-2 |
| Protection level | IP68 |
| Dimension | 300mm×235mm×92mm |
| Outter carton size | 625mm×495mm×360mm |
| Capacity of FOSC ratio | Bunchy:84(cores) 1 × 1:8 or 2× 1:4 |
| Inner carton size | 305mm×240mm×110mm |
| Cable Capacity,Branch | 2 pieces - ∅18mm |
| Diameter of cable | ∅7mm～∅13mm |
| Number of packing | 15 pcs/ctn |
| Cable Capacity, Drop | 8 pieces ,2mm×3mm ,5mm,5mm×3mm,5.2mm |
| Weight | 1.7kg/pcs |
