Fiber optic termination box,also called Fiber Optic Terminal Box, is great for joining fiber optic cable and pigtails. They provide safe and secure housing that protects fiber optic splices and enable easy distribution. Fibertronics termination boxes are primarily used in the fiber communications industry and network equipment rooms.

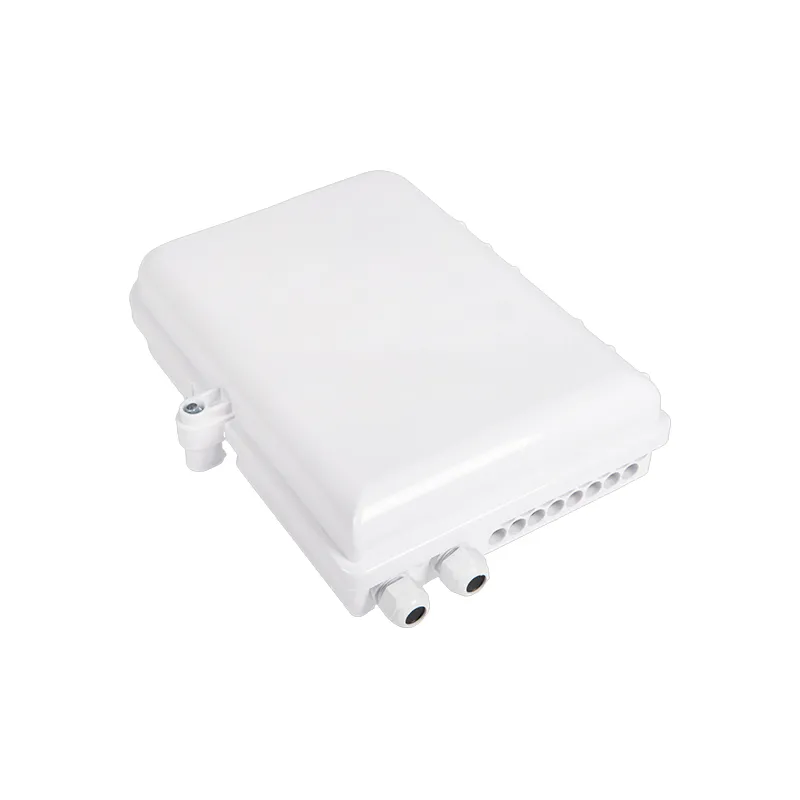

16 port fiber termination box OPT-208 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Share:

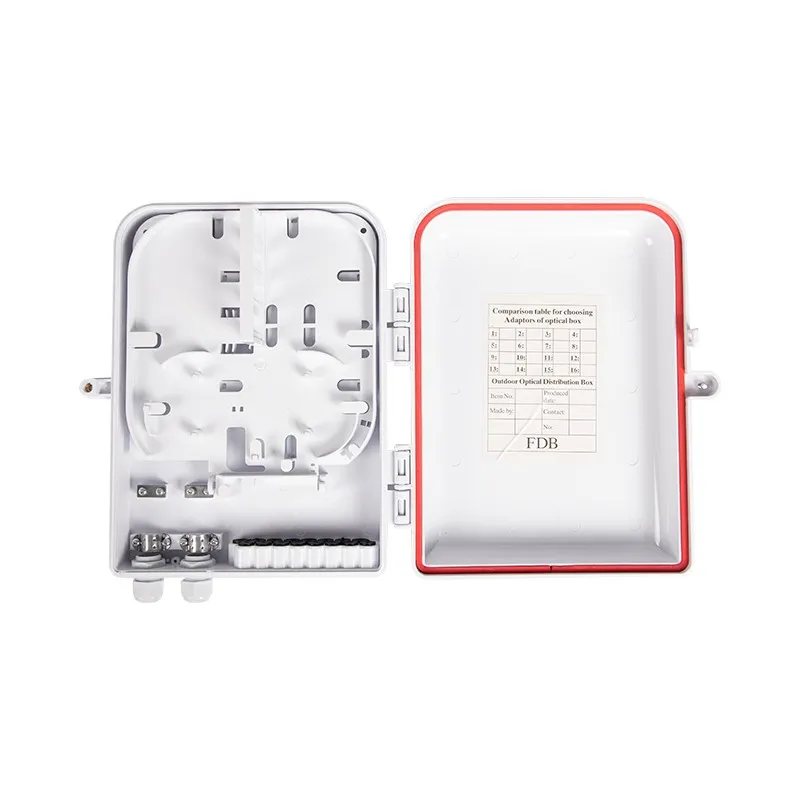

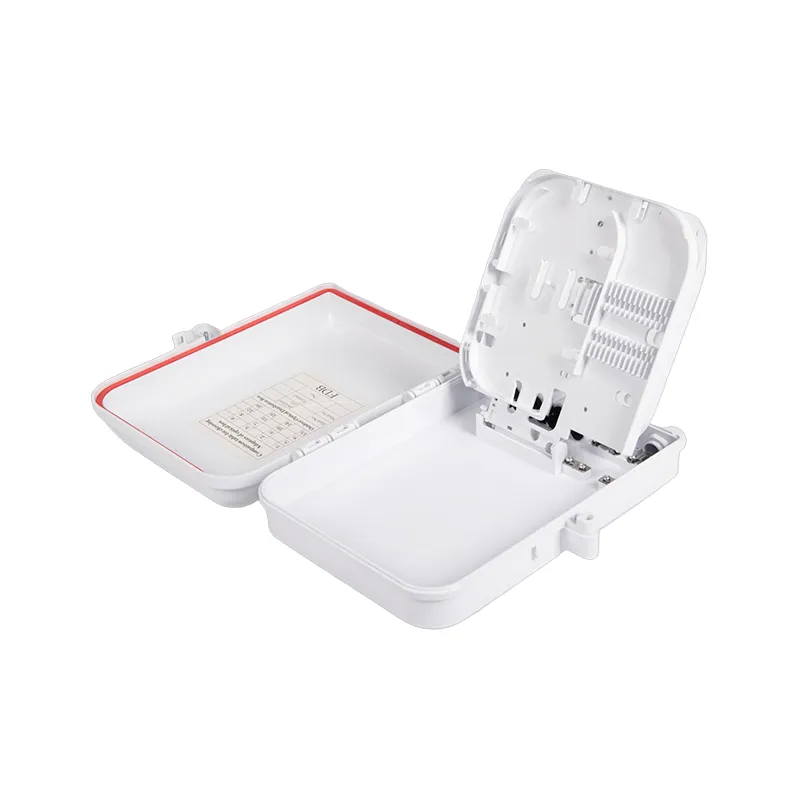

The 16 port fiber termination/distribution box includes a waterproof design and low profile interconnection between central office and multi-dwelling units of FTTx application. Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up.
This FDU is capable of housing 16 simplex SC fiber optic adapters or 8 duplex LC adapters and is offered in a white PC+ABS plastic with a lock for security.
Applications of fiber optic terminal box: FTTH, FTTB, FTTC, Telecommunication Network, CATV, Local Area Network.
Specifications
Specifications fiber optic terminal box OPT-208
| Material | Strengthen ABS |
| Size,mm | 300*220*80 |
| Max Capacity | Splice 16 Fibers(1trays,16 core/tray) |
| Qty of Adapter(SC type) | 16 pcs of SC(max) |
| Qty of PLC（PLC type） | 1pcs1x16 PLC Splitter |
| Weight,kg | 1.05 |

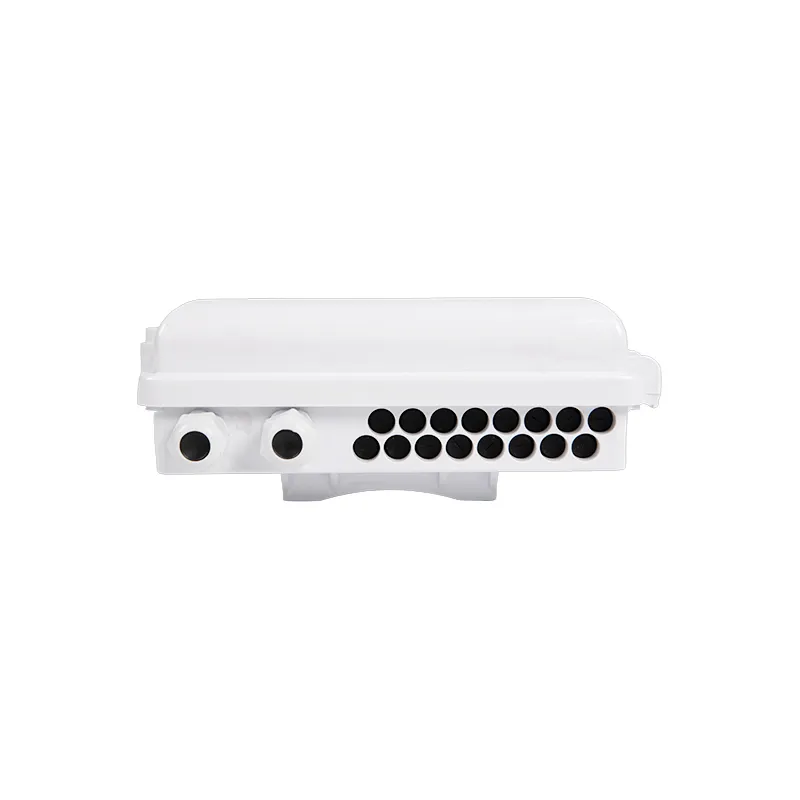

| Ports | 2 in 16 out |

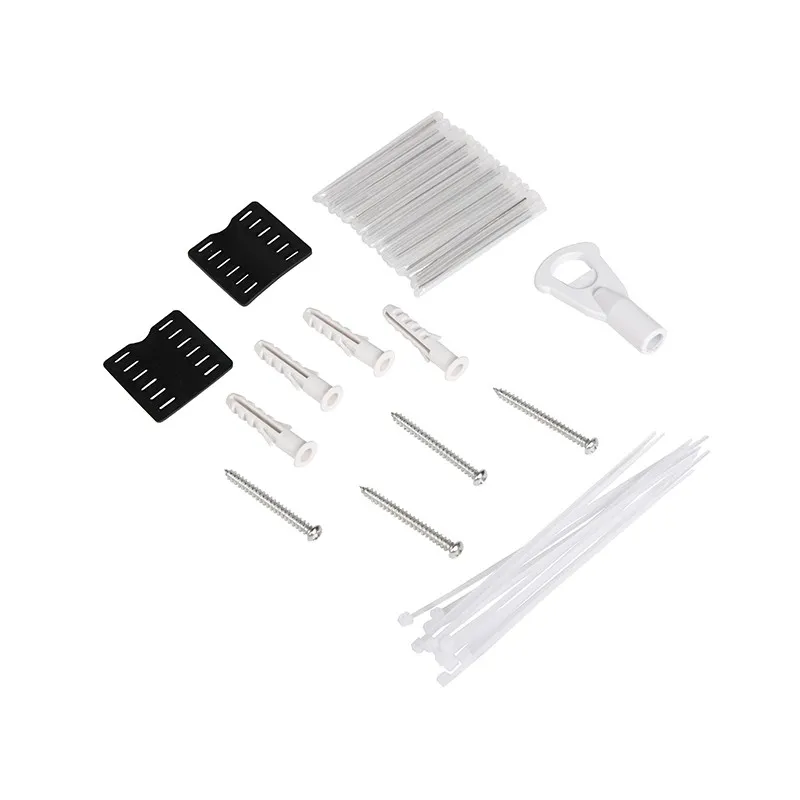

Standard Accessories
Standard Accessories for fiber termination box：
Screw: 4mm*40mm 4pcs
Expansion bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
Key:1pcs
TPR black block：2 pcs（Optional Accessories ）
