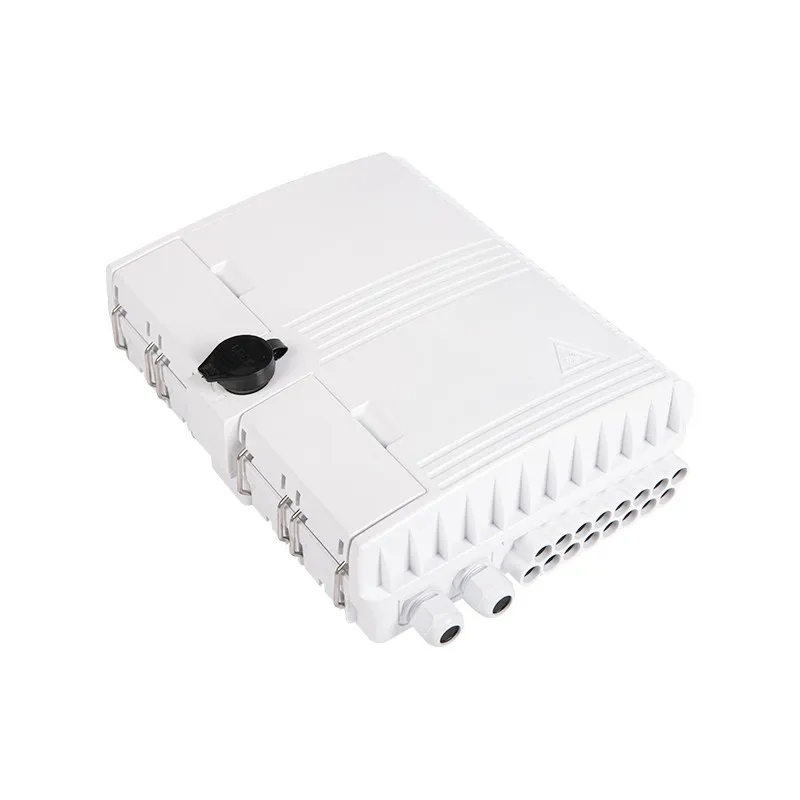

Fiber optic distribution box 16 ports OPT-215 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Our Fiber optic distribution boxes are specially designed to house and protect the various amounts of simplex or duplex adapters that you need for FTTH. Easily connect your SC or LC adapters into an fiber termination box and be able to split out your bulk fiber in up to 16 different run locations while simultaneously safeguarding your network connection.
Share:

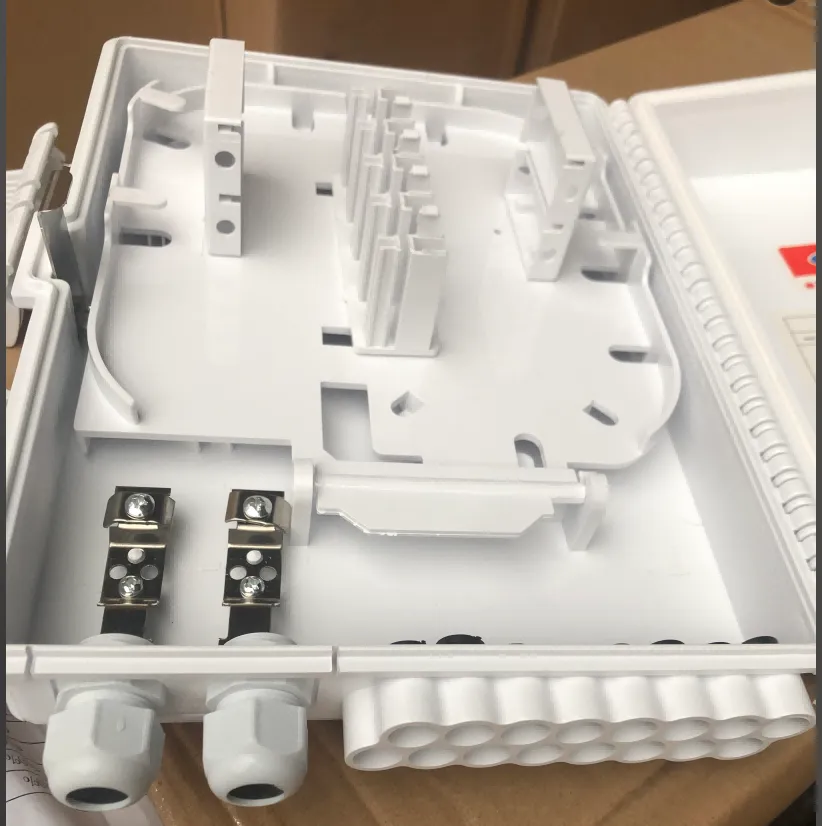

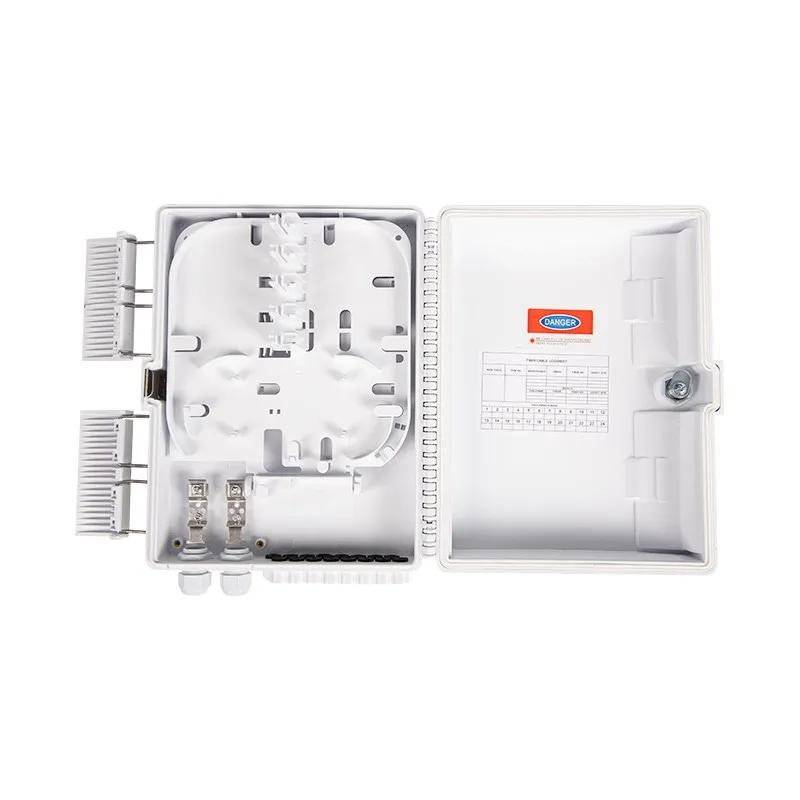

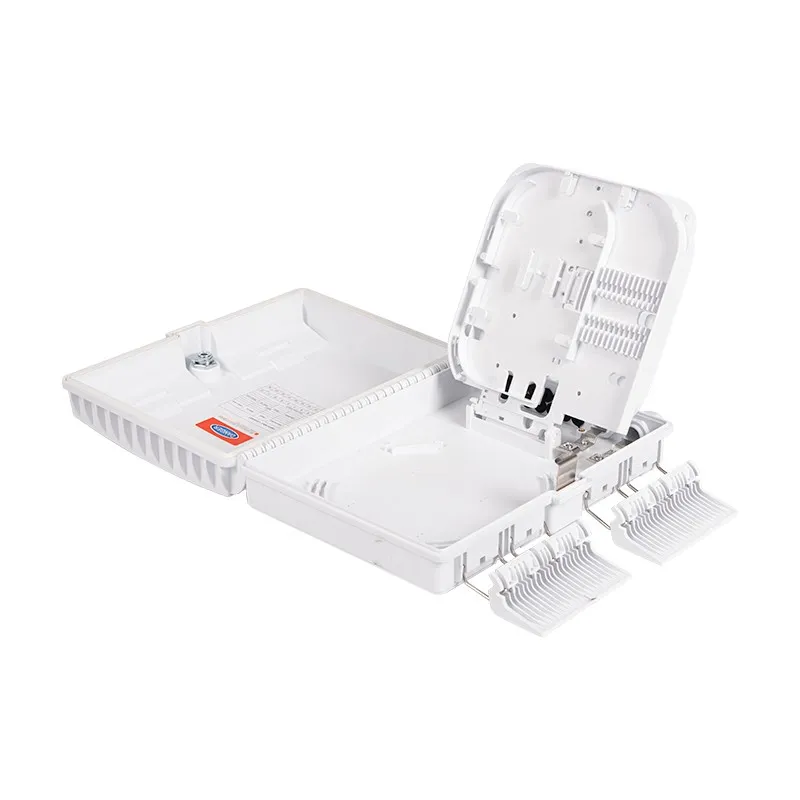

Fiber Termination Box,also called fiber distribution box, typically consists of two main parts: the outer shell body and the tray for adapter or splitter in order to protect fiber connector points. Material of shell body is PC,PP or ABS plastic materials.Generally speaking, high-quality fiber terminal boxes are made of environmentally ABS materials.
Fiber terminal box is a crucial component in fiber optic networks, primarily used for terminating, connecting, and managing fiber optic cables. Serving as a critical connection point, it facilitates the termination, splicing, or connection of fibers from various cables to other network devices.
The purpose of the fiber terminal box is that it can economically and efficiently achieve cable fixing, splicing and protection for the fiber. At the same time, the design of fiber optic box is convenient to install and maintain.
Specifications
Fiber optic distribution box OPT-215 16 cores IP-65
The fiber termination box is multipurpose. It can be used as either SC adapters or PLC splitters
| Material | Strengthen ABS |
| Size,mm | 300*245*100 |
| Max Capacity | Splice 16 Fibers(1trays,16 core/tray) |
| Qty of Adapter(SC type) | 16 pcs of SC(max) |
| Qty of PLC（PLC type） | 2 pcs 1x8 PLC Splitter,or 1 pcs 1x16 PLC |
| Weight,kg | 1.35 |

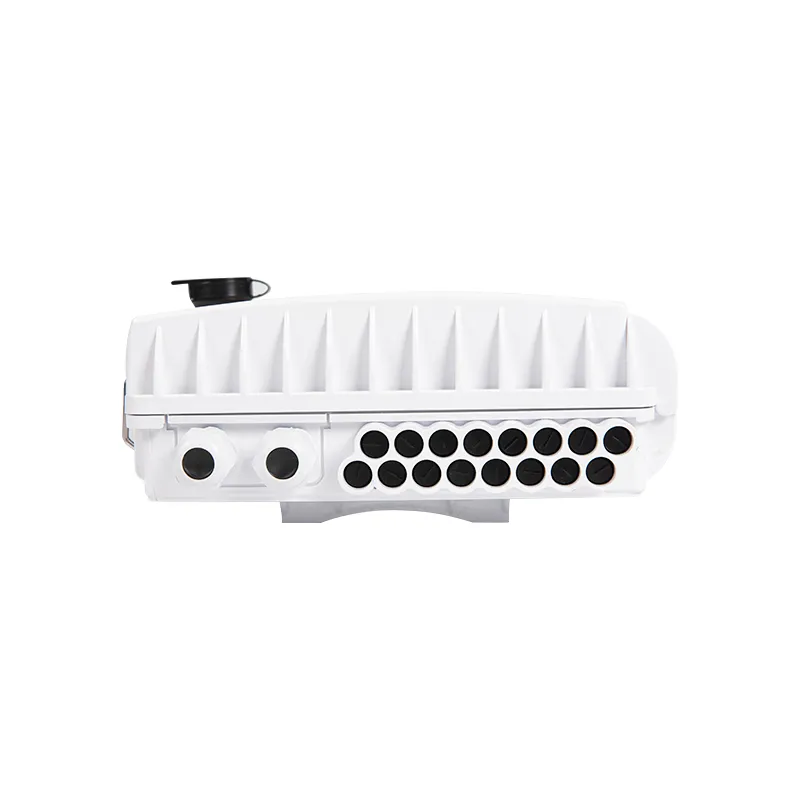

| Ports | 2 in 16 out or 3 in 16 out is optional |
| Colour | Black,white,grey |

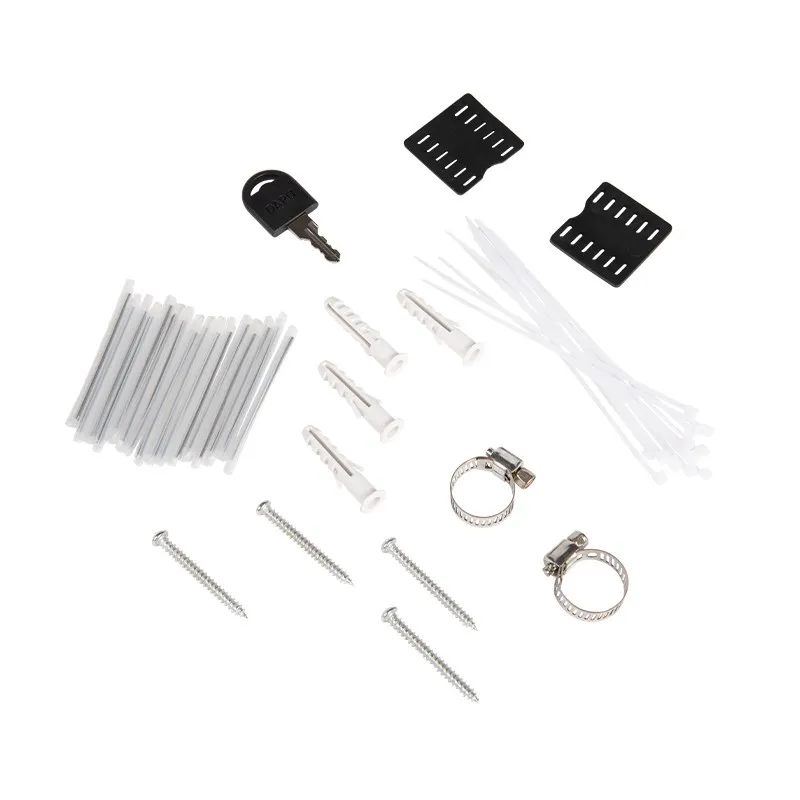

Standard Accessories
Accessories for Fiber optic distribution box 16 ports:
Screw: 4mm*40mm 4pcs
Expansion bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
Key:1pcs
hoop ring：3pcs
TPR black block：2 pcs（Optional Accessories ）
