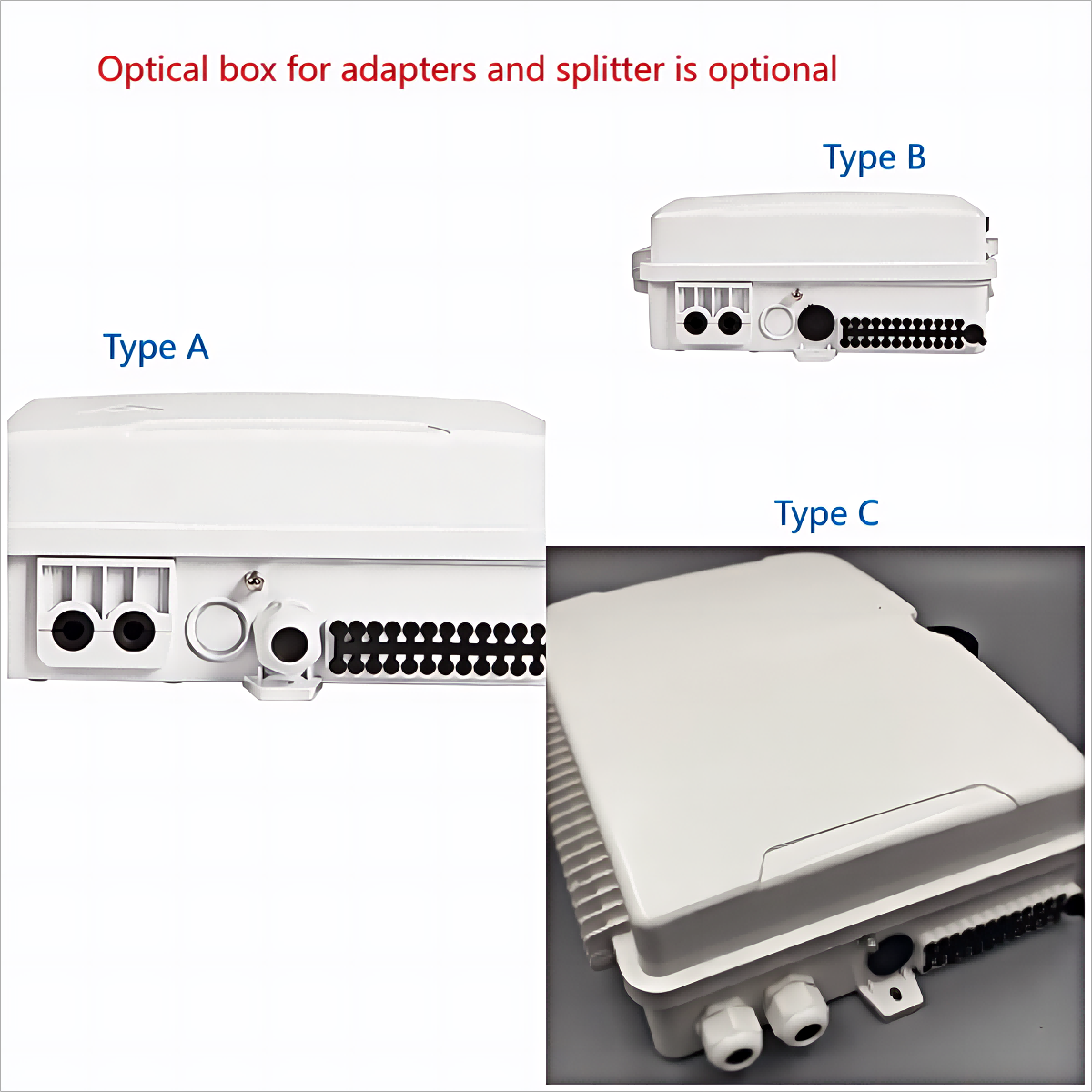

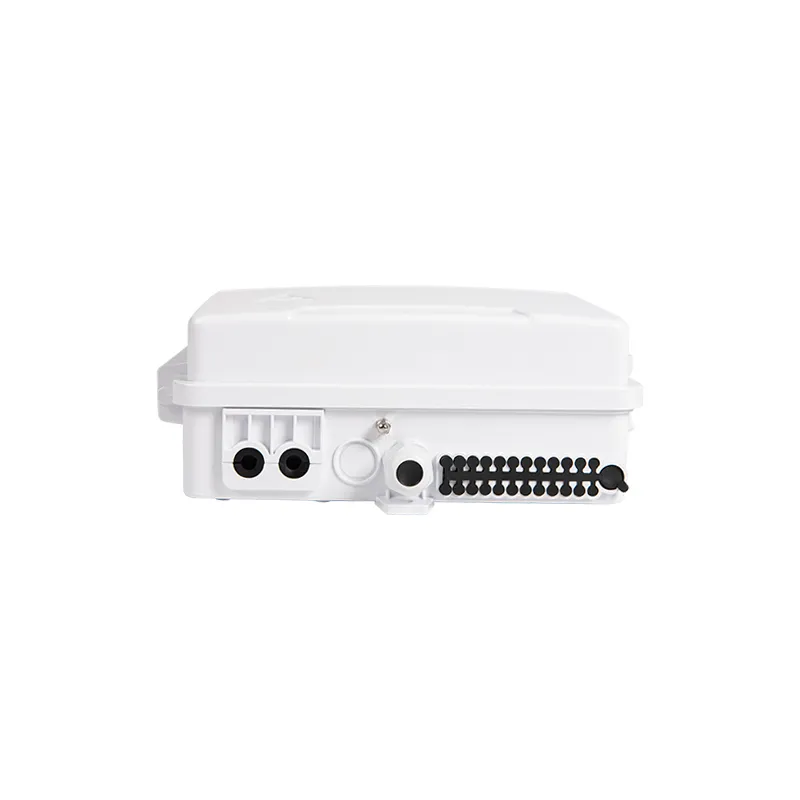

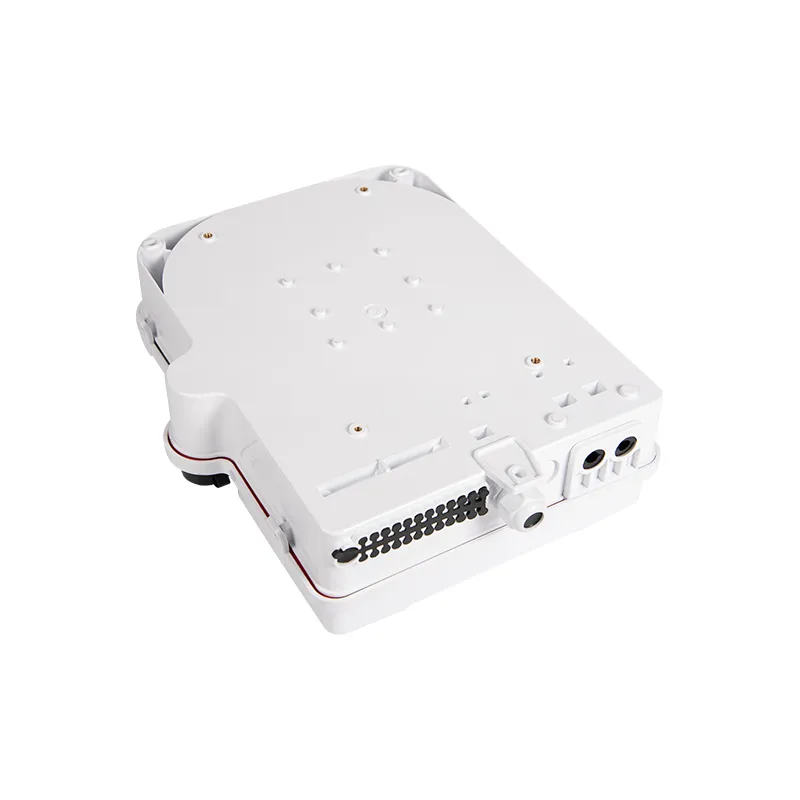

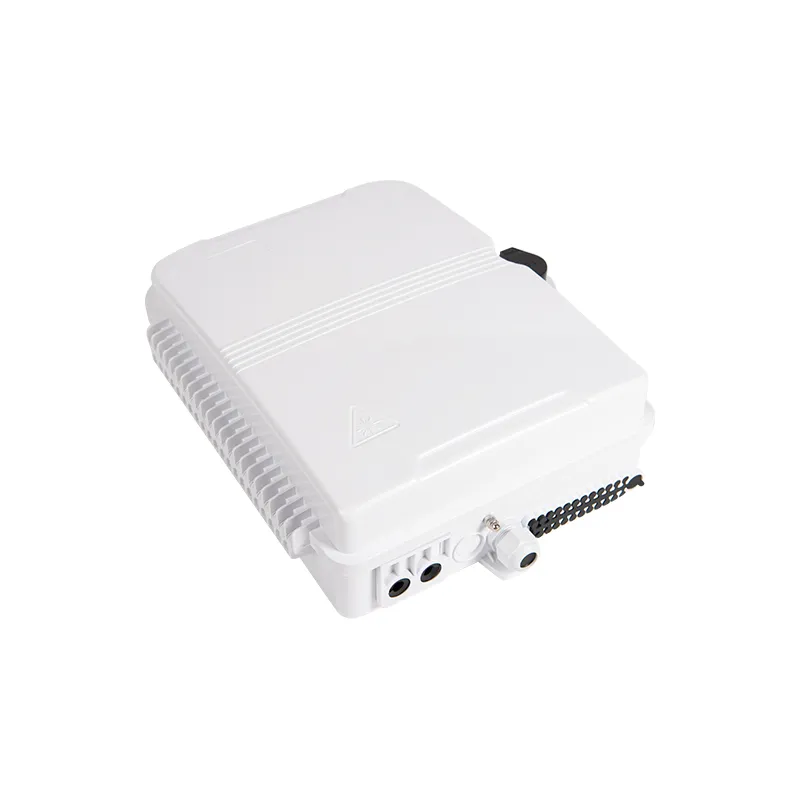

FTTH Fiber Optic Termination Box 24 ports OPT-211 for adapters and splitters

Feature of 24 port fiber termination box  OPT-211

1.Material: ABS, wet-proof、 water-proof、dust proof、anti-aging,protection level up to IP65.

2.Clamping for feeder cable and drop cable, fiber splicing,fixation, storage distribution ... etc all in one.

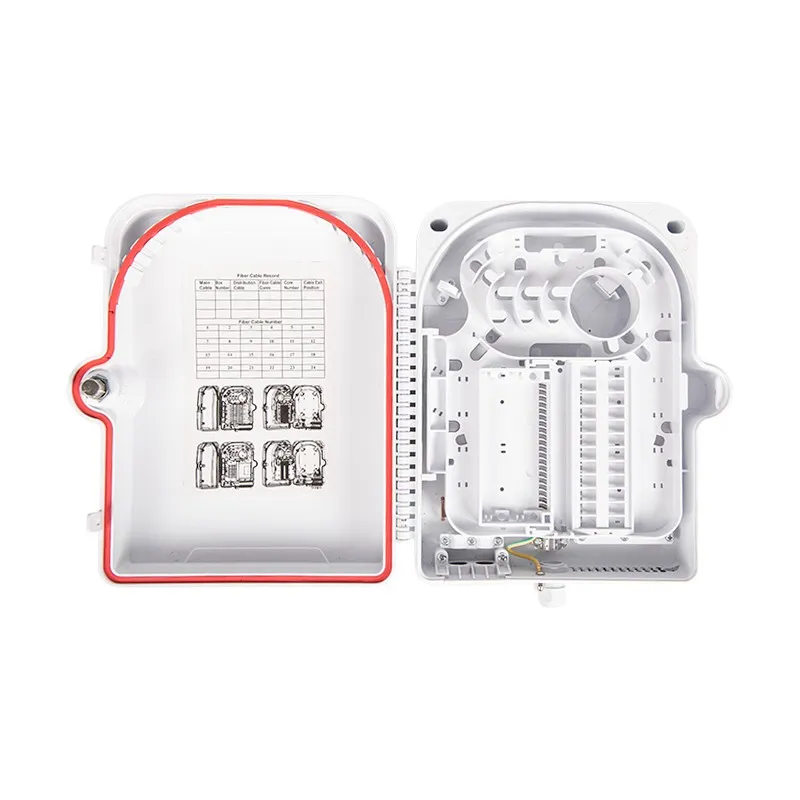

3.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation,easy maintenance.

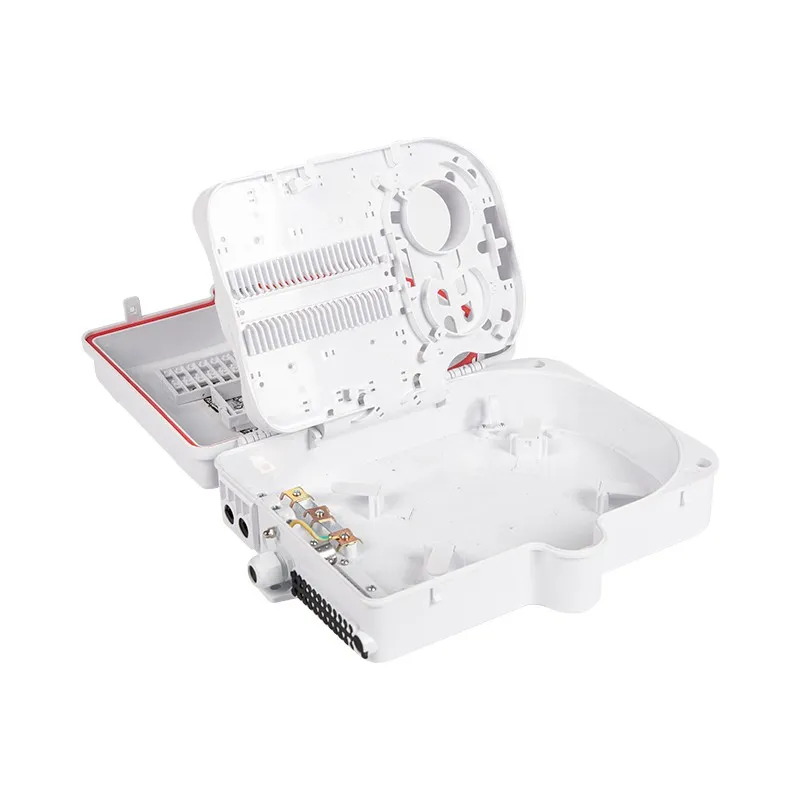

4. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

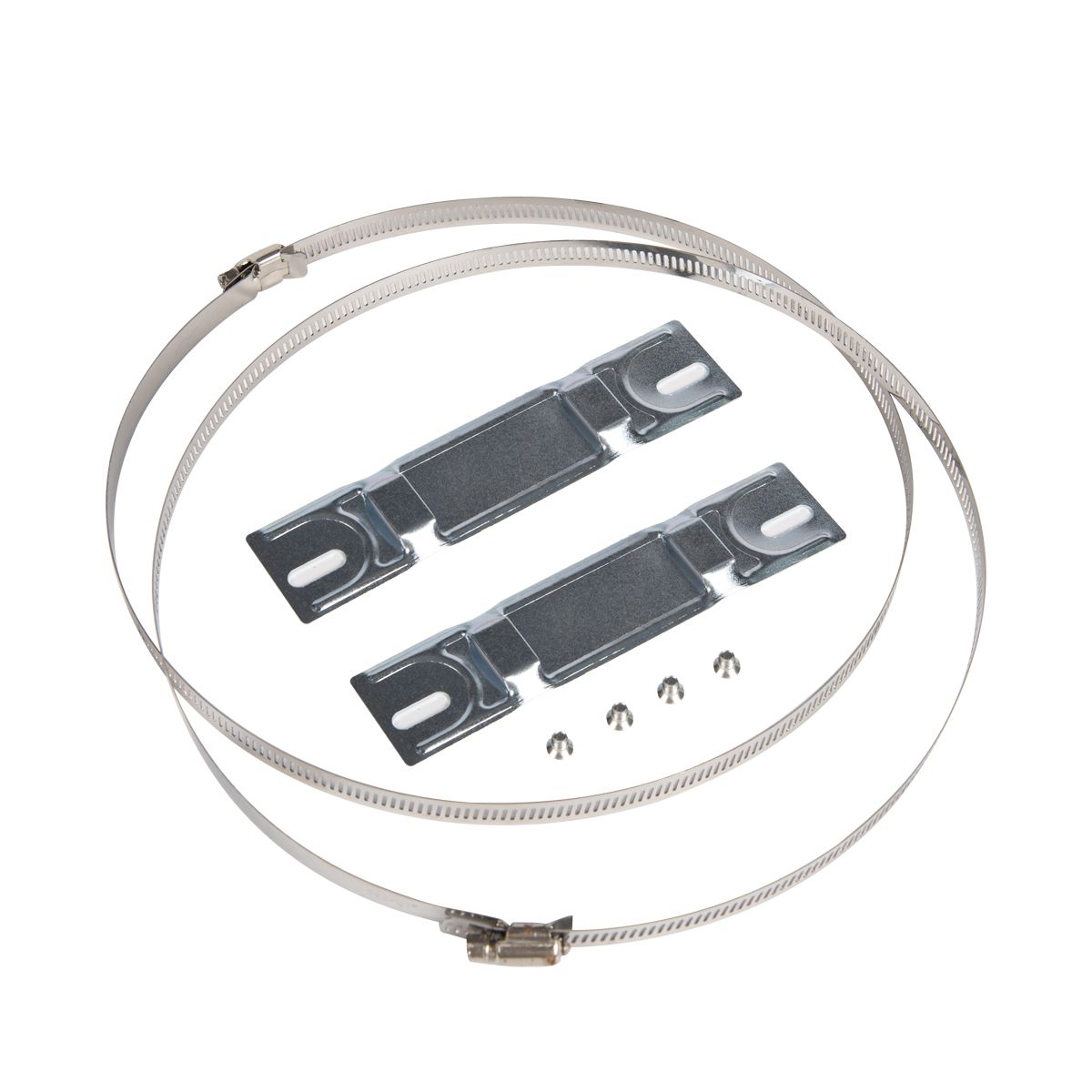

5.Fiber optic termination box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.

What is a Fiber Termination Box?

Fiber Termination Box, or FTB, is used to distribute and protect the optical fiber links in FTTH networks.The fiber termination box is an interface between the fiber cable from the line side and the pigtails to be passed to the fiber distribution frame. A fiber pigtail is a specific hardware connection used for cable termination.

Thus, a fiber termination box is used to terminate the optical fiber cables in the field and connect them to the pigtail by splicing. After an optical cable arrives at the user’s end, it is fixed in the terminal box. Then, the optical cable core and pigtail are welded in the terminal box.

These boxes are similar to MDF in telephone exchanges. There are cassettes provided inside this box that keep the fibers safe after fusion splicing. Any extra fiber from the line side or the pigtails can also be stored in the termination box. It also acts as a point for bunching and rerouting optical fiber cables.

Types of Fibre Termination Boxes

By cable connection method

• Straight-through Terminal Box: This terminal box has a single external hole for the receiving line.

• Branched-type Terminal Box: This terminal box has several holes for the receiving line.

By  the number of fibers ports

A terminal box can be divided into 2,4,8,12,16,24,32 port fiber termination box.

By the shell material

The terminal boxes are maked from plastic（PP,PC） or metal materials.

By the Installation method

Fiber optic  boxes are divided  rack-drawer, wall-mounted, desktop-type（FTTH terminal box )and other types.

By application environment. There is indoor fiber termination box and outdoor fiber termination box.

• The indoor fiber distribution terminal is a compact fiber box solution for installation requirements in small to mid-sized MDUs, multiple dwelling units, or multiple tenant units (MTU).

• Outdoor Fiber Distribution Terminals are used for installing fiber in small and medium-sized MDUs, or multi-dwelling units.
