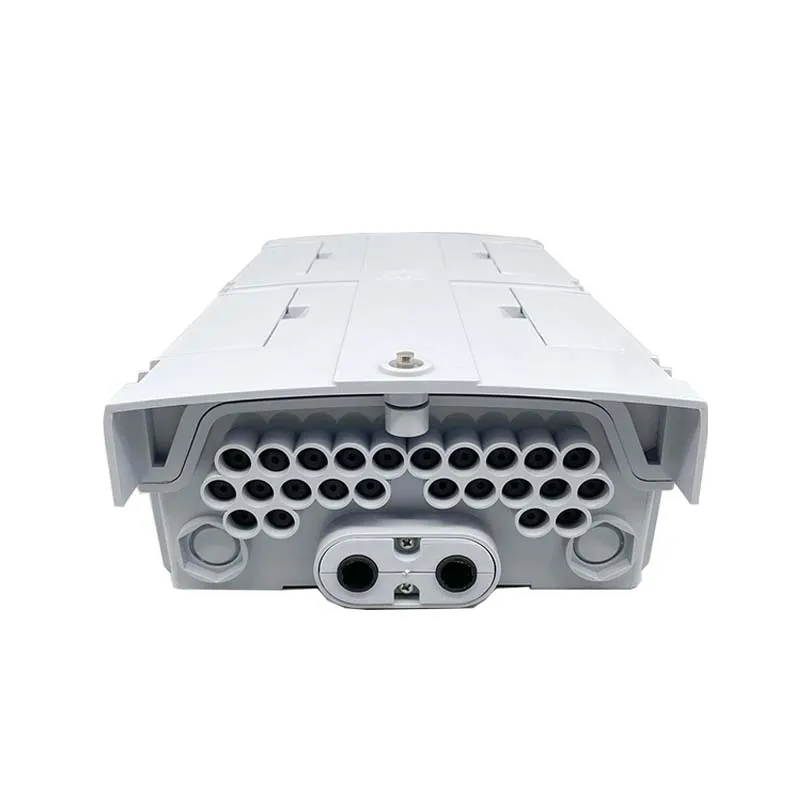

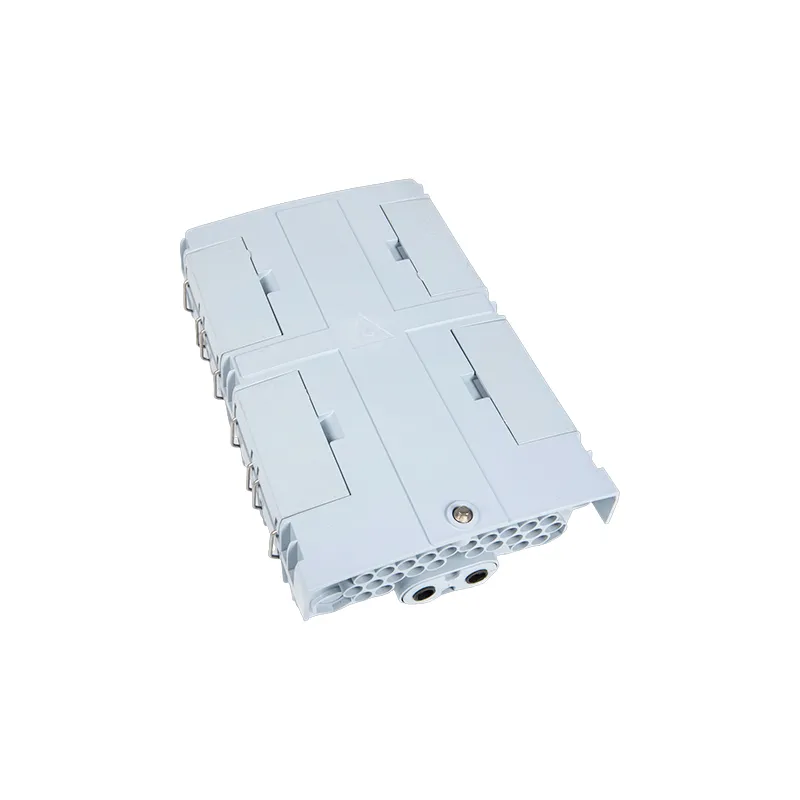

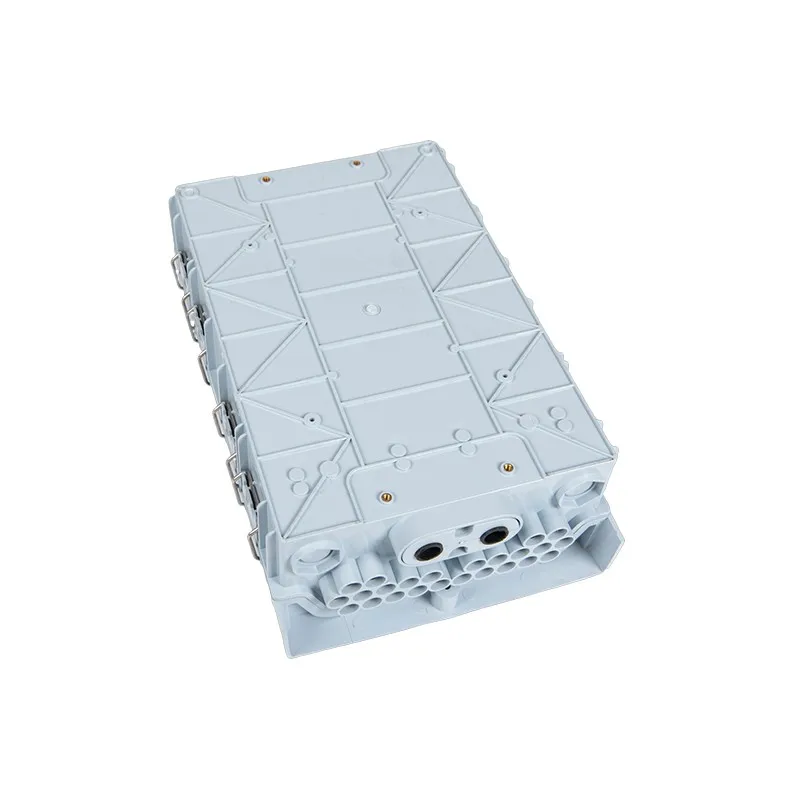

Fiber distribution box outdoor 24 port OPT-220 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

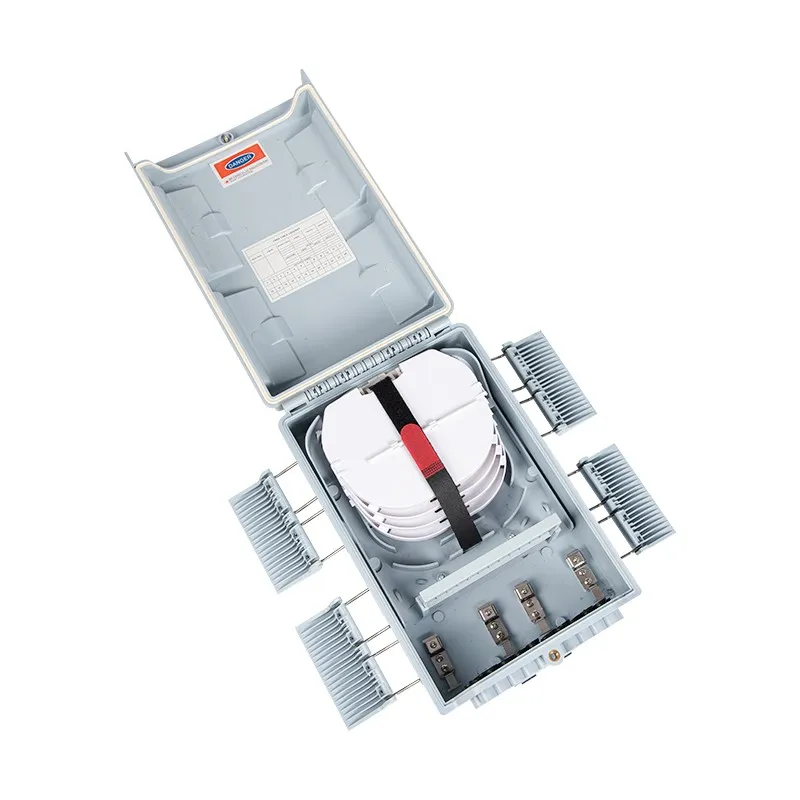

Fiber distribution box intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
What is a Fiber Distribution Box？
A Fiber Distribution Box (FDB),also referred tofiber optic distribution box, is a component in fiber optic networks for power distribution and terminal connections. It serves as a junction point where optical signals are distributed and terminated, allowing for the management and organization of fiber optic connections. The FDB typically includes adapters and splice trays to facilitate the connection and splicing of optical fibers.
Fiber Distribution Box may be wall-mounted or pole-mounted and can be used in indoor or outdoor applications. The FDB is commonly deployed in Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) applications to provide direct splicing, branching, through-connection, distribution, and termination of optical fibers.
Types of Fiber Optic Distribution Box：
Based on application, it can be divided into indoor and outdoor fiber optic distribution box.
By nstallation method, it can be divided into Wall and Pole fiber distribution box.
According to the fiber capacity, there are 16 fiber，24 fiber，32 fiber and 48 fiber.
The 16 -fiber, 24 -fiber and 32 fiber distribution box FDB supports Wall/Pole Mount, while the 48-fiber FDB is an Integrated Module with a 2U size that can be used with a standard 19-inch rack-mounted chassis. At the same time, the drawer type can be pushed and pulled design, convenient and quick management.
Advantages of Fiber Optic Distribution Box:
The Fiber Distribution Box (FDB) provides various advantages to fiber optic networks, including:
1. Enhanced Network Reliability: FDB ensures a secure and orderly management of fiber optic cables, shielding them from external damage and lowering the risk of network downtime.
2. Streamlined Installation Process and Cost Reduction: FDB is engineered for straightforward installation, resulting in decreased installation time and expenses.
3. Scalability: FDB facilitates the expansion of fiber optic networks by providing additional capacity for terminating and splicing fiber optic cables.
4. Flexibility: FDB is compatible with various fiber optic connectors and adapters, allowing for its application in diverse network scenarios.
Specifications
Specifications 24 port Fiber Distribution Box OPT-220
| Material | Strengthen ABS |
| Size,mm | 340*220*105 |
| Max Capacity | Splice 96 Fibers(1trays,16 core/tray) |
| Qty of Adapter(SC type) | 24 pcs of SC(max) |
| Weight,kg | 1.45 |
| Ports | 4 in 24 out |
| Colour | White,grey |
Standard Accessories

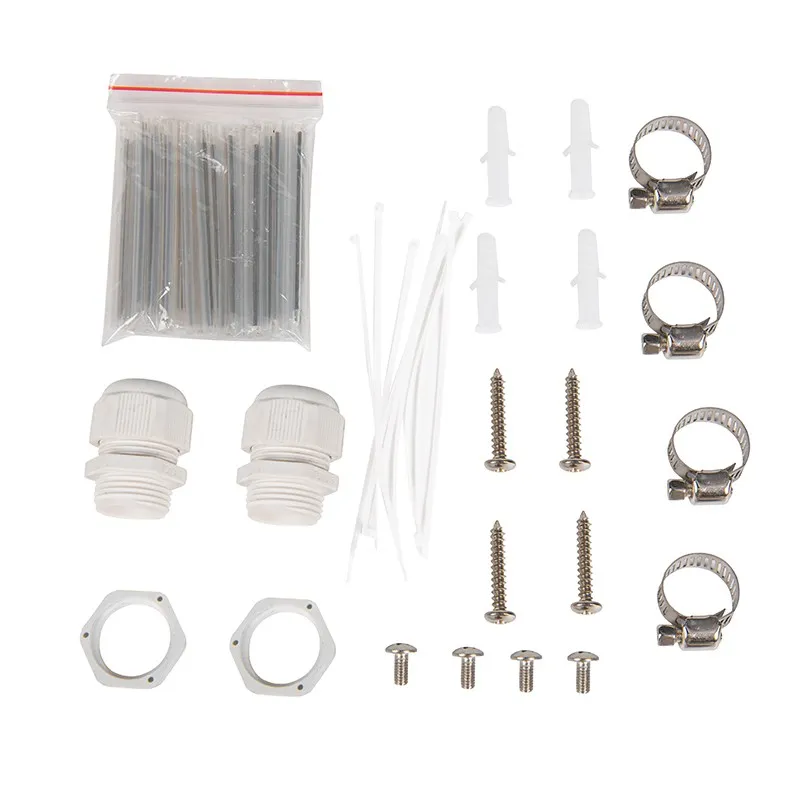

Standard Accessories for Fiber distribution box outdoor 24 port OPT-220:
Screw: 4mm*40mm 4pcs
Expension bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 24pcs
Hose clamps：4pcs
sheet iron：2pcs
Key:1pcs
