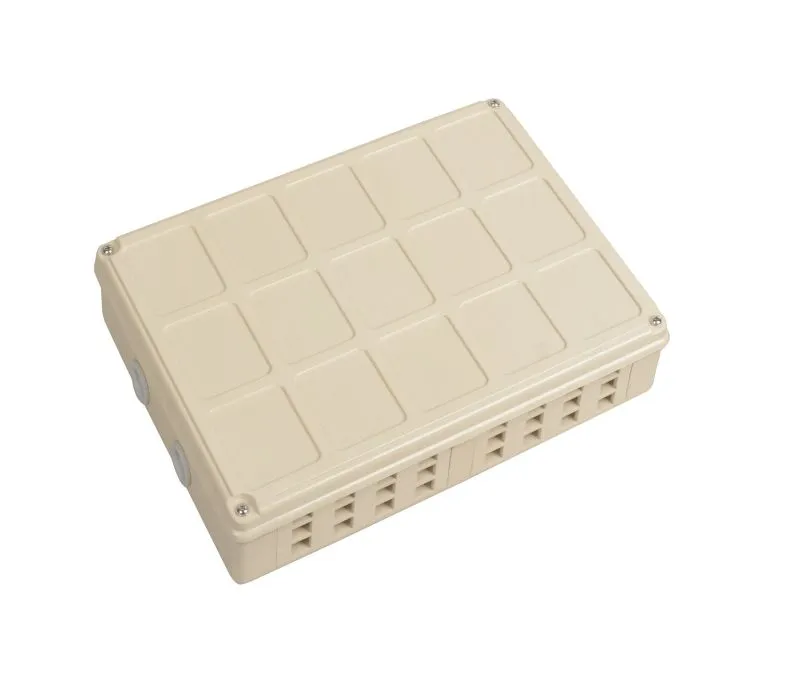

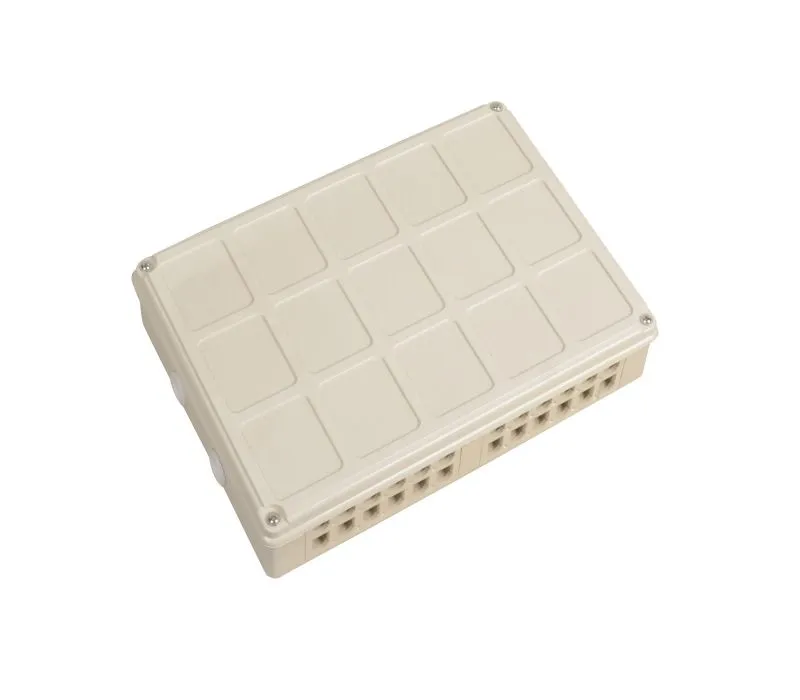

Fiber termination box OPT-316 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

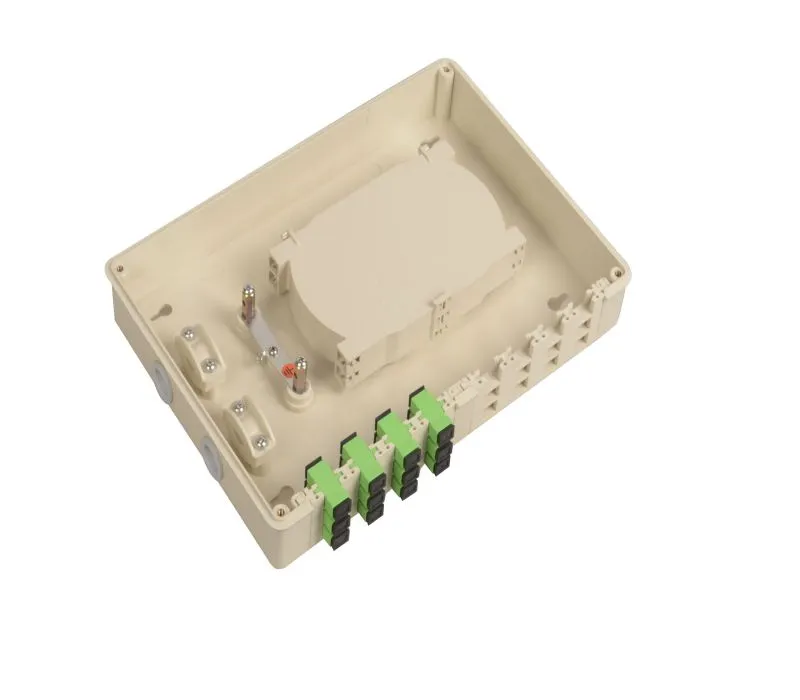

24 port fiber termination box intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
24 ports FTTH Fiber Distribution Box Features
Applicable to FTTH, FTTA and FTTD, etc.
Wall mounted or pole mounted
Coordinating with FC strip-type optical adapter, it generates more options in term of fiber interfaces for users, SC, LC and SC/FC are all available
The big-diametered wrapping post in the box protects radically in an omnibearing way.

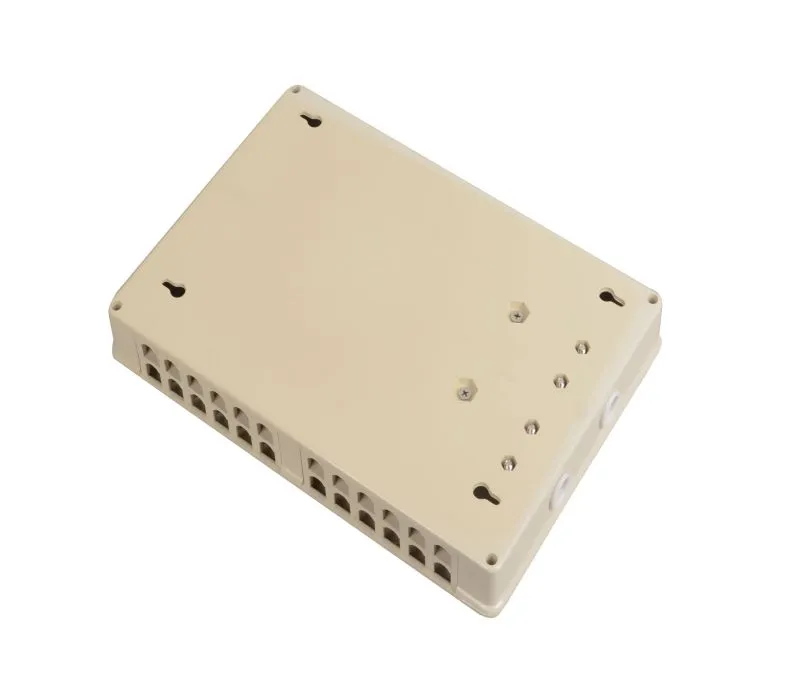

Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable.
Specifications
Fiber optic terminal box 24 port Specifications
| Material | Strengthen ABS |
| Size,mm | 300*150*55 |
| Max Capacity | Splice 24 Fibers(1trays,24 core/tray) |
| Qty of PLC | 1 pcs of 1x 24 PLC splitter |
| Qty of Adapter | 12 pcs of duplex SC(max) |
| Weight,kg | 1.1 |
| Colour | White |
| Ports | 2 in 24 out |
Standard Accessories
Accessories for the fiber optic terminal box：
Screw: 4pcs
Expension bolt: 4pcs
Heat-shrink sleeve: 24pcs
fiber protection tube：1pcs
Cable tie:3mm*10mm 4pcs
