Fiber termination box OPT-313 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
6 port fiber termination box intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable.
Specifications
Fiber distribution box OPT-313 6 Core
| Material | Strengthen ABS |
| Size,mm | 280*127*45 |
| Max Capacity | Splice 12 Fibers(1trays,12 core/tray) |
| Qty of PLC | 1 pcs of 1x6 PLC splitter |
| Qty of Adapter | 6 pcs of SC(max) |
| Weight,kg | 0.35 |
| Colour | White |
| Ports | 2 in 6 out |

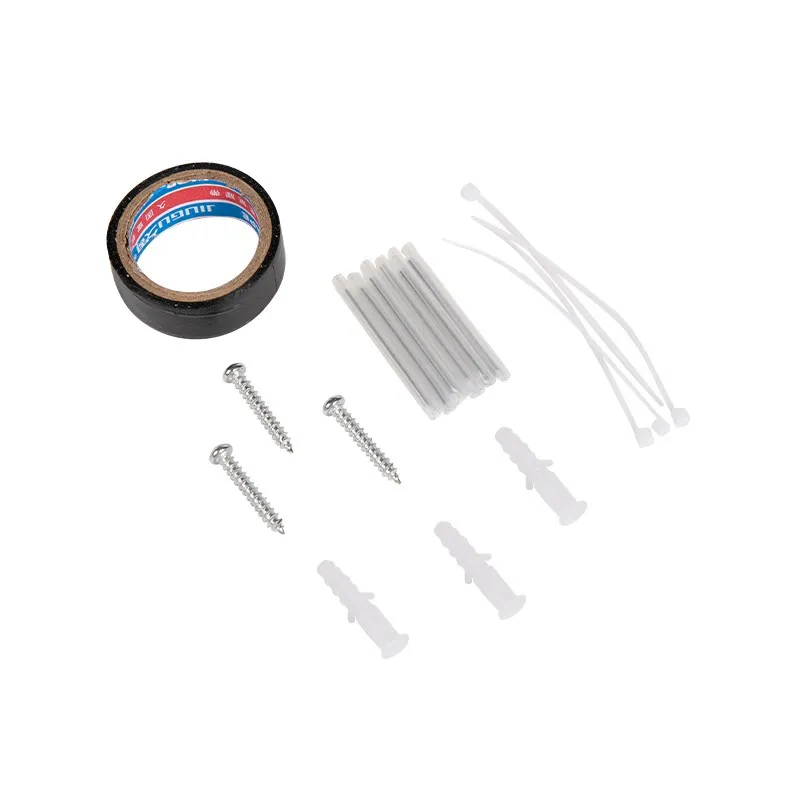

Standard Accessories
Screw: 3pcs
Expension bolt: 3pcs
Heat-shrink sleeve: 6pcs
Insulating tape：1pcs
Cable tie:3mm*10mm 4-6pcs
