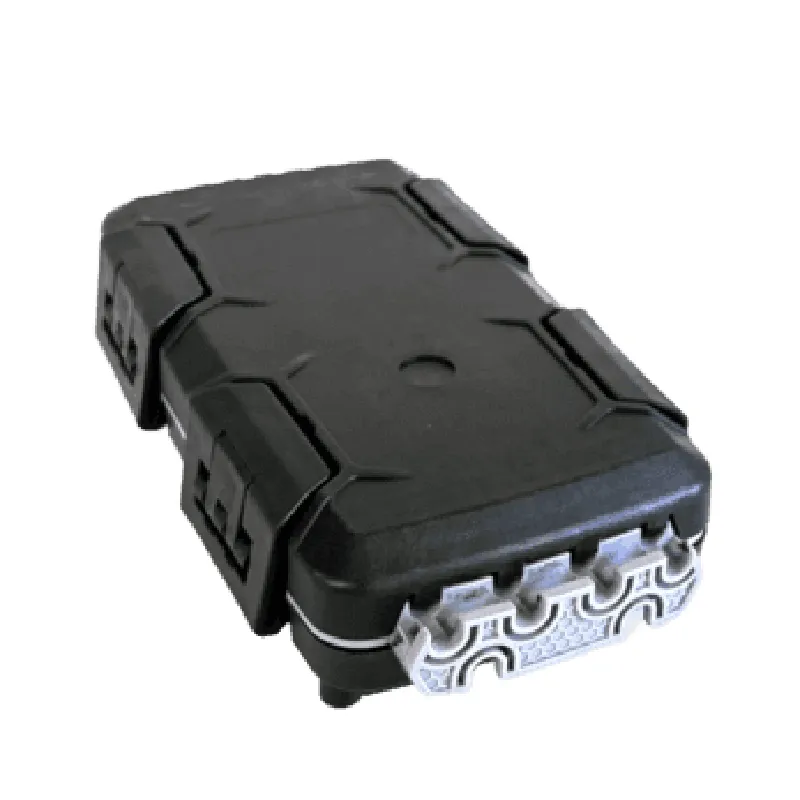

Fiber termination box OPT-B04 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber termination box OPT-B04 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-B04 |
| Protection level | IP68 |
| Dimension | 203mm×121mm×43mm |
| Outter carton size | 455×265×275mm |
| Capacity of FOSC ratio | Bunchy:10(cores) 1 × 1:4 |
| Inner carton size | 125×50×220mm |
| Cable Capacity,Branch | 2 pieces - ∅5mm or 4×7mm |
| Cable Capacity, Drop | 4 pieces - 2mm×3mm or 3mm or 5mm |
| Number of packing | 20 pcs/ctn |
| Diameter of cable | ∅3 mm - ∅5 mm |
| Weight | 23 kg/pcs |
