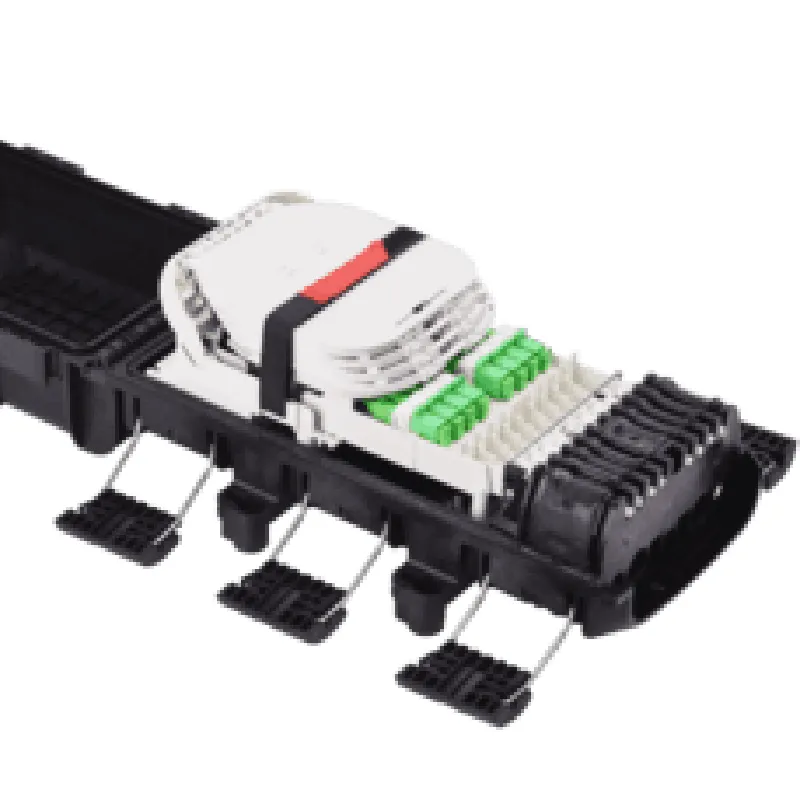

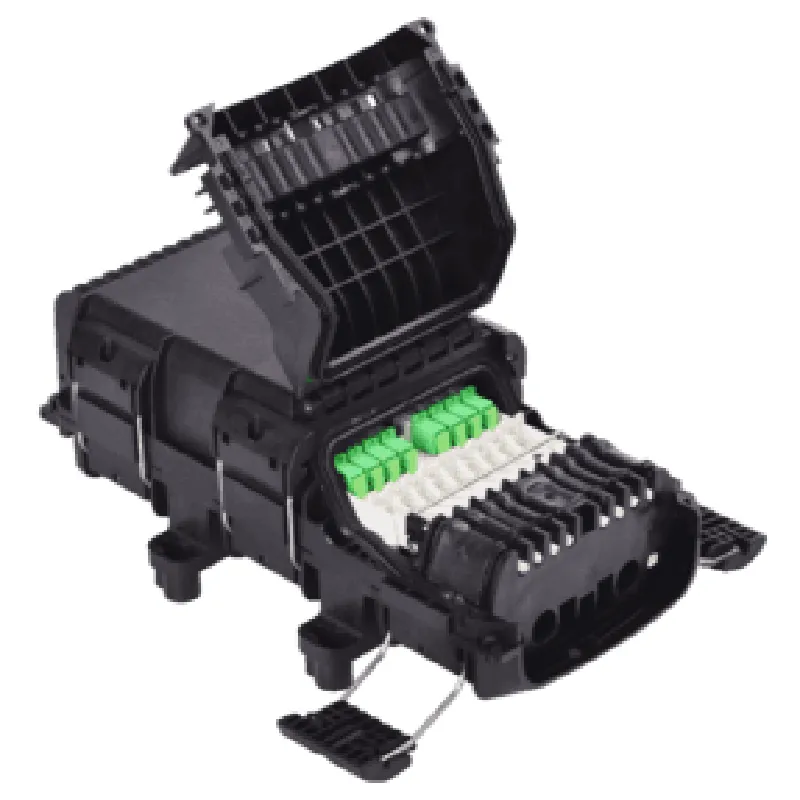

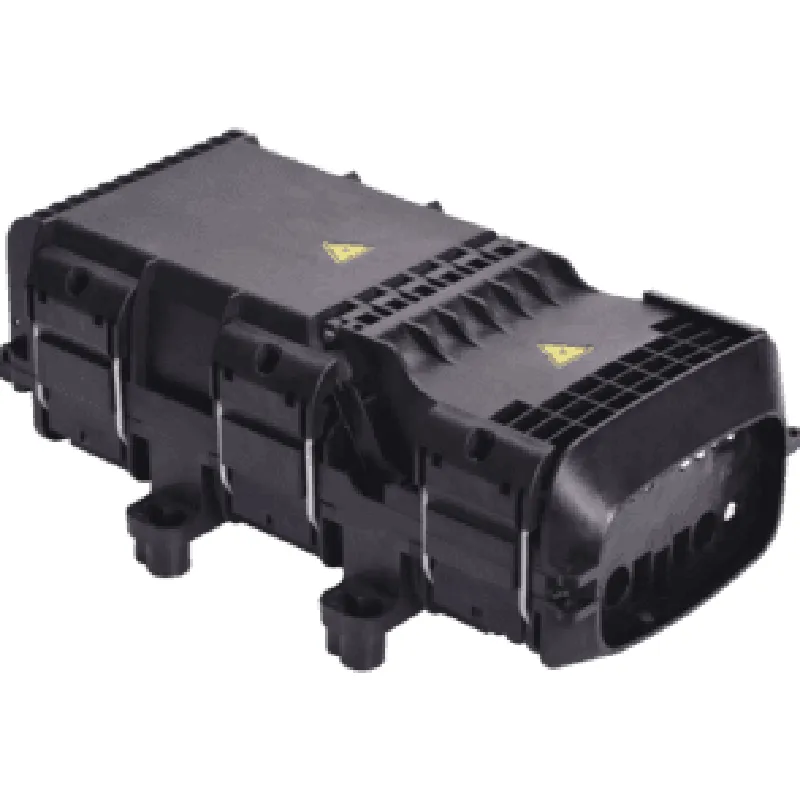

Fiber termination box OPT-FTT-B08 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber termination box OPT-FTT-B08 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-FTT-B08 |
| Protection level | IP68 |
| Dimension | 339mm×194mm×128mm |
| Outter carton size | 415×355×435mm |
| Capacity of FOSC ratio | Bunchy:72(cores) 1 × 1:8 or 2 ×1:4 |
| Inner carton size | 345×200×135mm |
| Cable Capacity,Branch | 4 pieces - ∅11mm -- ∅15mm |
| Cable Capacity, Drop | 8 pieces - ∅5mm or 4×7mm |
| Number of packing | 6 pcs/ctn |
| Diameter of cable | ∅3 mm - ∅15 mm |
| Weight | 23 kg/pcs |
