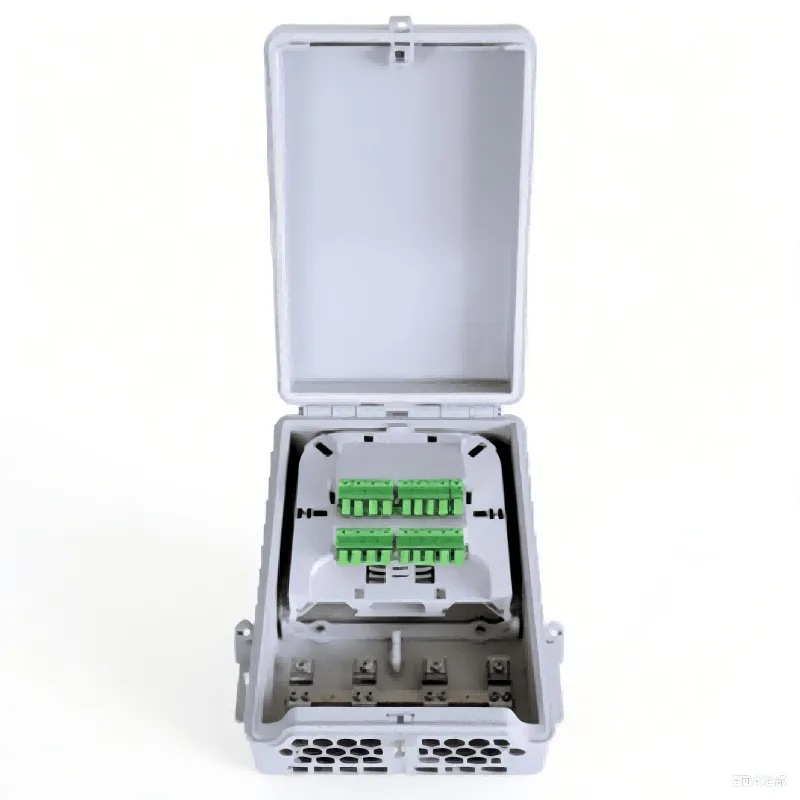

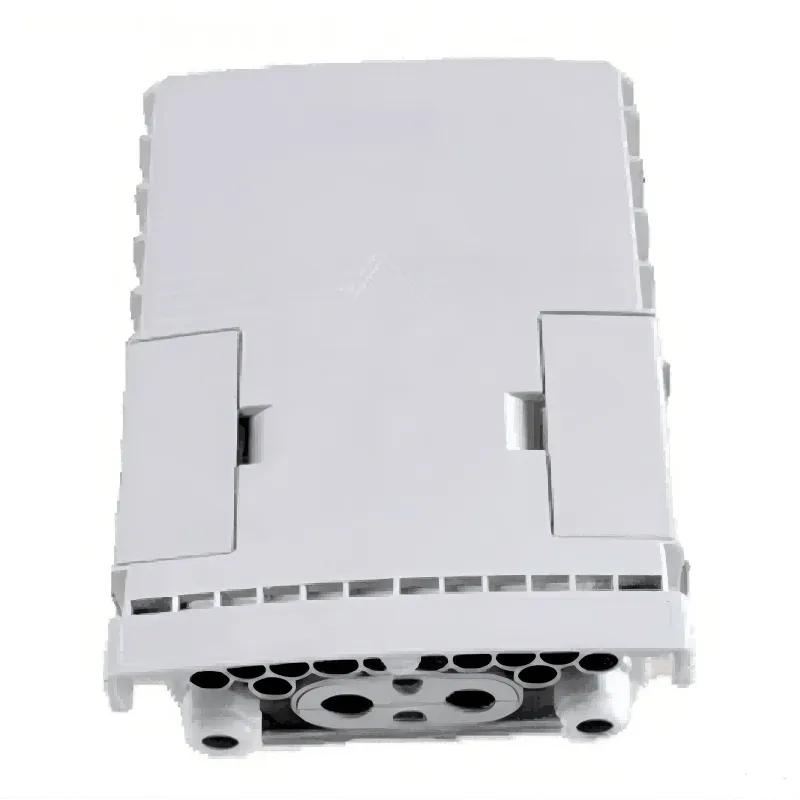

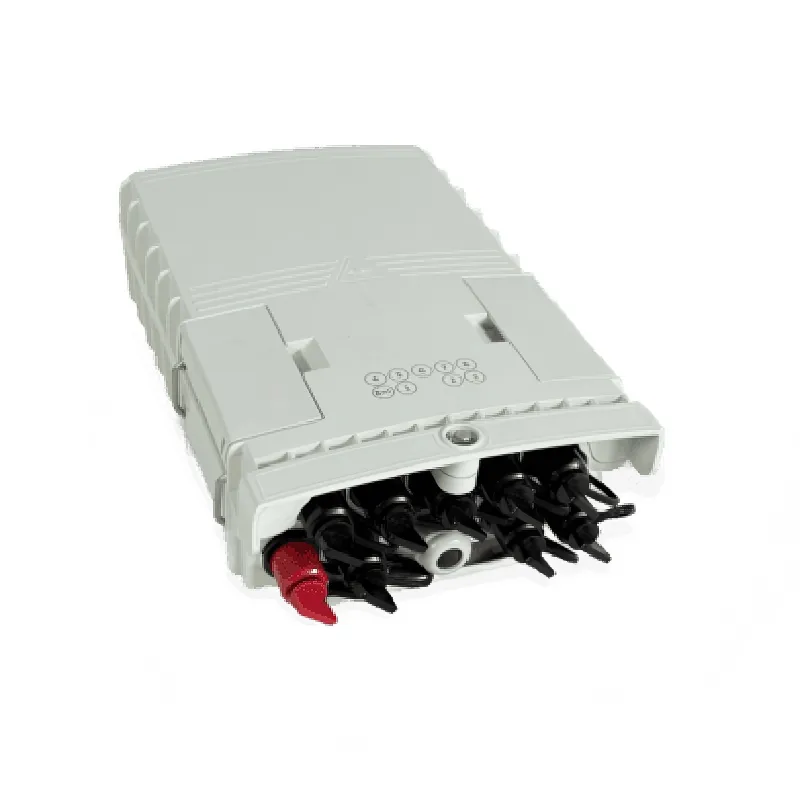

Fiber termination box OPT-GFS-16W is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber termination box OPT-GFS-16W intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-GFS-16W |
| Protection level | IP65 |
| Dimension | 290mm×183mm×86mm |
| Outter carton size | 595×365×545mm |
| Capacity of FOSC ratio | Bunchy:16(cores) 1 × 1:16 or 2 × 1:8 |
| Inner carton size | 358×188×102mm |
| Cable Capacity,Branch | 2 pieces - ∅12mm 2 pieces - ∅14mm |
| Cable Capacity, Drop | 16 pieces - 2mm×3mm |
| Number of packing | 15 pcs/ctn |
| Diameter of cable | ∅7 mm - ∅14 mm |
| Weight | 23 kg/pcs |
