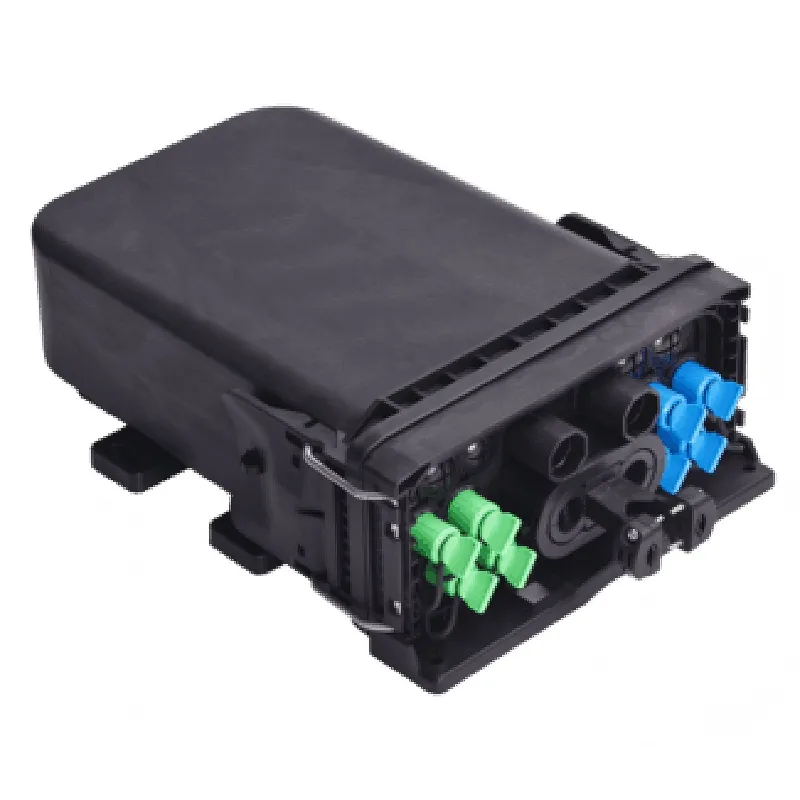

Fiber termination box OPT-H16X is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber termination box OPT-H16X intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-H16X |
| Protection level | IP68 |
| Dimension | 300mm×210mm×105mm |
| Outter carton size | 615×445×370mm |
| Capacity of FOSC ratio | Bunchy:16(cores) 1 × 1:16 or 2 × 1:8 |
| Inner carton size | 300×215×115mm |
| Cable Capacity,Branch | 2 pieces - ∅16mm,2 pieces - ∅10mm |
| Cable Capacity, Drop | 16 pieces - 2mm×3mm or∅5(Optional) |
| Number of packing | 12 pcs/ctn |
| Diameter of cable | ∅6 mm - ∅16 mm |
| Weight | 23 kg/pcs |
