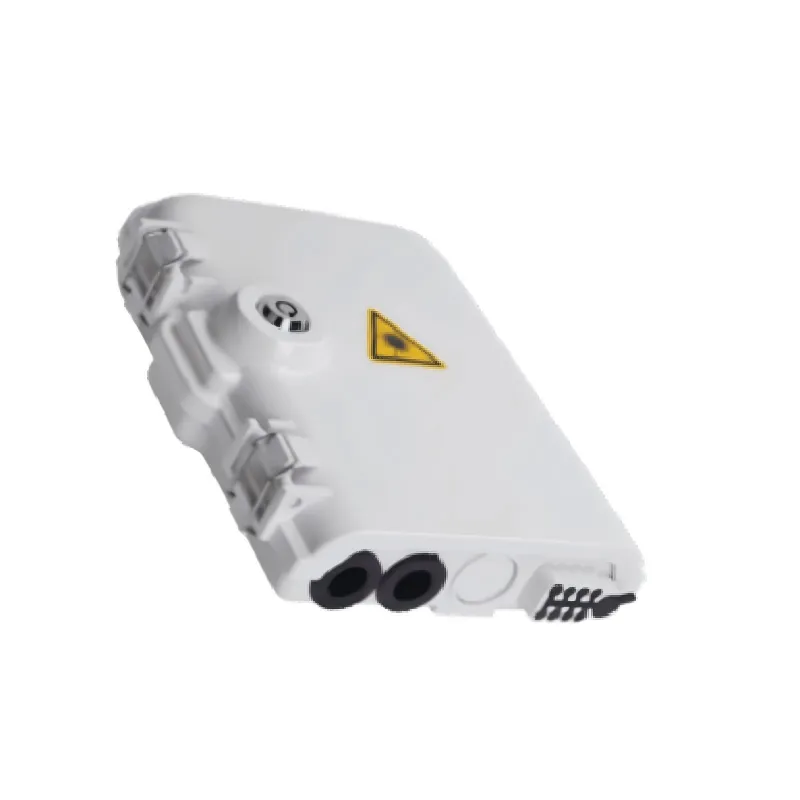

Fiber termination box OPT-H209 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

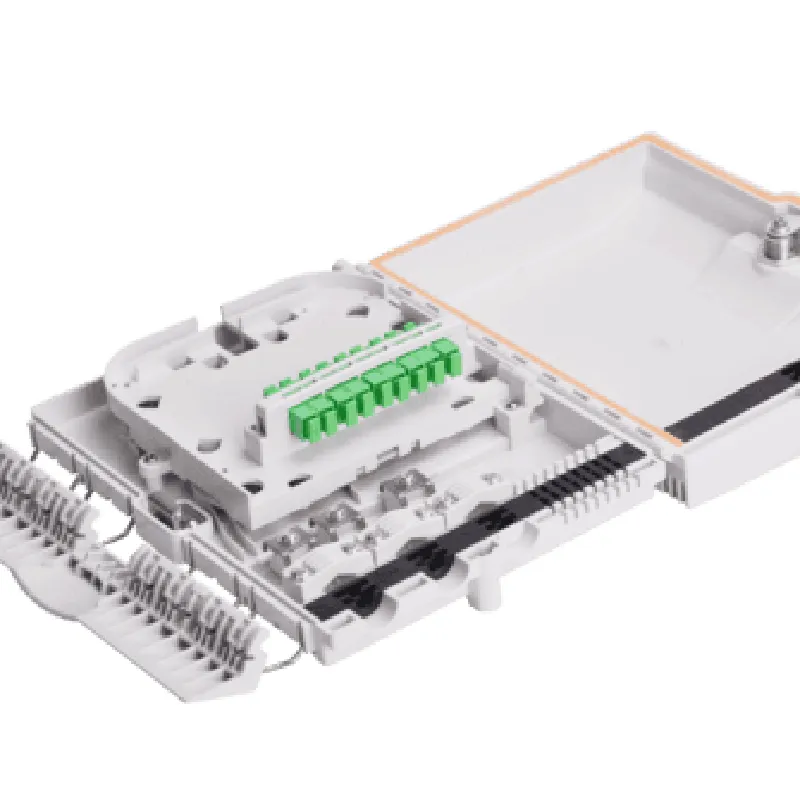

Fiber termination box OPT-H209 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-H209 |
| Protection level | IP65 |
| Dimension | 252mm×210mm×72mm |
| Outter carton size | 525×425×410mm |
| Capacity of FOSC ratio | Bunchy:16(cores) 1 × 1:8 or 2 × 1:4 |
| Inner carton size | 255×202×73mm |
| Cable Capacity,Branch | 3 pieces - ∅16mm |
| Cable Capacity, Drop | 8 pieces - 2mm×3mm |
| Number of packing | 20 pcs/ctn |
| Diameter of cable | ∅3 mm - ∅16 mm |
| Weight | 23 kg/pcs |
