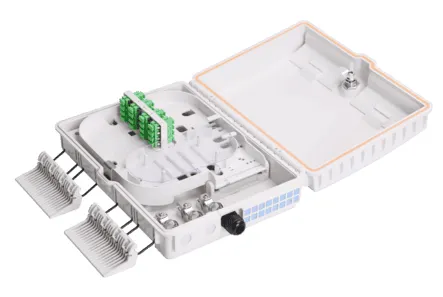

Fiber termination box OPT-H309 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber termination box OPT-H309 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-H309 |
| Protection level | IP67 |
| Dimension | 325mm×240mm×113mm |
| Outter carton size | 750×340×490mm |
| Capacity of FOSC ratio | Bunchy:24(cores) 1 ×1:16 or 2 × 1:8 |
| Inner carton size | 330×240×115mm |
| Cable Capacity,Branch | 1 pieces - ∅12mm 2 pieces - ∅15mm |
| Cable Capacity, Drop | 16 pieces - 2mm×3mm |
| Number of packing | 12 pcs/ctn |
| Diameter of cable | ∅7 mm - ∅16 mm |
| Weight | 23 kg/pcs |
