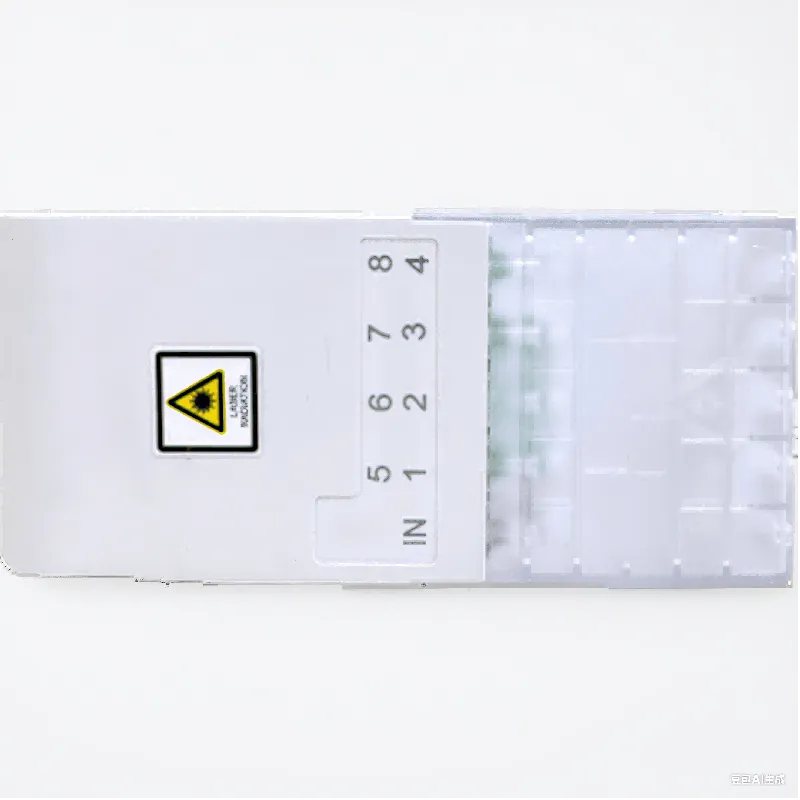

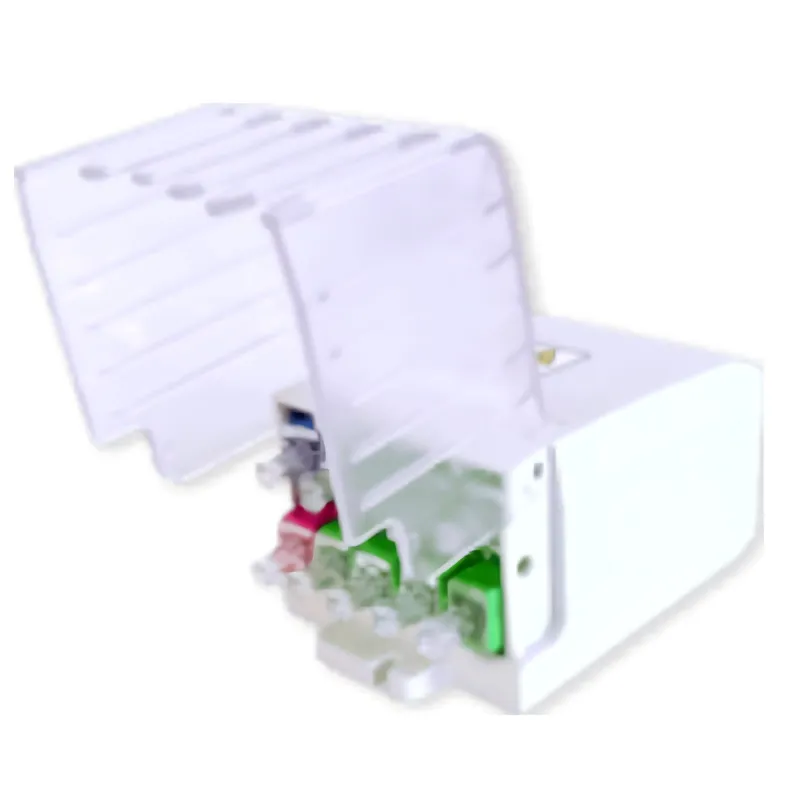

Fiber termination box OPT-P429 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber termination box OPT-P429 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-P429 |
| Protection level | IP65 |
| Dimension | 143x65x49mm |
| Outter carton size | 520x315X240mm |
| Capacity of FOSC | 1 × 1:8 |
| Inner carton size | 150 X100 X53mm |
| Cable entry ports | 10 |
| Number of packing | 40pcs/ctn |
| Diameter of cable | Φ 8mm～Φ 20 mm |
| Weight | 1.7kg/pcs |
