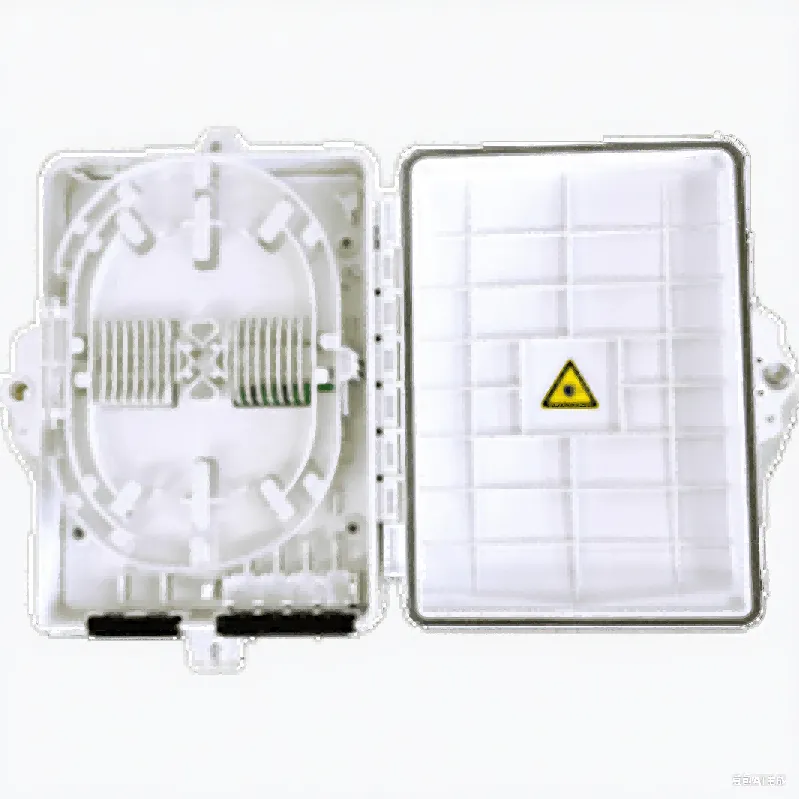

Fiber termination box OPT-T28 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Fiber termination box OPT-T28 intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
| Model | OPT-T28 |
| Protection level | IP65 |
| Dimension | 216mm×156mm×41mm |
| Outter carton size | 490×335×280mm |
| Capacity of FOSC ratio | Bunchy:24(cores) 1 × 1:4 or 2 ×1:2 |
| Inner carton size | 235×160×51mm |
| Cable Capacity,Branch | 2 pieces ∅6mm |
| Cable Capacity, Drop | 4 pieces ∅ or 2mm×3mm |
| Number of packing | 20 pcs/ctn |
| Diameter of cable | ∅6mm |
| Weight | 1.7kg/pcs |
