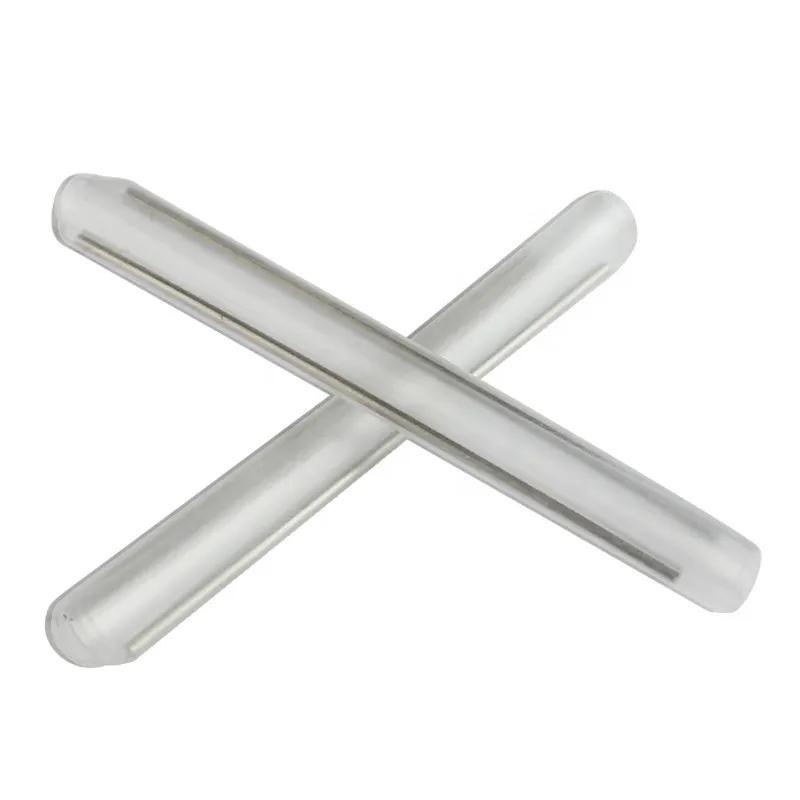

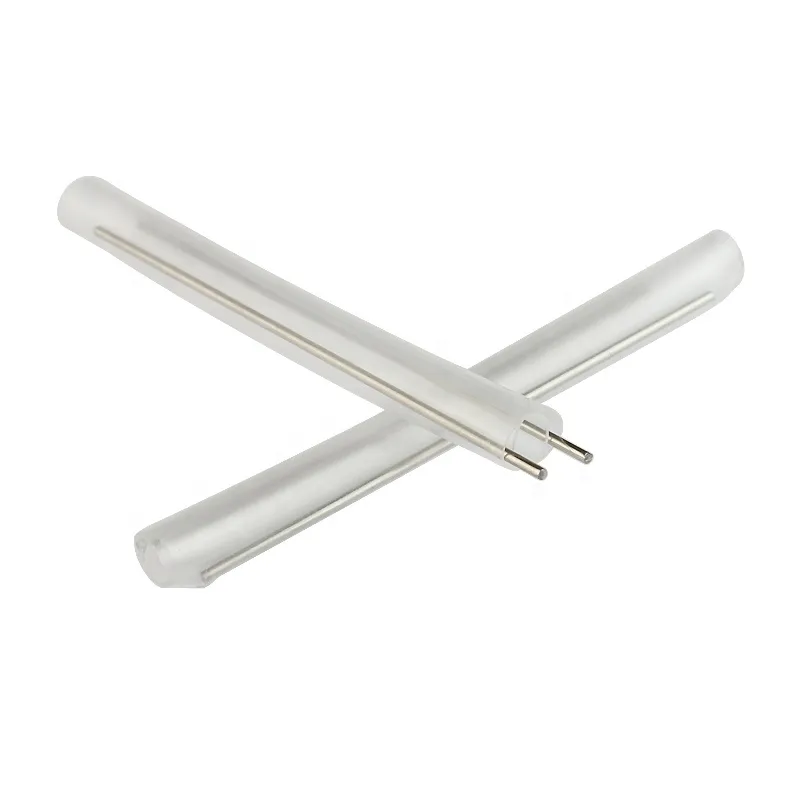

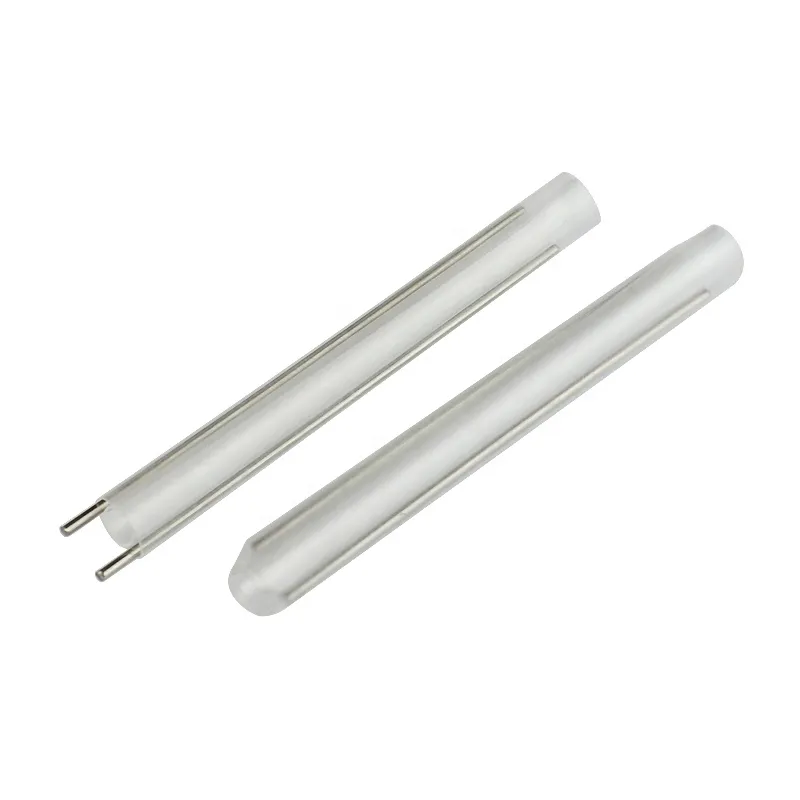

We supply fiber optic splice protection sleeve 40mm/60mm. To ensure a fused juncture over the spliced area, most fiber splice sleeves are best put under a heat shrink in order to reinforce their rigidity. Due to their appearance, they may be referred to as inner tube fiber optic splice sleeves. The fiber splice protectores are used in FTTH widlely. This products is made up of cross linked polyolefin heat-shrinkable tubes, hot melt tubes and Stainless steel needle. It is specifically designed for the protection of fiber optical closure.
Share:
Industry's Most Popular Sleeve.
Length:40mm,45mm and 60mm.
Diameter after heat shrinking:3.0mm.
Qty Steel Needle: 2 pcs.
Clear Outer Tube.
Pack of 100 pcs.
Specifications
Fiber splice protectores 40mm 45mm 60mm for drop cable
| Length of Tube | 40,45,60mm | Outer Tube Diameter | 3.8mm |
| Inner Tube Diameter | 1.5mm | Steel Needle Diameter | 1.0mm*2 |
| After Recover Diameter | 3mm | Working Temperature | -55°C ~ + 130°C |
| Tensile Strength | 20MPa | Dielectric Constant | 2.5 |
| Elongation at Break | 700% | Longitudinal Change | ±5% |
| Density | 0.94g/m³ | Eccentricity | 105 |
| Dielectric Strength | 25kV/mm | Pack | 100pcs/pkg |
| Shrinking Temperature (°C) | 110 ~ 130 | Minimum Fully Recovery Temperature | 100°C |
Inquiry
