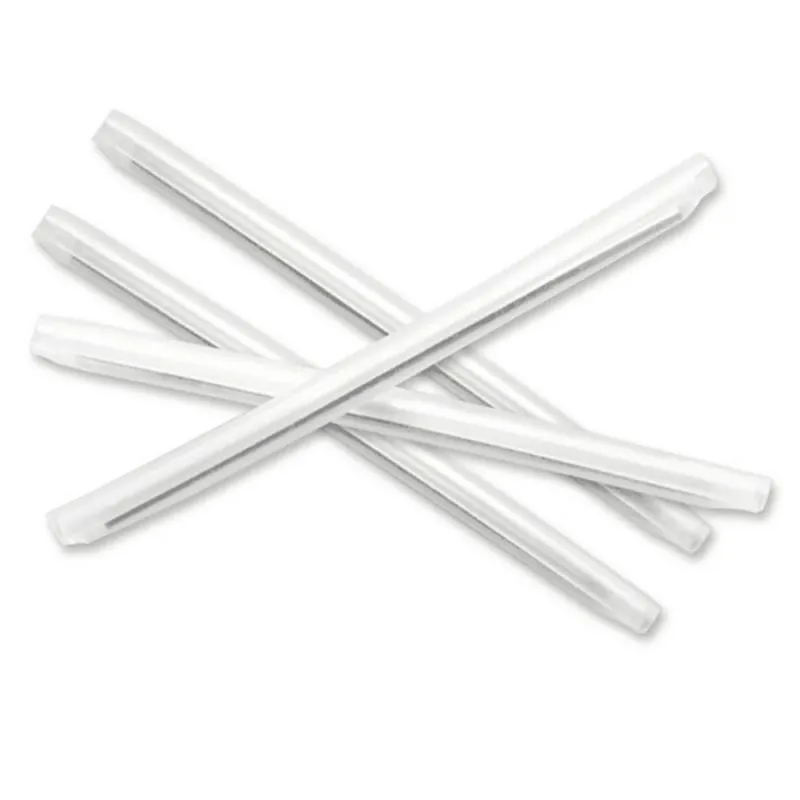

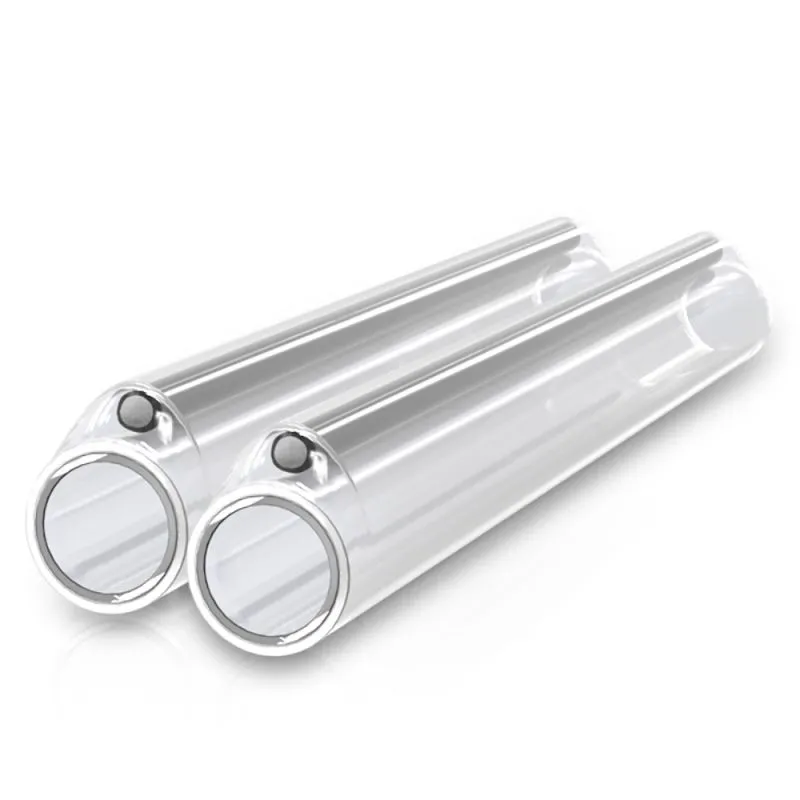

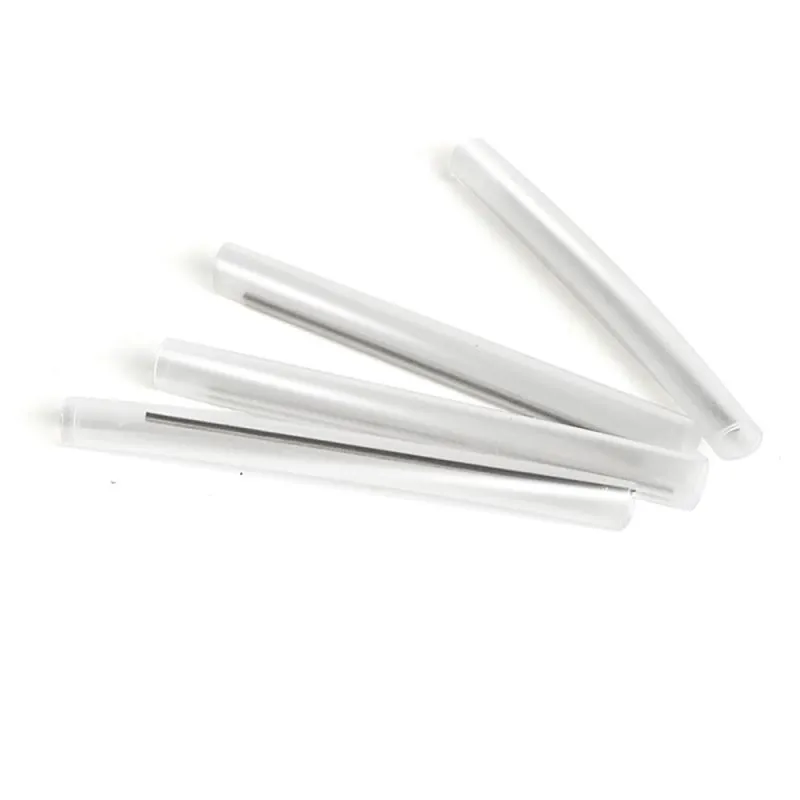

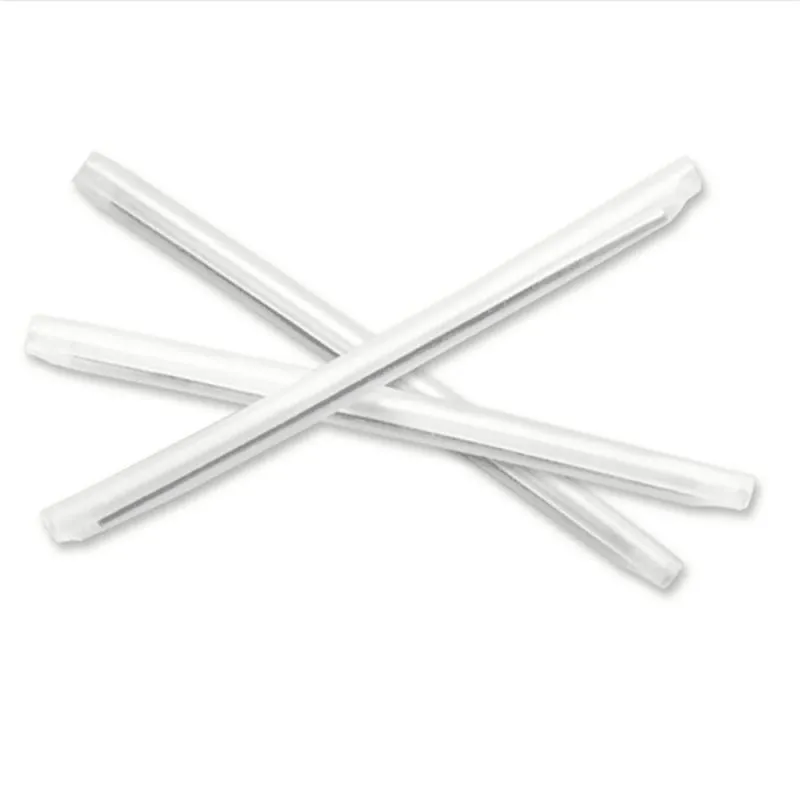

We supply fiber splice protector 1.0 x 60mm for fiber optic drop cable. To ensure a fused juncture over the spliced area, most fiber optic splice protection sleeves are best put under a heat shrink in order to reinforce their rigidity. Due to their appearance, they may be referred to as inner tube optic fiber protection sleeves. The fiber optic cable protection sleeves are used in FTTH widlely. This products is made up of cross linked polyolefin heat-shrinkable tubes, hot melt tubes and Stainless steel needle. It is specifically designed for the protection of fiber optical closure.
Share:
Industry's Most Popular Sleeve.
Length:60mm.
Diameter after heat shrinking:3.0mm.
Qty Steel Needle: 1 pcs.
Clear Outer Tube.
Pack of 100 pcs.
Specifications
1.0 x 60mm heat shrink splice protector
| Length of Tube | 60mm | Outer Tube Diameter | 3.8mm |
| Inner Tube Diameter | 1.5mm | Steel Needle Diameter | 1.0mm |
| After Recover Diameter | 3mm | Working Temperature | -55°C ~ + 130°C |
| Tensile Strength | 20MPa | Dielectric Constant | 2.5 |
| Elongation at Break | 700% | Longitudinal Change | ±5% |
| Density | 0.94g/m³ | Eccentricity | 105 |
| Dielectric Strength | 25kV/mm | Pack | 100pcs/pkg |
| Shrinking Temperature (°C) | 110 ~ 130 | Minimum Fully Recovery Temperature | 100°C |
