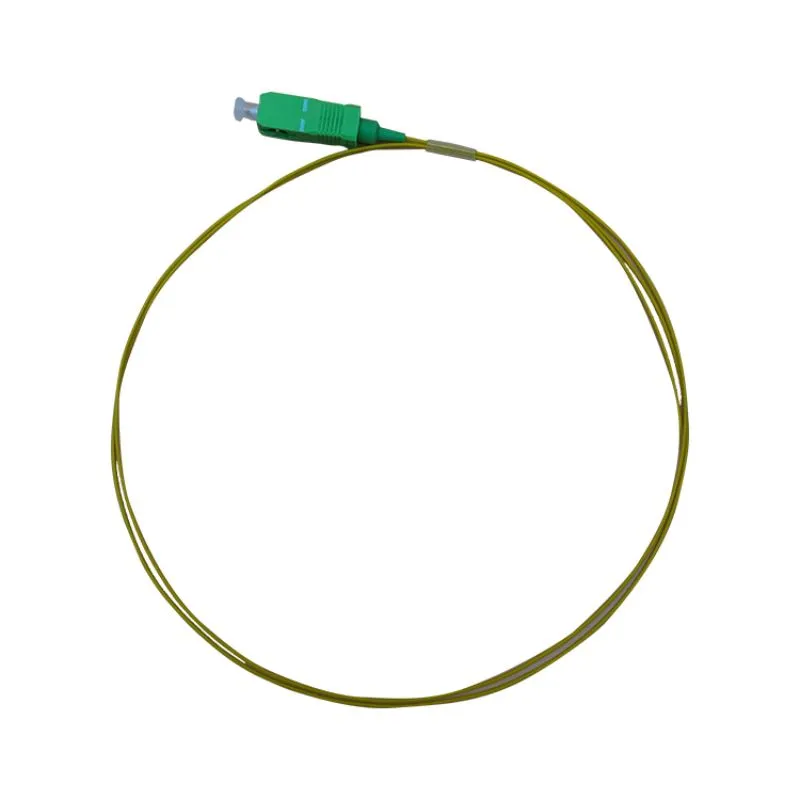

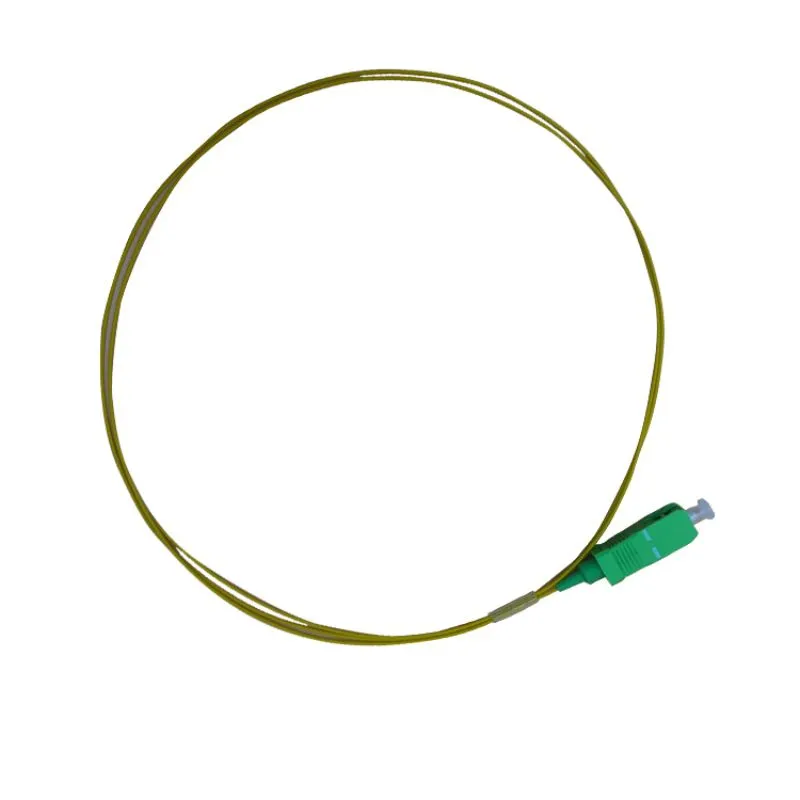

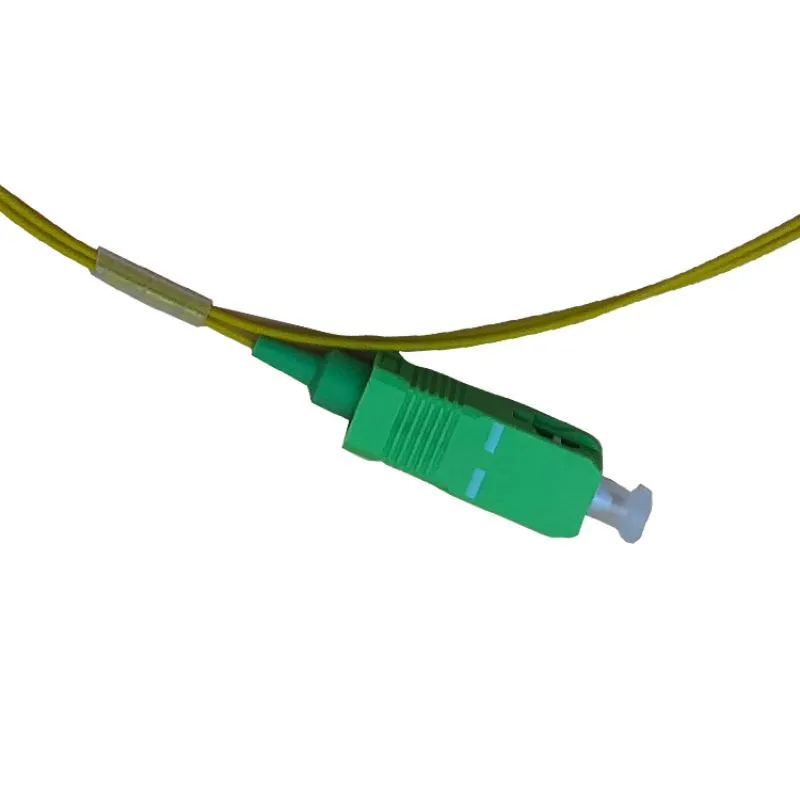

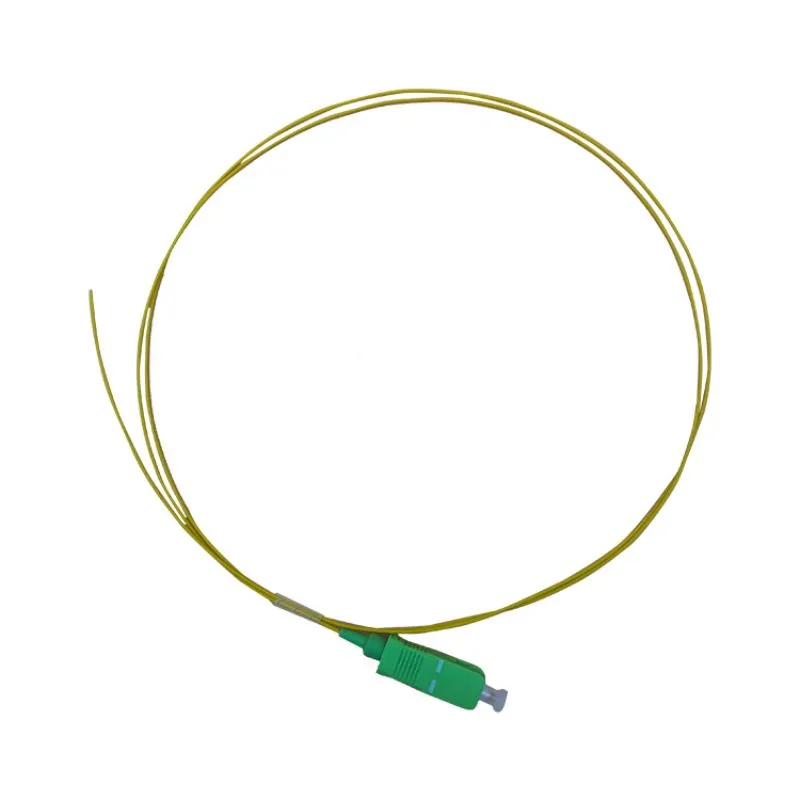

Fiber optic pigtail SC/APC Single mode 9/125 Corning 0.9mm,G657A1,1.5m Yellow Color
A fiber optic pigtail is a fiber optic cable with one end terminated with a factory-installed connector and the other end unterminated. As a result, the connector side can be connected to equipment, while the other side is fused in the case of fusion splicing and a mechanical connection in the case of mechanical splicing optical fiber cables. Fiber optic pigtails are used to connect fiber optic cables using fusion or mechanical splicing. High-quality pigtail cables, combined with proper fusion splicing techniques, provide the highest performance for fiber optic cable terminations. Fiber optic pigtails are commonly encountered in fiber optic management equipment such as an ODF (optical distribution frame), a fiber terminal box, and a distribution box.
Share:
When choosing a fiber pigtail, there are several factors to consider, including:
Compatibility: The pigtail must be compatible with the optical components that it will be connecting.
Length: The pigtail must be the correct length to accommodate the distance between the two optical components.
Connector type: The pigtail must have the same connector type as the optical components that it will be connecting.
Type fiber: there are Singlemode and multimode fiber optic pigtails. Multimode fiber optic pigtails are made of 62.5/125 or 50/125 iber cables that are terminated at one end with multimode fiber optic connectors. Fiber optic pigtails for 10G multimode fiber cables (OM3 or OM4) are also available.
Other factors: Other factors to consider may include the pigtail's performance specifications, such as its attenuation and bandwidth.
Specifications
Fiber Pigtail Specifications
| Parameter | Singlemode | Multimode |
| Insertion loss | ≤0.3dB,typical≤0.2dB | ≤0.30dB |
| Return loss | ≥45dB(PC) | ≥35dB |
| ≥50dB(UPC) | ||
| ≥60dB(APC) | ||
| Durability | ≤0.2dBtypicalchange,1000matings | |
| Repeatability | ≤0.10dB | |
| Fiber Type | Corning fiber 9um | |
| Operationtemperature | -40~+75 | |
| Storagetemperature | -40~+85 | |
| Operatingwavelength | 1310/1550nm | |
