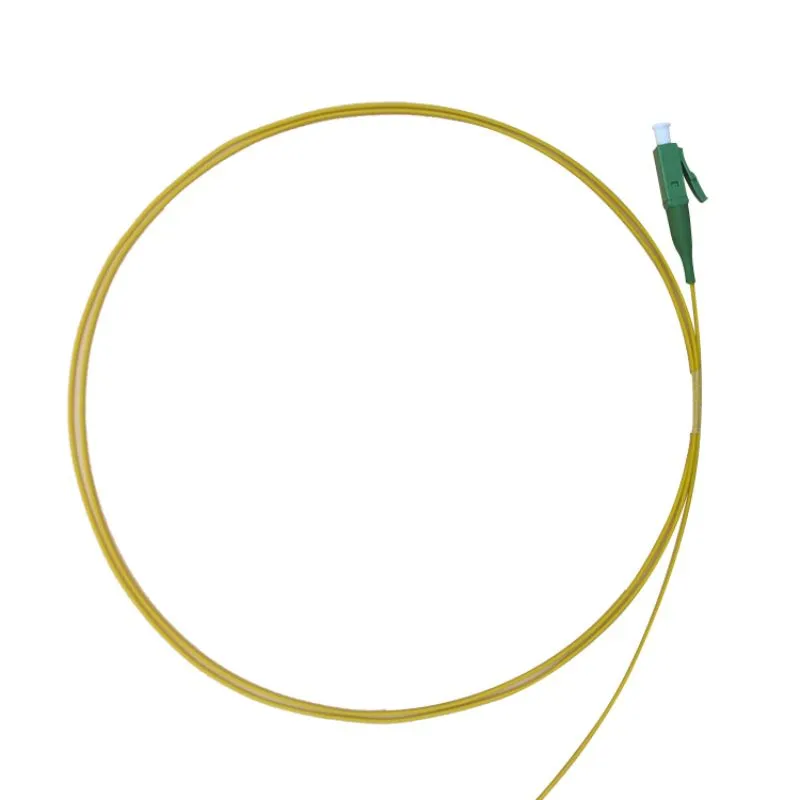

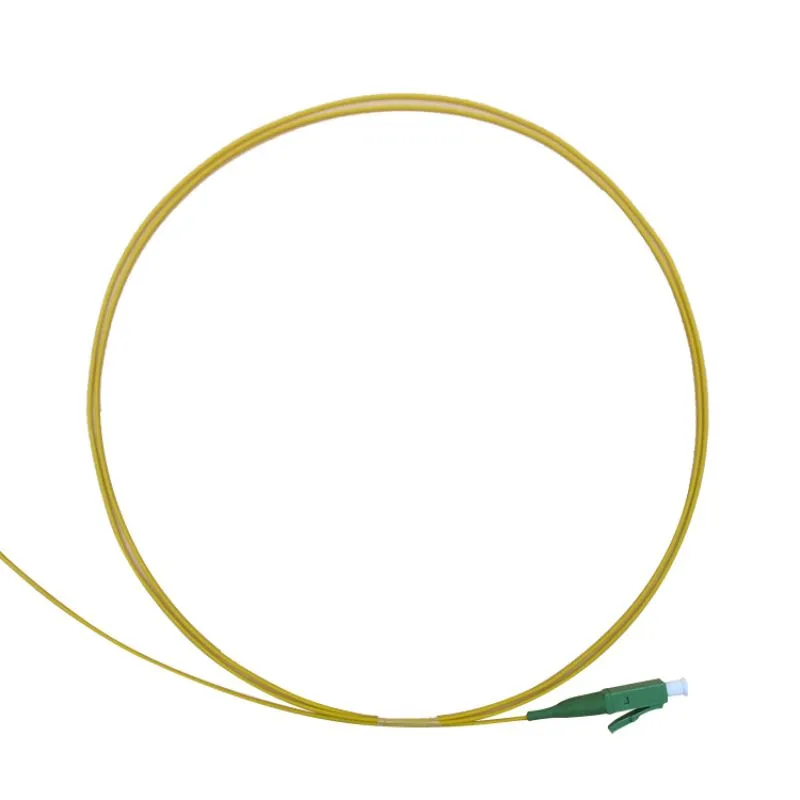

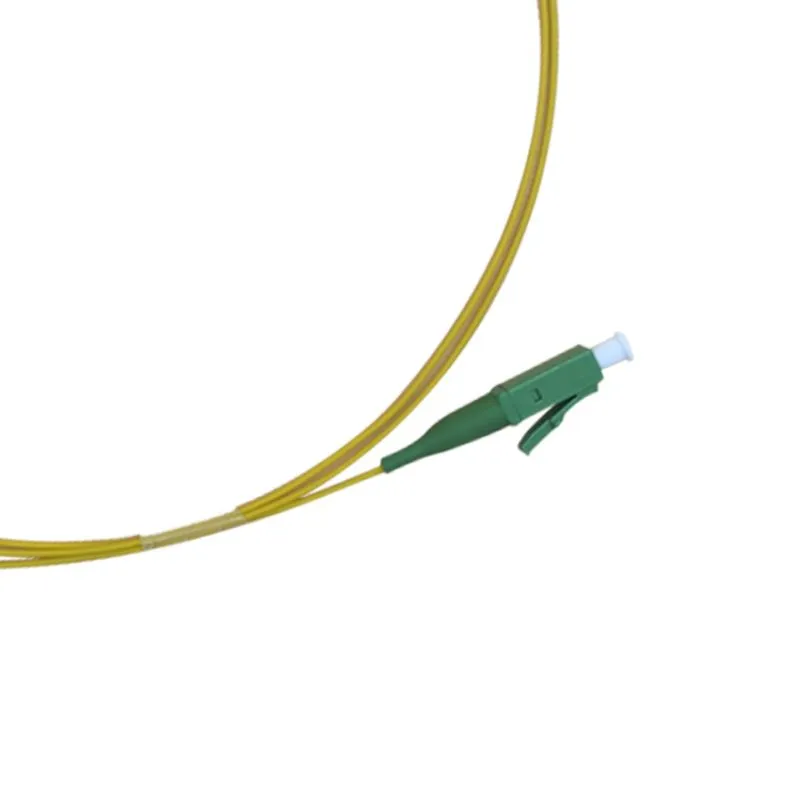

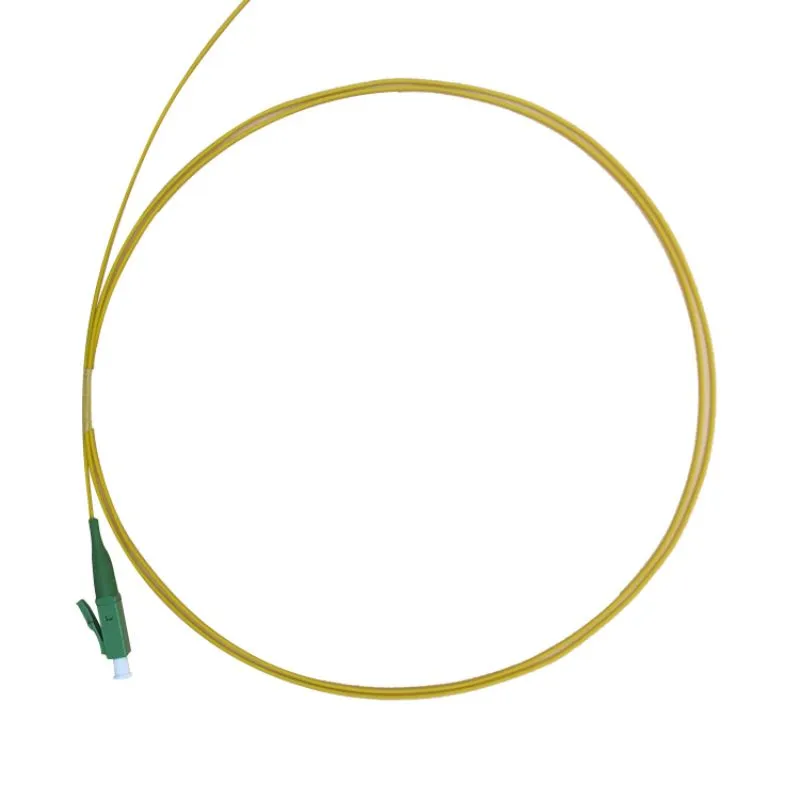

Fiber Pigtails Single mode Corning LC/APC 0.9mm,9/125 G657A1,1.5m Yellow Color
A fiber optic pigtail is a type of fiber optic cable with only one end that has a factory-terminated connector and the other end exposed as bare fiber. A fiber optic pigtail is typically used for field termination with a mechanical or fusion splicer. When compared to field-installed rapid termination or epoxy and polish connections, pre-terminated optical pigtails with connectors save time while providing improved performance and reliability.
The Fiber Optic Pigtail is normally a tight buffered fiber cable with a connector pre-terminated on one end and exposed fiber on the other. The stripped, or pre-terminated end, is intended to be connected to the terminated end of a single mode or multimode fiber through a fusion or mechanical splicing process. The Fiber Optic Pigtail can be fitted with either male or female connectors on the end opposite of the pre-terminated end. Female connectors can be mounted in a patch panel, while male connectors can be plugged into optical transceivers. We carry a whole assortment of fiber optic connectors
Share:
Fiber Pigtails LC/APC 0.9mm,9/125 Single mode Corning G657A1,1.5m Yellow Color
Low insertion loss and back reflection loss
Good exchangeabilityGood Durability
High temperature stability
Compliant to IEC, TIA/EIA, NTT and JIS specifications
Fiber Optic Pigtail allows light signal transmission with minimal return loss and low attenuation. The pre-terminated fiber reduces installation time and ensures accuracy. Make sure your network is reinforced with our Fiber Pigtails, as ours are manufactured of unsurpassed quality materials.
The LC Fiber Pigtails (APC, UPC) are available in both single and multimode versions. Of courese we product fiber pigtails with SC,FC,ST,MPO connectors. Jacket of Fiber Pigtails come is LSZH, protecting the tight buffers from damage. If installed in a high-density application, the outer jacket can be easily removed to accommodate a tighter bend radius for the pigtails.
Specifications
Fiber Pigtail Specifications
| Parameter | Singlemode | Multimode |
| Insertion loss | ≤0.3dB,typical≤0.2dB | ≤0.30dB |
| Return loss | ≥45dB(PC) | ≥35dB |
| ≥50dB(UPC) | ||
| ≥60dB(APC) | ||
| Durability | ≤0.2dBtypicalchange,1000matings | |
| Repeatability | ≤0.10dB | |
| Fiber Type | Corning fiber 9um | |
| Operationtemperature | -40~+75 | |
| Storagetemperature | -40~+85 | |
| Operatingwavelength | 1310/1550nm | |
