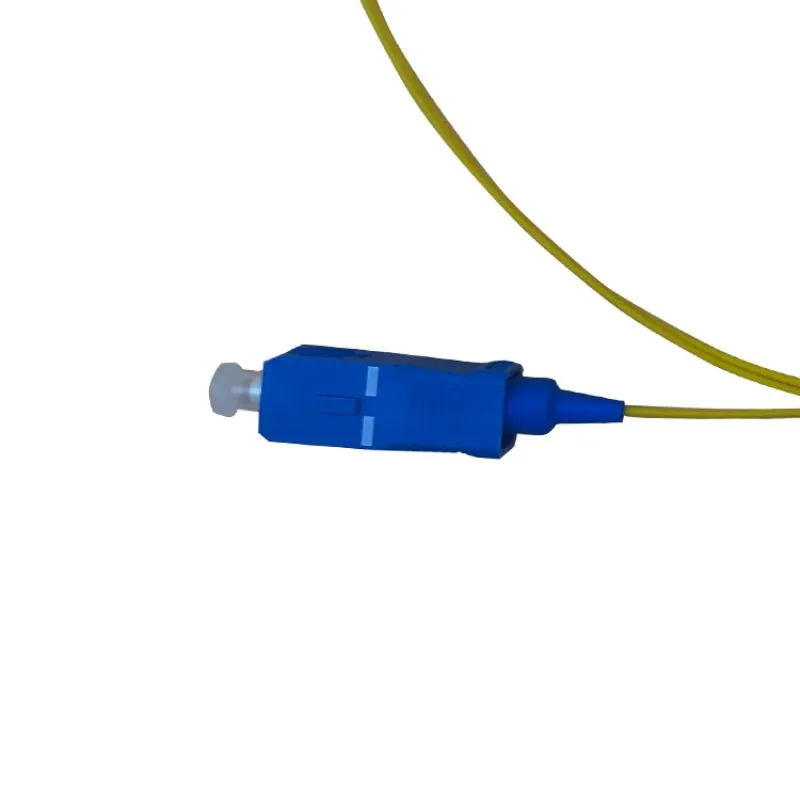

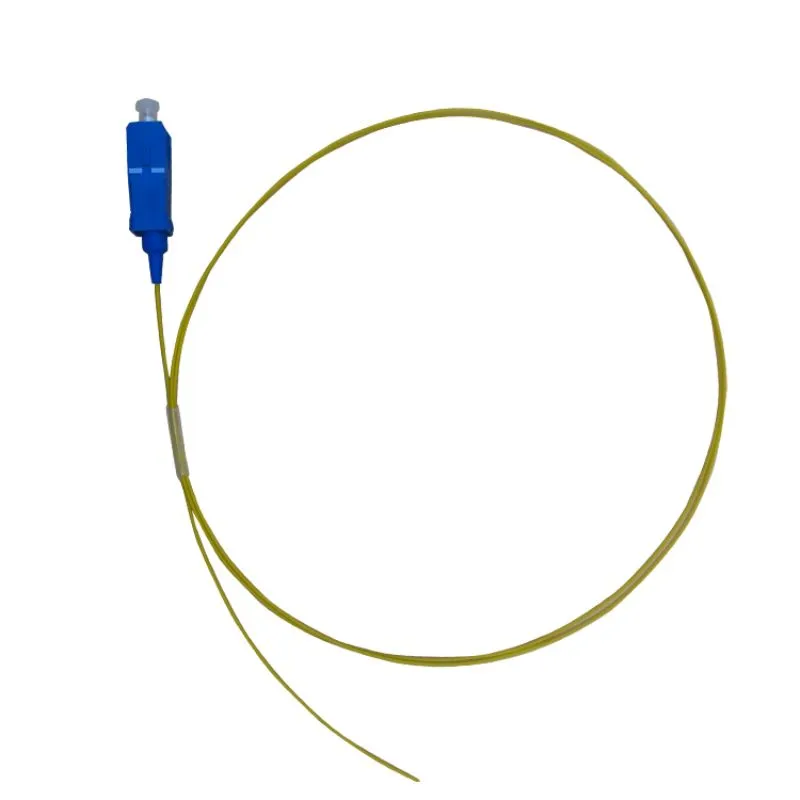

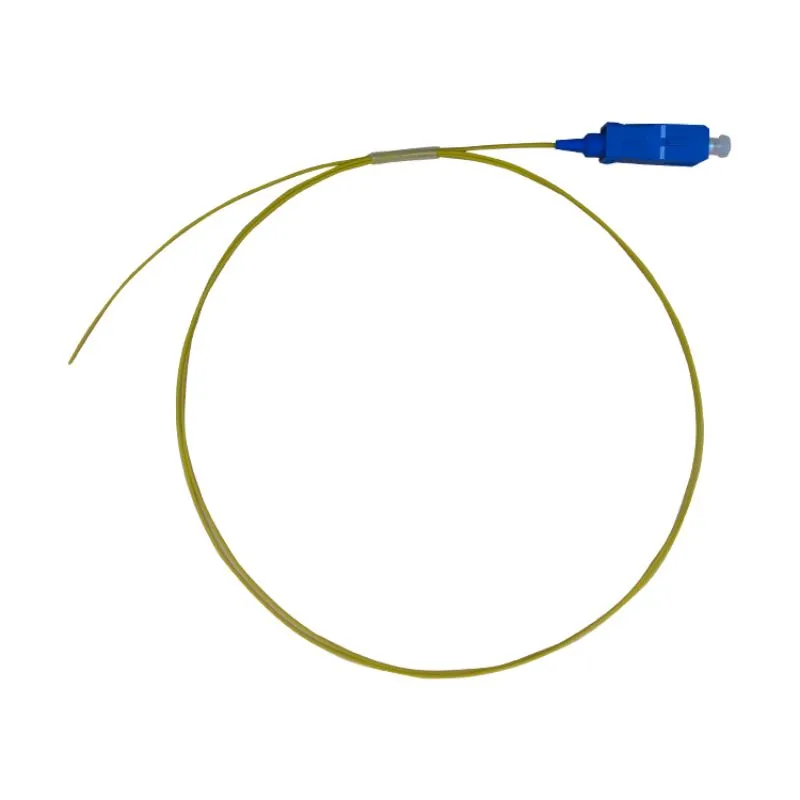

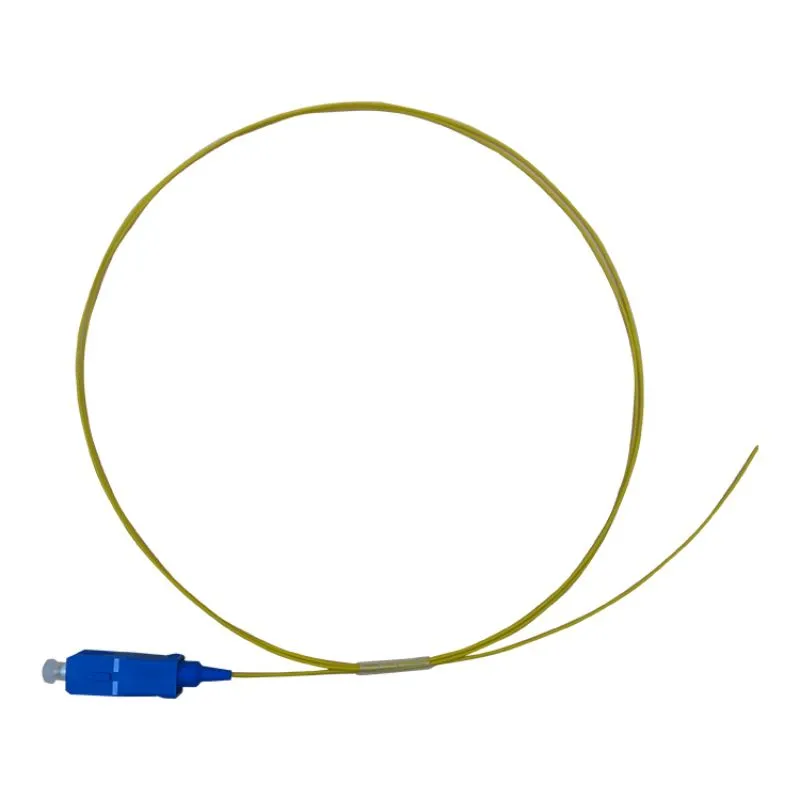

Fiber optic Pigtails SC/UPC 0.9mm,9/125 Single mode Corning G657A1,1.5m Yellow Color
We can provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.
Share:
Types of Fiber
Singlemode (colored yellow or white ) and multimode (colored aqua or violet) fiber optic pigtails are available. Multimode fiber optic pigtails are made of 62.5/125 or 50/125.For example OM3,0M4 and OM5. Fiber optic pigtails for 10G multimode fiber cables (OM3 or OM4) are also available. Typically, the jacket color of 10G OM3 and OM4 fiber optic pigtails is aqua. Singlemode fiber pigtail cables are made of 9/125 micron singlemode fiber cable and are terminated at one end with single-mode fiber connectors.
Types of Fiber Pigtail Connectors
There are various types of pigtail cable connectors terminated at the end, such as LC fiber pigtails, SC fiber pigtails, ST fiber pigtails, FC fiber pigtails, MT-RJ fiber pigtails, E2000 fiber pigtails, and so on. Each has its own advantages in diverse applications and systems due to their different architectures and looks.
LC Fiber Optic Pigtail: A non-optical disconnect connector with a 1.25mm pre-radiused zirconia or stainless alloy ferrule, the LC pigtail cable connector is cost-effective for FTTH.
SC Fiber Optic Pigtail: A non-optical disconnect connector with a 2.5mm pre-radiused zirconia or stainless alloy ferrule, the SC pigtail cable connector is cost-effective for usage in FTTX, CATV,test, and measurement applications.
FC Fiber Optic Pigtail: FC fiber pigtails benefit from the metallic body of FC optical connections, which have a screw-type structure and high-accuracy ceramic ferrules. FC fiber optic pigtails and related items are widely used in a variety of applications.
ST Fiber Optic Pigtail: The most common connector for multimode fiber optic LAN applications is the ST pigtail connector. It has a ferrule with an extended 2.5mm diameter composed of ceramic (zirconia), stainless alloy, or plastic.As a result, SC fiber pigtails are commonly used in telecommunications, industry, medical, and sensor applications.
Fiber optic pigtails, like fiber optic patch cords, are classified as UPC or APC. SC/APC pigtail, LC/APC pigtail, and SC/UPC and LC/UPC pigtail are the most widely utilized varieties.
Specifications
| Parameter | Singlemode | Multimode |
| Insertion loss | ≤0.3dB,typical≤0.2dB | ≤0.30dB |
| Return loss | ≥45dB(PC) | ≥35dB |
| ≥50dB(UPC) | ||
| ≥60dB(APC) | ||
| Durability | ≤0.2dBtypicalchange,1000matings | |
| Repeatability | ≤0.10dB | |
| Fiber Type | Corning fiber 9um | |
| Operationtemperature | -40~+75 | |
| Storagetemperature | -40~+85 | |
| Operatingwavelength | 1310/1550nm | |
