1X9 Fiber Optic PLC Splitter Unbalanced

XI’AN OPT Communication Co.,Ltd is one of the largest and best 1x 9 fiber optic plc splitter unbalanced manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized 1x9 fiber optic plc splitter unbalanced in stock with our factory. Also, free sample is also available if necessary.

Our 1×9 splitter is made by 1*9 PLC chip, not by fused coupler. Now Spring Optical can make 1×9 spliter in unbalanced split ratio like 85/15, 90/10, 70/30, 60/40,80/20, details please see below specification.

Inquire Now Next Product

Description Specifications Inquiry

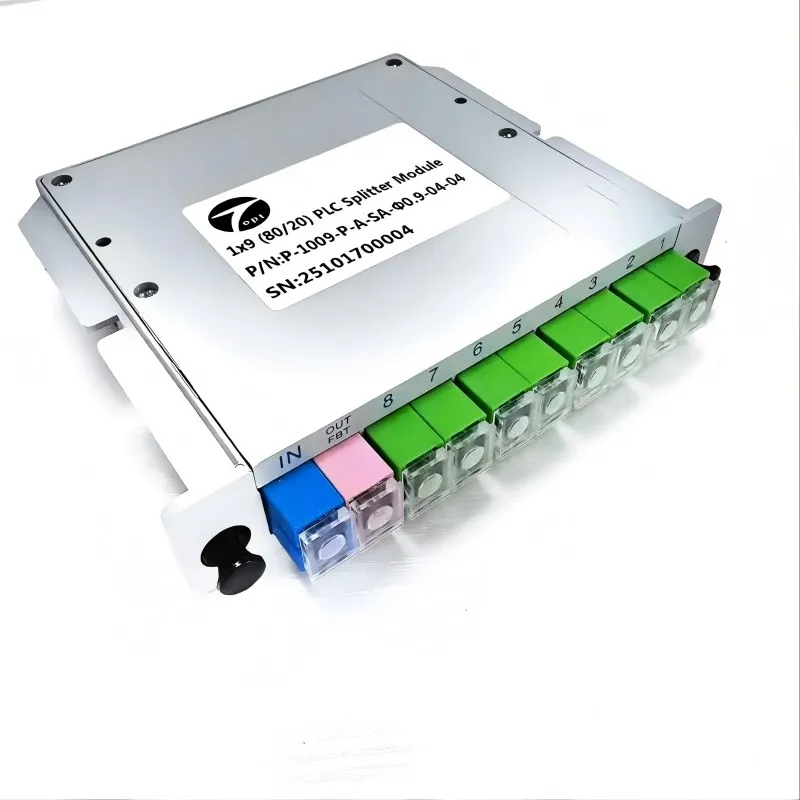

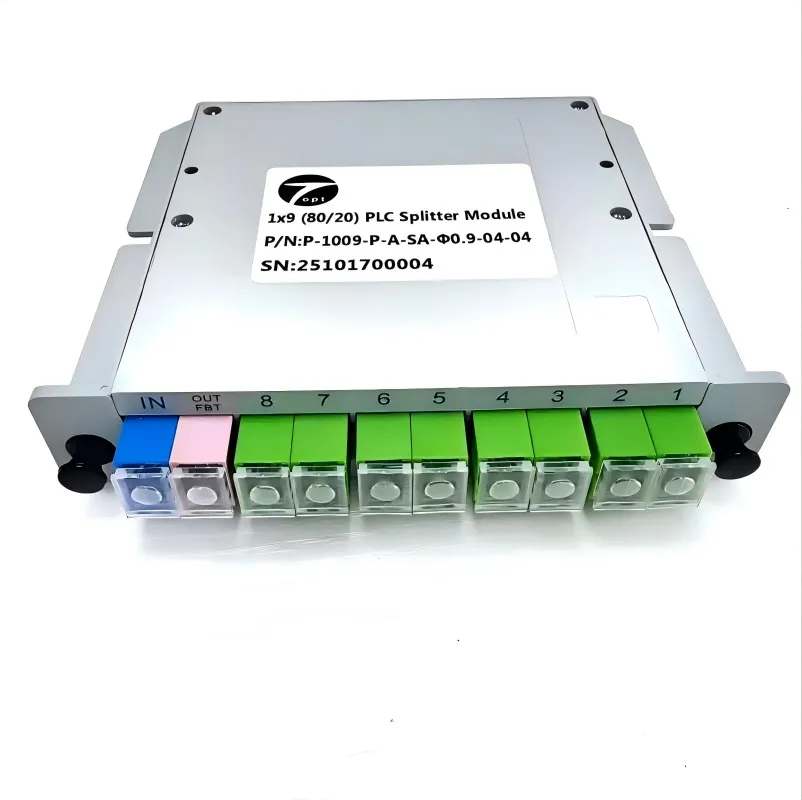

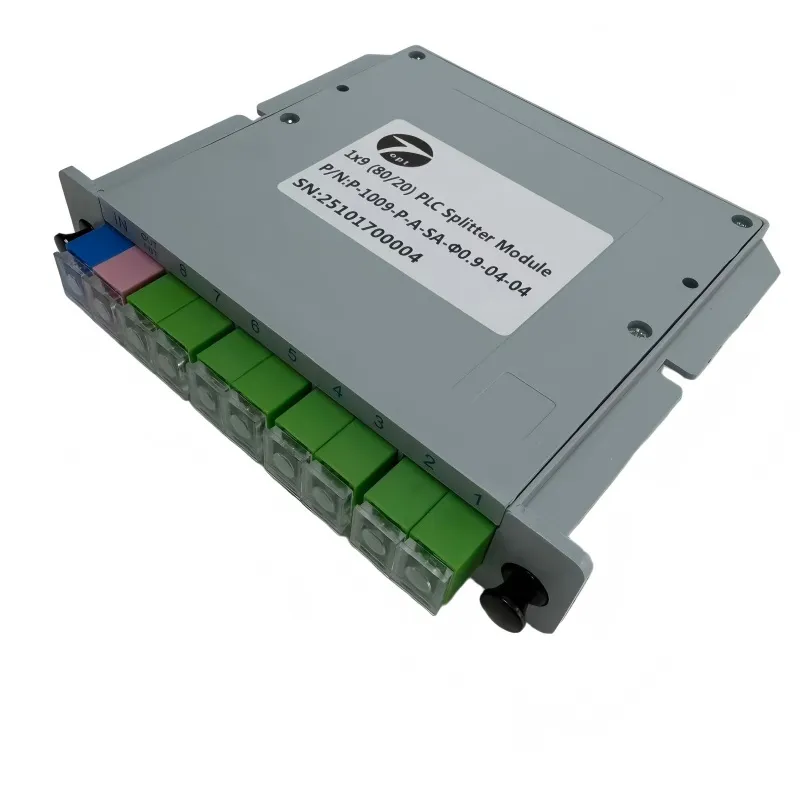

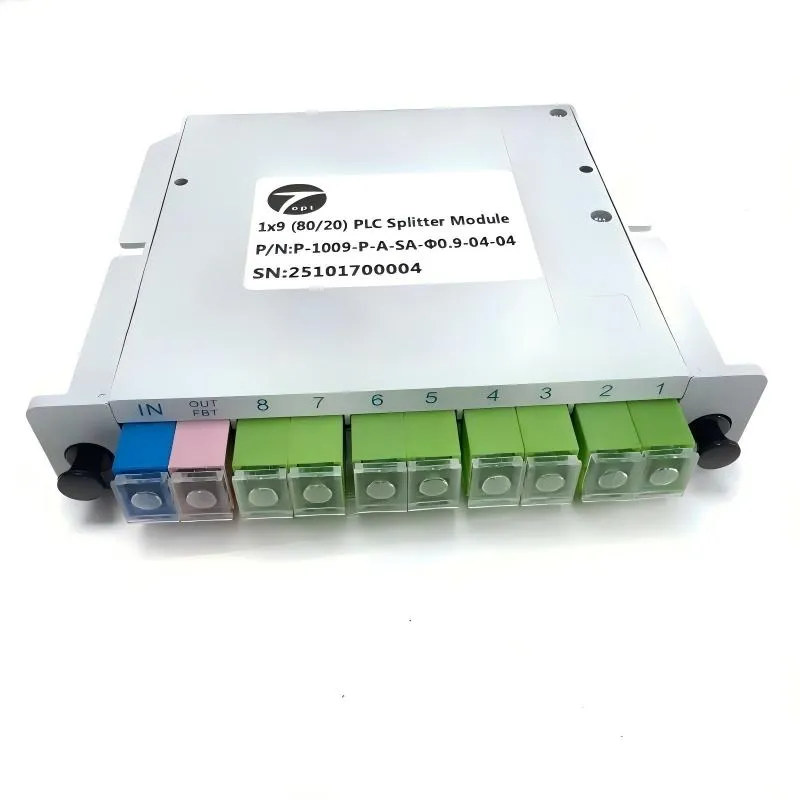

1x 9 Unbalanced LGX Fiber PLC Splitter, Singlemode, 900μm Fiber, SC/APC Connector

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Blockless PLC splitter has stronger fibre protection than bare fibre splitter, which is a miniaturisation result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.

Specifications

Parameter	Splitting Ratio	IL (dB) (CH1)	IL (dB) (CH2~5)	PDL (dB)
1x5 SC/APC	20/80	8.6	8.6	0.4
	50/50	4.3	10.9	0.4
	75/25	2.5	15.2	0.4
	85/15	1.8	15.7	0.4
Parameter	Splitting Ratio	IL (dB) (CH1)	IL (dB) (CH2~9)	PDL (dB)
1x9 SC/APC	98/1	0.5	32.2	0.3
	98/2	0.55	29	0.3
	95/5	0.7	24.8	0.3
	90/10	1	21.6	0.3
	85/15	1.25	19.6	0.3
	80/20	1.4	18.5	0.3
	75/25	1.85	17.4	0.3
	70/30	2.1	16.4	0.3
	65/35	2.5	15.8	0.3
	60/40	2.8	15.3	0.3
	55/45	3.3	14.6	0.3
	50/50	3.7	14.2	0.3
Operating Wavelength (nm)	1260~1650
Test Wavelength (nm)	1310/1550
Return Loss (dB)	≥55（APC or NC）≥50（UPC）
Directivity (dB)	≥55
Fiber Type	G657A1(Default)
Fiber Length (cm)	According to customer requirements
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
