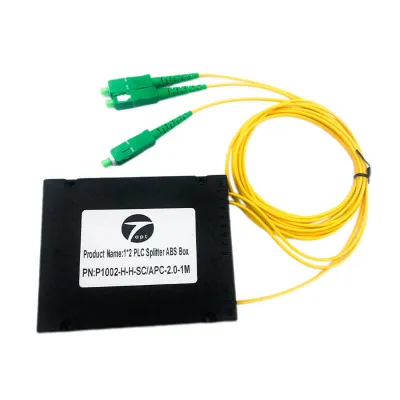

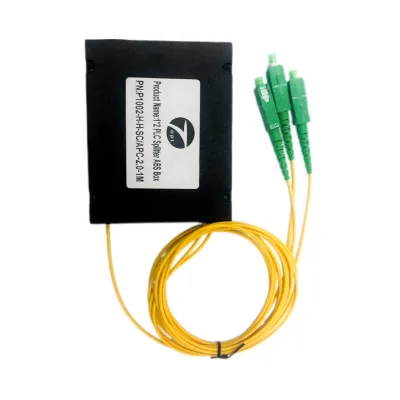

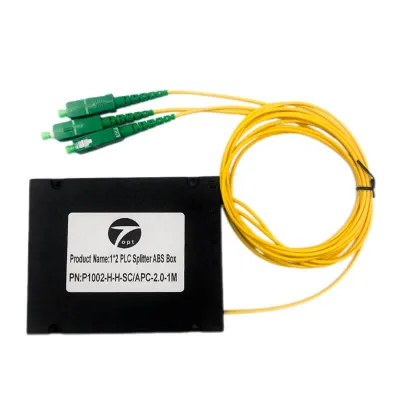

Fiber optic splitter 1x2 is a plastic module called an ABS box with ruggedized fiber jackets of 2mm and up to 3mm with no connectors. It is Single Mode fiber optic splitter. XI'AN OPT Communication CO.,Ltd offers a variety of box and cassette type fiber optic splitter modules and products.
Fiber optic splitter 1x2 PLC (Planar Lightwave Circuit) is engineered for precision signal distribution in modern fiber optic systems. Featuring ultra-low insertion loss (≤3.6 dB) and industry-leading uniformity (≤0.4 dB), it ensures seamless performance in FTTH, PON, 5G backhaul, and CATV networks. Compatible with wavelengths from 1260–1650 nm, this splitter supports single-mode fiber and operates flawlessly in extreme temperatures (-40°C to +85°C)
Share:
Fiber optic splitter 1x2 C/APC in ABS Box with its compact structure and tiny volume, is very easy to use and can be deployed in a variety of locations, including 19-inch racks, cross-connect cabinets, and other devices. The optical fiber splitter divides the fiber optic light into numerous sections at a specific ratio. The ABS module fiber optic splitter takes minimal distortion during usage due to its small form and bending insensitive cables, ensuring stable optical transmission.
Broad Wavelength Customization
Standard center wavelengths: 1310/1490/1550 nm (FTTH/PON)
Specialized options: 532–2330 nm for laser systems, amplifiers, and sensors.
Superior Optical Performance
Insertion loss as low as 3.6 dB (1x2) with polarization-dependent loss (PDL) ≤0.1 dB .
Temperature stability: ≤0.3 dB fluctuation across -40°C to +85°C .
Flexible Packaging & Port Configurations
ABS box, steel tube, LGX cassette, or custom housing for harsh environments.
Split ratios: 1x2.
Ruggedized Design
Corrosion-resistant materials with 25-year lifespan (Telcordia GR-1209 compliant) .
Tensile load resistance: 5N for reliable field deployment
Applications
Fiber optic splitter 1x2 Applications:
FTTH Networks: Enable high-density signal distribution with 1x2 splits .
5G Infrastructure: Low-latency backhaul connectivity for mmWave and small-cell networks.
CATV Systems: APC connectors minimize reflection for 1550 nm broadcast signals.
Fiber Lasers & Amplifiers: Custom 1064/2004 nm splits for industrial and medical systems
Specification
Fiber optic splitter 1x2 Single Mode SC/APC in ABS Box Specification
| Package type | ABS box | Split Ratio | 1x 2 |
| Fiber Type | G.657A1 | Operating Wavelength | 1260~1650nm |
| Connector Type | SC/APC | Input/Output Diameter | 2.0mm or 3.0mm |
| Input/Output Length | 1.5m | Insertion Loss | ≤ 16.9dB |
| Insertion Loss Uniformity | ≤ 1.5dB | Return Loss | 55dB |
| Directivity | ≥ 55dB | Polarization Dependent Loss | ≤ 0.3dB |
| Fiber Mode | Singlemode | Wavelength Dependent Loss | ≤ 0.5dB |
| Temperature Dependent Loss | <0.5dB | Temperature | Operating -40 to 85°C |
Ordering Informaton
| Split Ratio | Connector | Ferrule Type | Fiber | Splitter | OD(mm) | Length(m) |
| 1x2 | SC | UPC | SM | Tube type | 0.9 | 0.5 |
| 1x4 | LC | APC | OM1 | Cassette Type | 2 | 1 |
| 1x8 | FC | 0M2 | Module Type | 3 | 1.5 | |
| 1x16 | ST | 0M3 | ... | ... | ||
| 1x32 | 0M4 | |||||
| 1x64 |
Why Choose our fiber optic splitter 1x2 ?
Tailored Solutions: Customize split ratios, wavelengths, connectors, and fiber lengths (0.3m–2m) .
Rapid Prototyping: 3-day sample delivery for OEM/ODM projects.
Certifications: RoHS, CE, and Telcordia-compliant manufacturing
FAQ
Q: Can I order fiber optic splitter 1x2 with APC connectors for CATV systems?
A: Yes! We provide FC/APC or SC/APC connectors to minimize back reflection in high-power TV signal transmission.
Q: Do you support multimode fiber splitters?
A: Our standard products are optimized for single-mode fibers. Contact with us for multimode splits (850/1300 nm).
Q: What’s the lead time for a custom fiber optic splitter 1x2 ?
A: Standard orders ship in 7–10 days. Rush services available.
