1x 4 Fiber optic PLC Splitter, Singlemode, SC/UPC Connector
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It is designed for splitting a single input signal at 1260-1650nm equally into four output signals, and is available with SC/UPC connector. These highly stable components perform superbly across temperature and wavelength providing low insertion loss, low input polarization sensitivity, excellent uniformity, and low return loss in 4-port configurations.

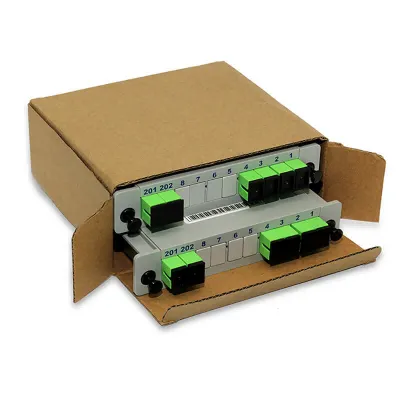

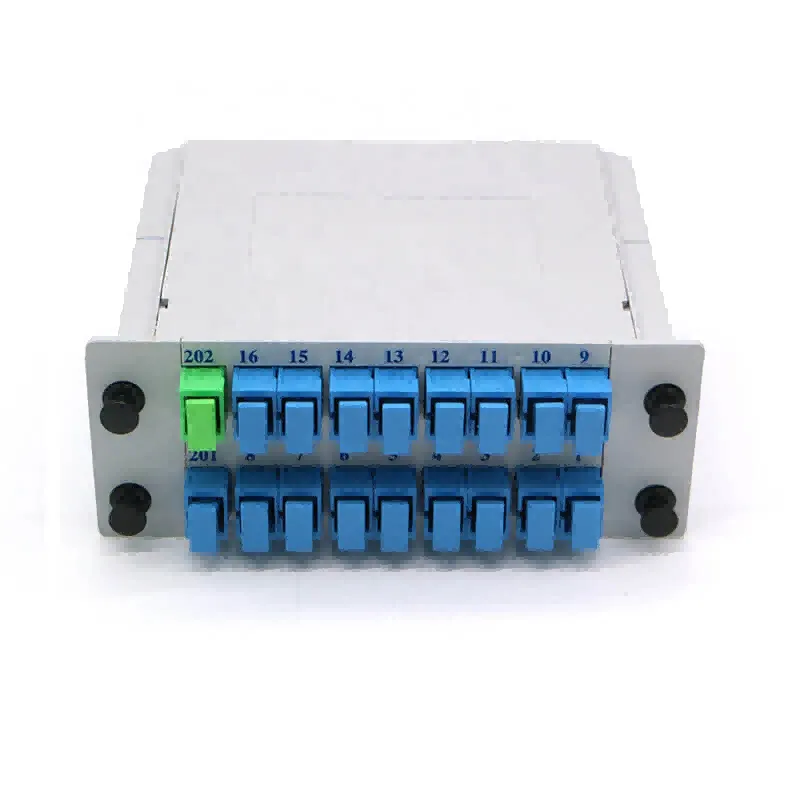

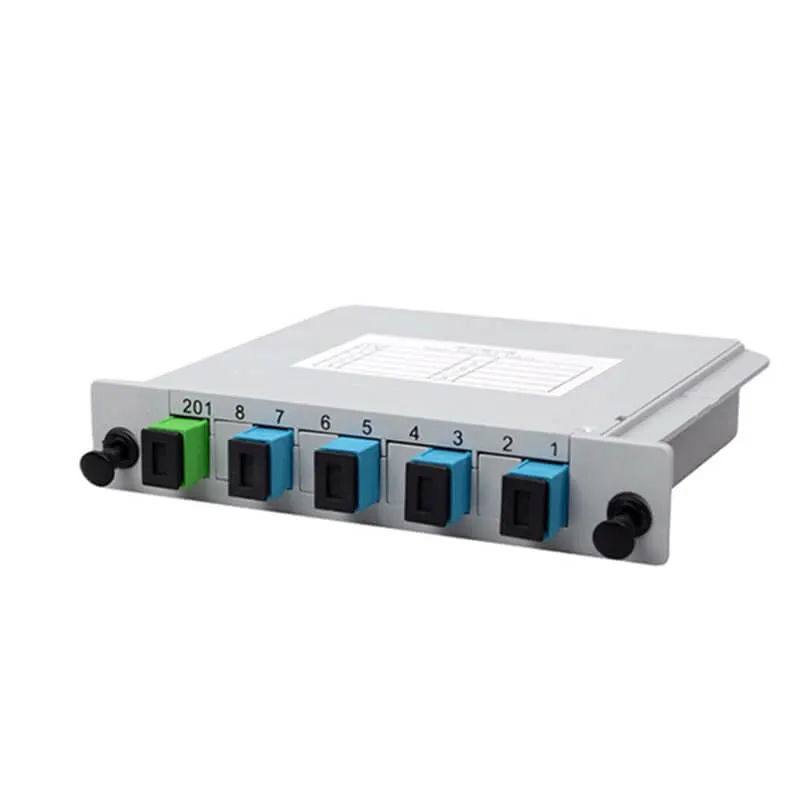

OPT provides a various of 1xN and 2xN PLC splitters in LGX Box type. The PLC splitters in Mini plug-in LGX Box with its compact structure and small volume, are very convenient for use and can be installed in many places, such as: 19 inch racks, cross connect cabinet and some other devices. For more information about Fiber PLC Splitter in Mini plug-in LGX Box Type,please contact with us by email:[email protected].
Share:
Features of 1x4 PLC splitter:
Split 1260nm to 1650nm Signals at 25:25:25:25 Coupling Ratio
≤7.4dB Low Insertion Loss and ≤0.2dB Low Polarization Dependent Loss
G.657A1 Bend Insensitive Fibers for Low Bending Loss
Housing, Split Ratio, and Connector Options can be Customized.
Applications
1X4 PLC splitter LGX Cassette Type SC/UPC is widely Used in FTTX Projects and Data Communication Centers.
PLC splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON Interface to be shared among many subscribers as following:
Fiber optical communication system
Fiber optical sensors
CATV System
LAN System
WAN System
Specification
Technical Parameter of PLC splitter 1x4 SC/UPC:
| Package Style | LGX Cassette | Configuration Type | 1x 4 |
| Fiber Type | G.657A1 | Operating Wavelength | 1260~1650nm |
| Connector Type | SC/UPC | Input/Output Fiber Diameter | 0.9mm |
| Input/Output Fiber Length | 1.5m | Insertion Loss | ≤ 16.9dB |
| Insertion Loss Uniformity | ≤ 1.5dB | Return Loss | 55dB |
| Directivity | ≥ 55dB | Polarization Dependent Loss | ≤ 0.3dB |
| Fiber Mode | Singlemode | Wavelength Dependent Loss | ≤ 0.5dB |
| Temperature Dependent Loss | <0.5dB | Temperature | Operating -40 to 85°C |
Ordering Informaton
| Configuration | Connector | Ferrule Type | Fiber | Splitter | Jacket | Diameter(mm) | Length(m) |
| 1x2 | SC | UPC | SM | Tube type | Material | 0.9 | 0.5 |
| 1x4 | LC | APC | OM1 | Cassette Type | PVC | 2 | 1 |
| 1x8 | FC | 0M2 | Module Type | LSZH | 3 | 1.5 | |
| 1x16 | ST | 0M3 | ... | ... | |||
| 1x32 | 0M4 | ||||||
| 1x64 |
