Fiber optic splitter 1x8 is one of fiber optic splitters. It is also called PLC. PLC splitter is based on PLC (Planar Lightwave Circuit) technology and it is suitable for high density applications. It is possible for the transmission power at each splitter output port to be the identical, simplifying network architecture and lowering expenses. By allowing a single PON Interface to be shared by multiple subscribers, optical splitters have played important role in passive optical networks. The optical splitter divides the fiber optic
signals into numerous sections at a specific ratio. The PLC splitter takes minimal distortion during usage due to its small form and bending insensitive cables, ensuring stable optical transmission.
The Fiber optic splitter PLC 1x8 is singlemode with 1 input and 8 output fibers with an even split ratio across all fibers regardless of input wavelength. The PLC Splitter is available with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Connectorized PLC fiber optic splitters are available with your choice of fiber optic connectors, SC,FC,LC,as well as ST.
Share:
Fiber optic splitter 1x8 Description:
Low excess loss
Excellent directivity
Good channel-to-channel uniformity
Low PDL
High cost-effectiveness
High environmental and mechanical stability

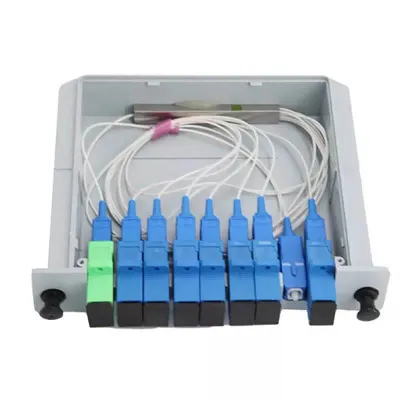

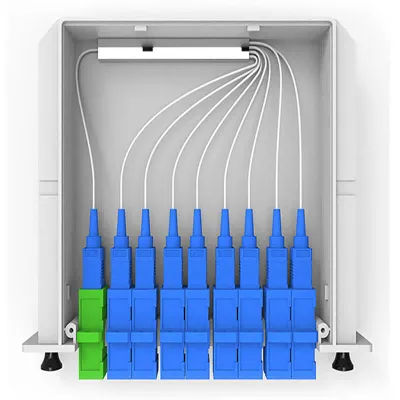

High Quality PLC design features a protective metal casing around the fibers
PLC splitting mechanism divides input signal into equal parts across all output fibers
900µm loose tube fiber for easy stripping, splicing, or terminating
Operating & Storage Temperature: -40 to 85°C (-40 to 185°F)
Wavelength: 1260nm / 1650nm
Applications
Fiber optic splitter 1x8 Applications
Fiber optical communication system
Fiber optical sensors
CATV System
LAN System
WAN System
Specification
Fiber optic splitter 1x8 technical parameters:

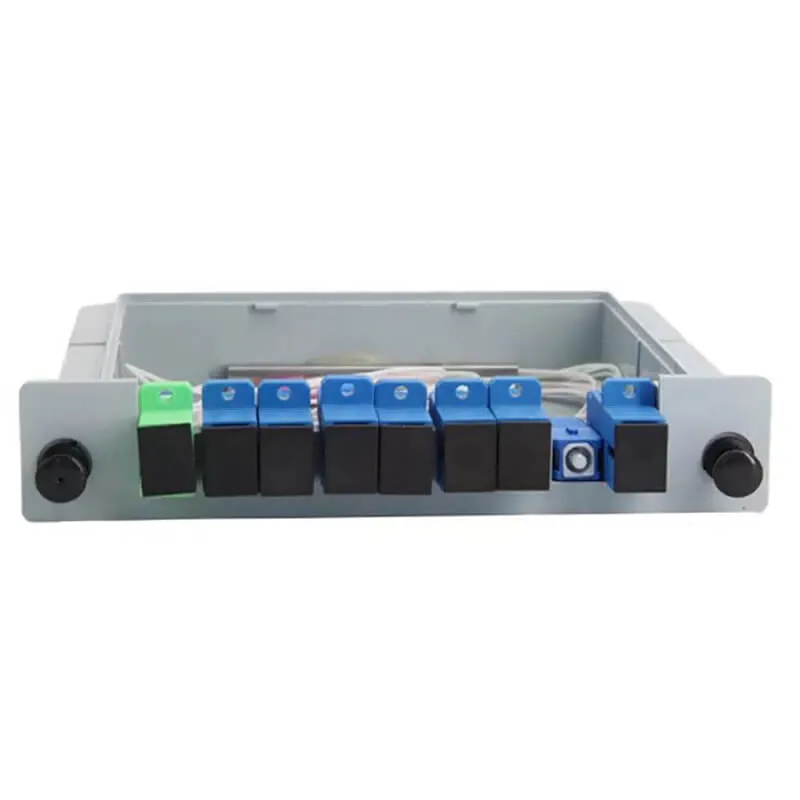

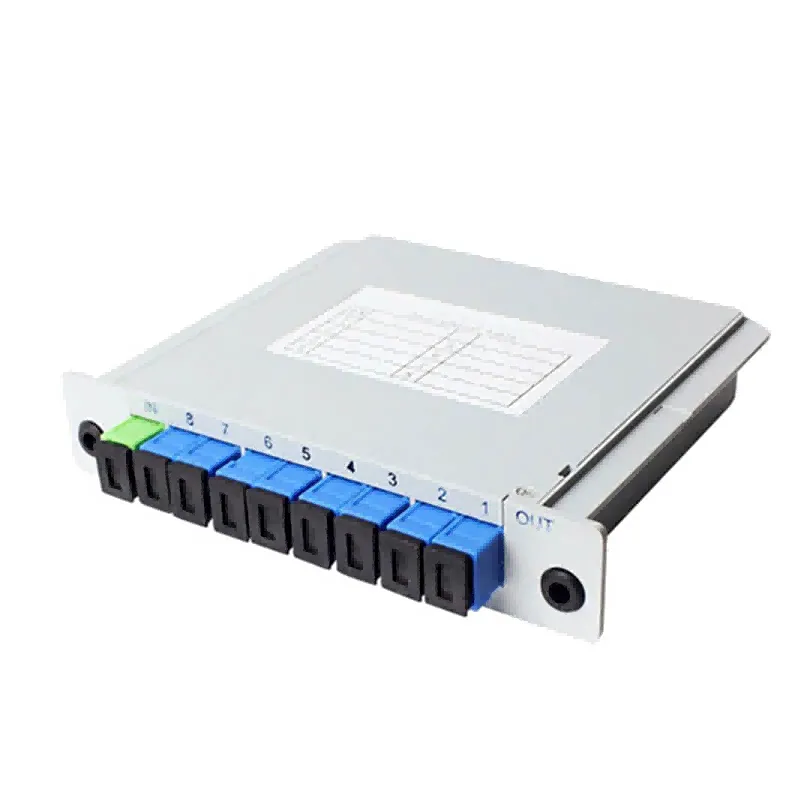

| Package Style | LGX Cassette | Configuration Type | 1x 8 |
| Fiber Type | G.657A1 | Operating Wavelength | 1260~1650nm |
| Connector Type | SC/UPC | ||
| Split Ratio | Symmetrical | Input/Output Fiber Diameter | 0.9mm |
| Input/Output Fiber Length | 1.5m | Insertion Loss | ≤ 16.9dB |
| Insertion Loss Uniformity | ≤ 1.5dB | Return Loss | 55dB |
| Directivity | ≥ 55dB | Polarization Dependent Loss | ≤ 0.3dB |
| Fiber Mode | Singlemode | Wavelength Dependent Loss | ≤ 0.5dB |
| Temperature Dependent Loss | <0.5dB | Temperature | Operating -40 to 85°C |
Ordering Informaton
| Configuration | Connector | Ferrule Type | Fiber | Splitter | Jacket | Diameter(mm) | Length(m) |
| 1x2 | SC | UPC | SM | Tube type | Material | 0.9 | 0.5 |
| 1x4 | LC | APC | OM1 | Cassette Type | PVC | 2 | 1 |
| 1x8 | FC | 0M2 | Module Type | LSZH | 3 | 1.5 | |
| 1x16 | ST | 0M3 | ... | ... | |||
| 1x32 | 0M4 | ||||||
| 1x64 |
