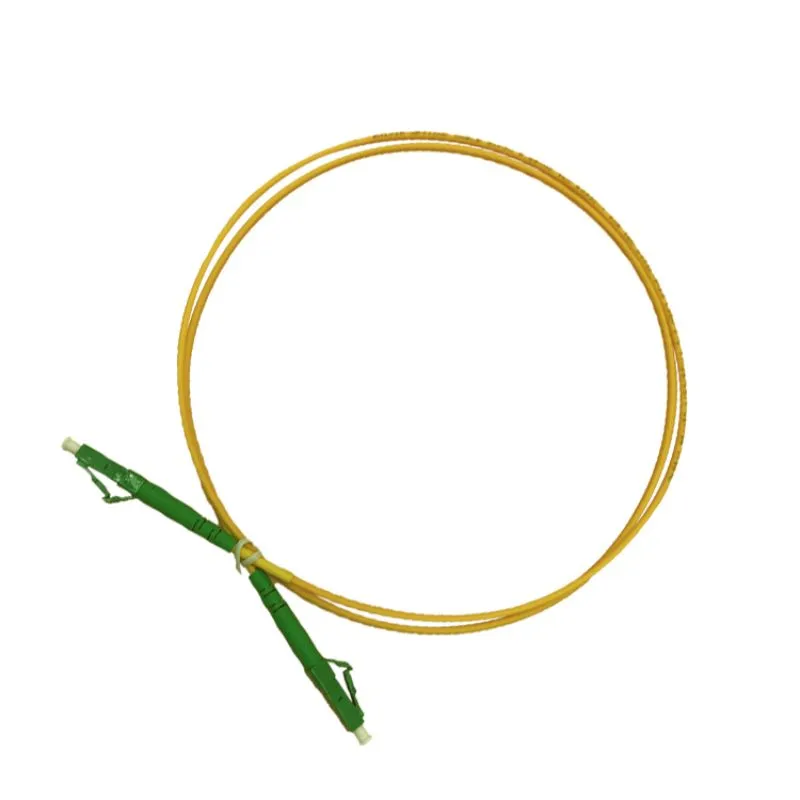

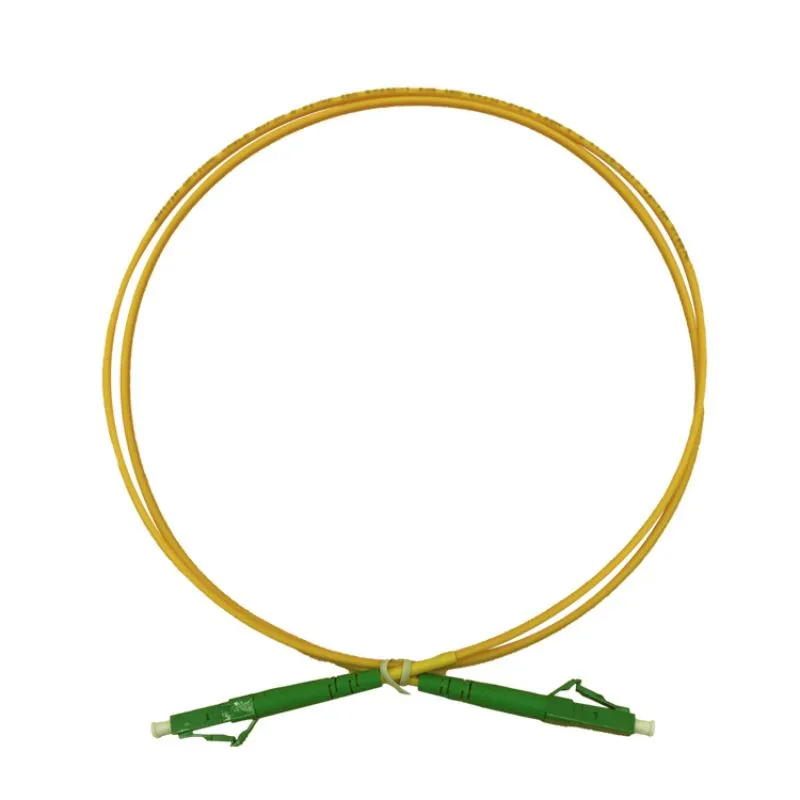

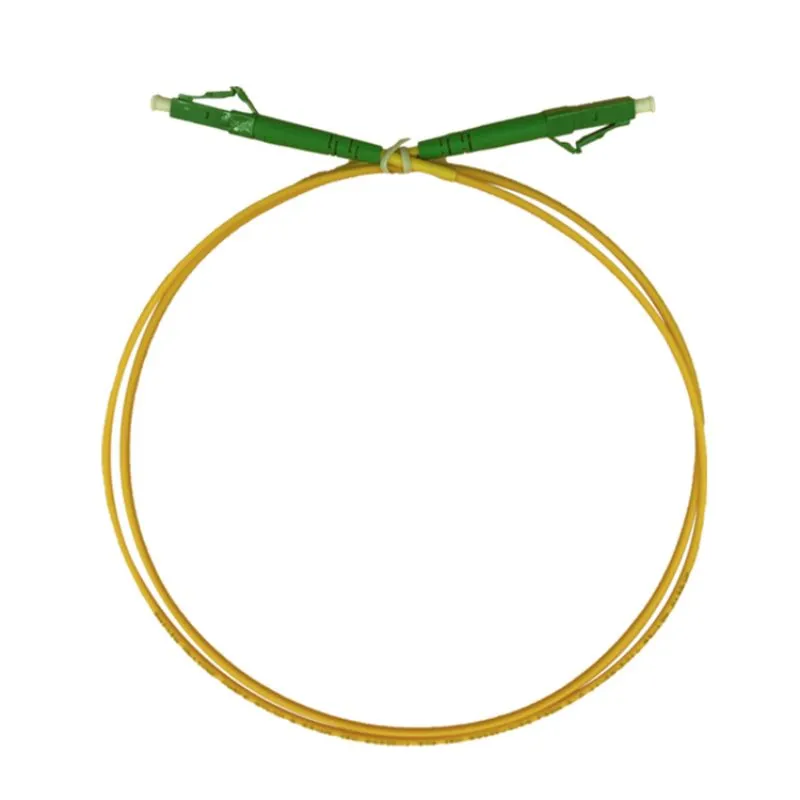

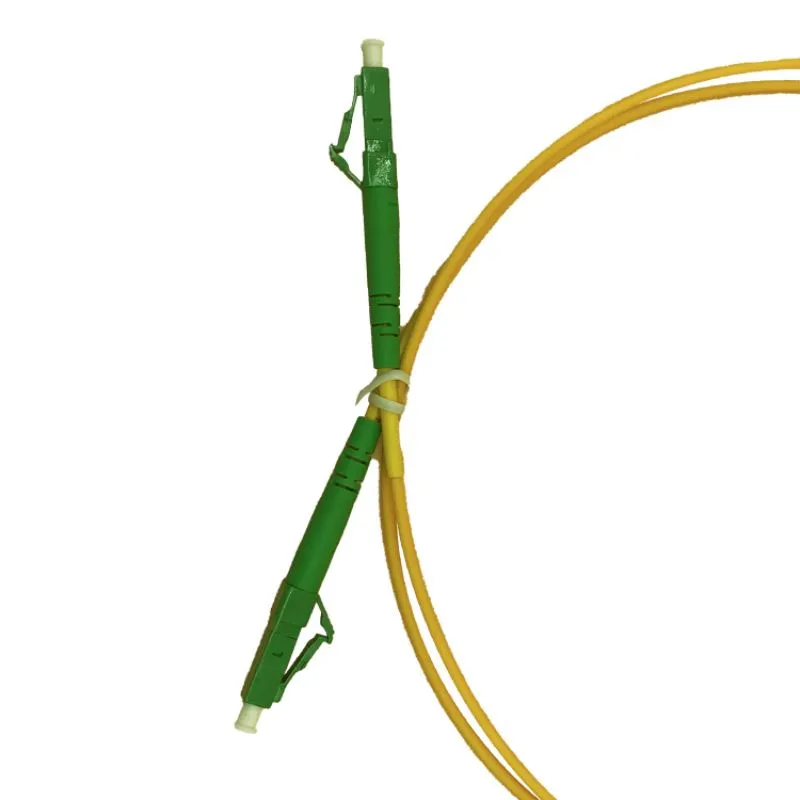

Fiber Optic Patch Cord LC APC-LC APC SM Simplex G657A1 LSZH 2.0mm 2M
Low excess loss
Excellent directivity
Low PDL
High cost-effectiveness
Specification
Fiber Optic Patch Cord LC APC-LC APC SM Simplex G657A1 LSZH 2.0mm 2M
| Connector | LC,SC,FC,ST,MPO/MTP.. | Jacket OD | 0.9mm,2.0mm,3.00mm or Customered |
| Fiber Mode | SM,MM | Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua | OM5 Lemon Green |
| Polish | UPC /APC | Wavelength | 1310/1550nm |
| Fiber Type | Simplex/Duplex | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB,≥60dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G652D/G657A1 |
Ordering information
| Code | Optical patch cord | ||||
| Side A | Connector Typpe | SC | LC | ST | FC |
| Ferrule Type | UPC | APC | |||
| Side B | Connector Typpe | SC | LC | ST | FC |
| Ferrule Type | UPC | APC | |||
| Fiber Model | SM | G652D | G657A1 | G657A2 | ... |
| MM | OM1 | OM2 | 0M3 | OM4 | |
| Cable Diameter | Φ0.9mm | Φ2.0mm | Φ3.0mm | ||
| Core number | SX | DX | |||
| Jacket | Material | PVC | LSZH | ... | |
| Color | Yellow | Bule | Green | Customized | |
| Cable Length(m) | 1m | 2m | 3m | 5m | |
