Fiber optic splice closure FOSC-400 is used to connect the distribution cable and the incoming cable.Iis widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

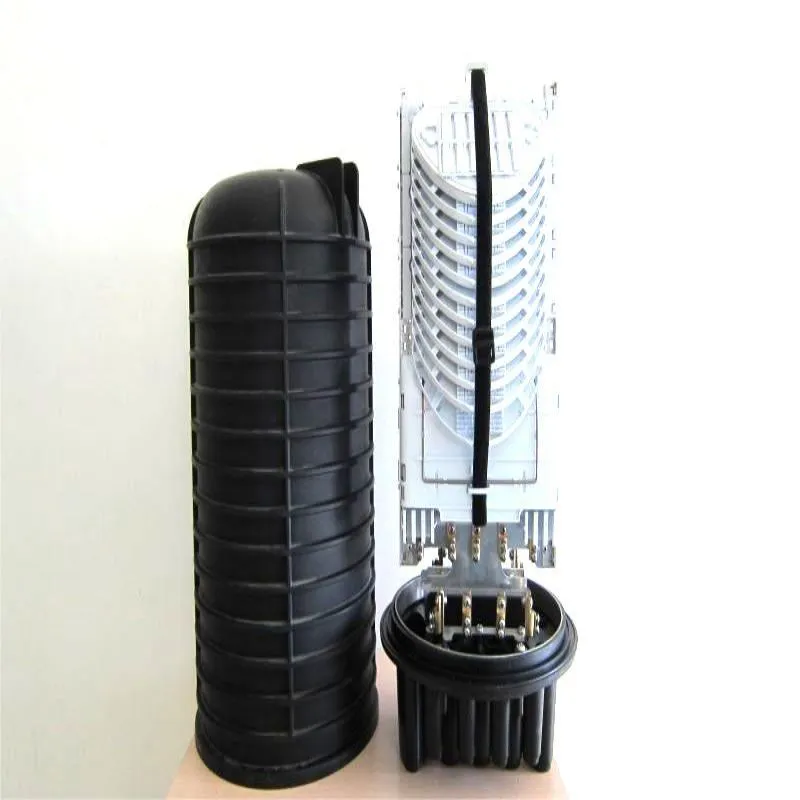

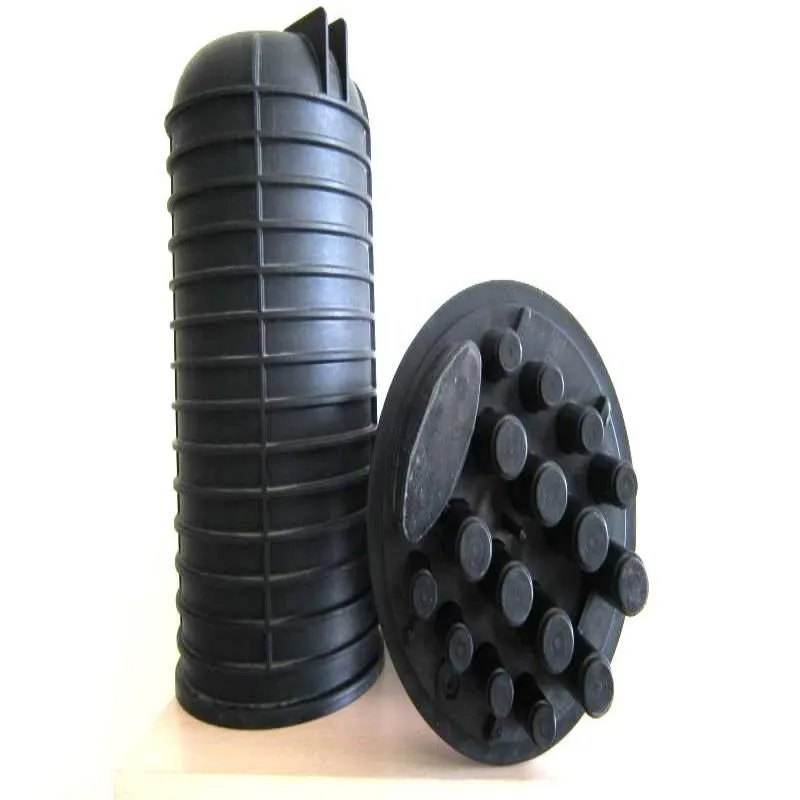

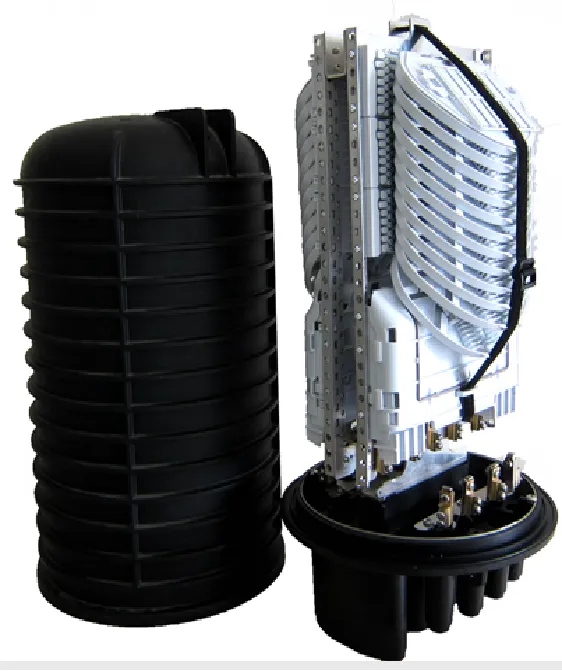

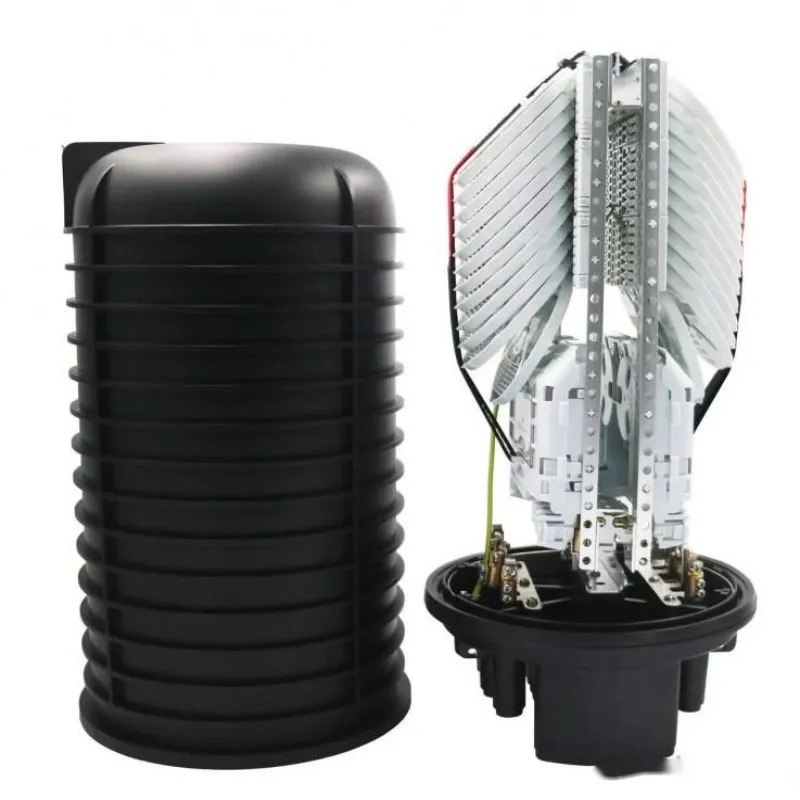

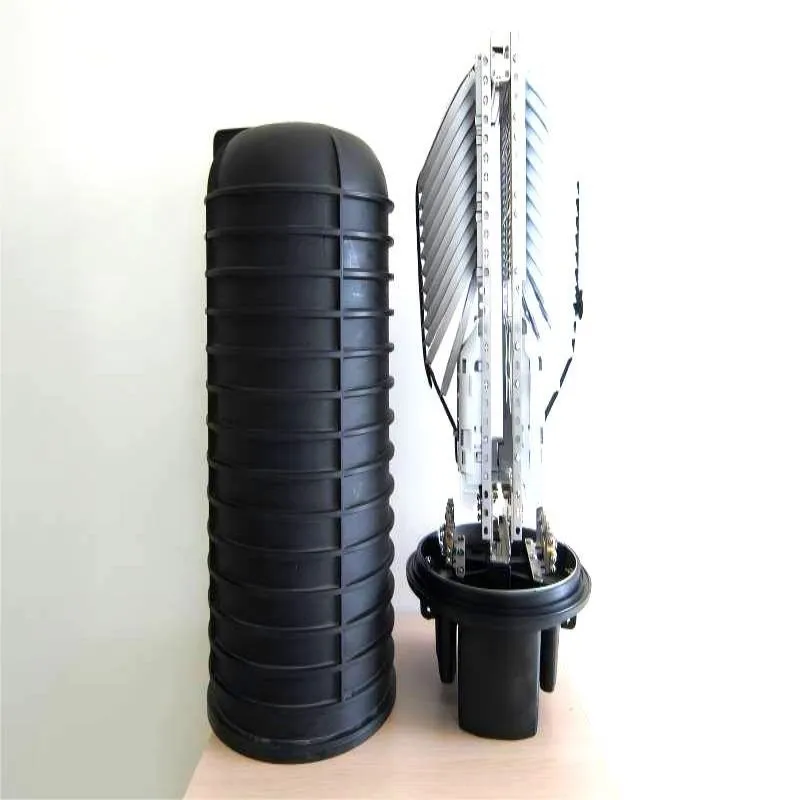

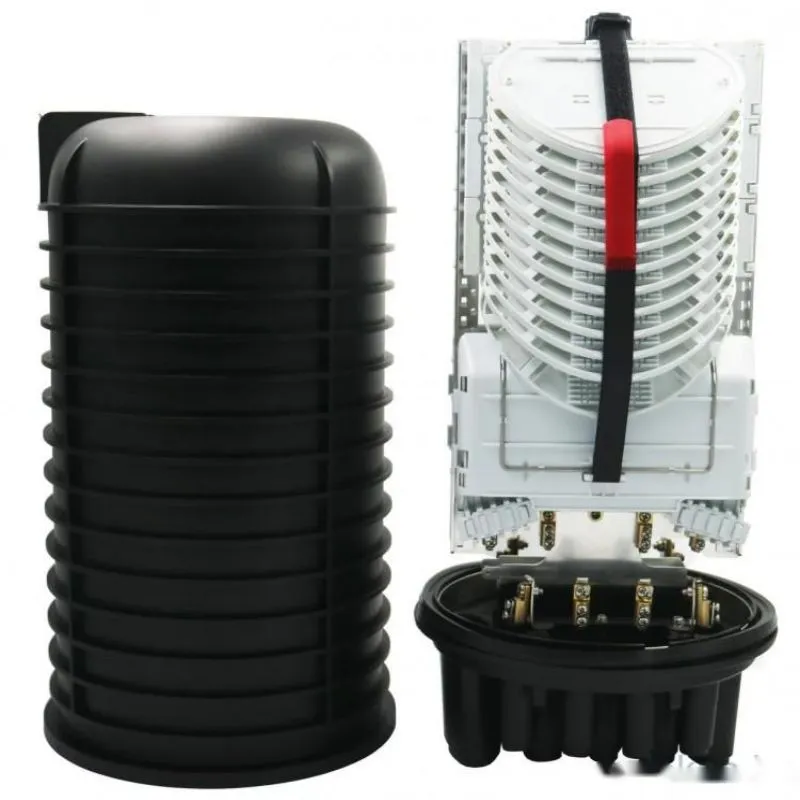

Fiber optic splice closure FOSC-400 with dome-to-base design; sealed with clamp and O-ring system. With two types of optional trays can hinge for access of any splice, without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, pole/ wall mounting or directly buried.
Share:
Technical Parameter Fiber optic splice closure FOSC-400：
1.Working Temperature: -40 degrees centigrade~+65 degrees centigrade.
2. Atmospheric Pressure: 62~106Kpa.
3. Axial Tension: >1000N/1min.
4. Flatten Resistance: 2000N/100 mm (1min).
5. Insulation resistance: >2*104MΩ.
6. Voltage Strength: 15KV(DC)/1min, no arc over or breakdown.
7. Temperature recycle: under -40℃~+75℃，with 60(+5)Kpa inner pressure, in 10cycles; Inner pressure shall decrease less than 5 Kpa when closure turn to normal temperature.
8. Durability：25 years.
Fiber optic splice closure FOSC-400 in plastic is one of several in the FOSC series. The splice closure consists of few parts and is very easy to install.
Indoor/outdoor use
Casing class IP68
Capacity of 288 splices
12 splices in each tray
24 trays (1 tray included)

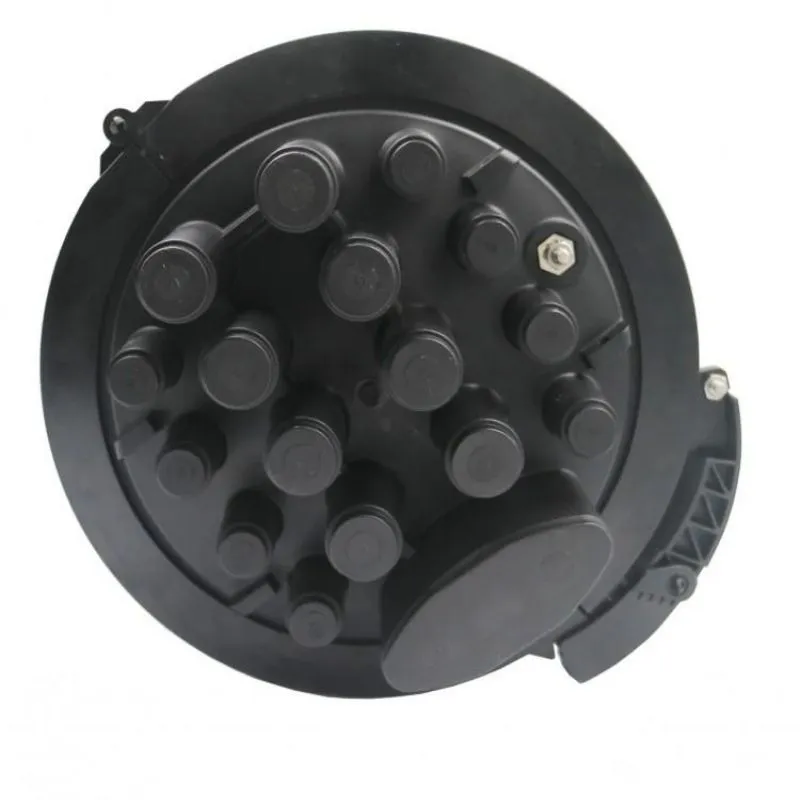

1 oval port for 2 pcs 10~30mm cable
8 middle round ports each for 1 pc 6~21mm cable
8 small round ports each for 1 pc 6-16mm cable.
Possibility for storing uncut fibre in storage basket (midspan access)
Dimensions: 504*298 mm
Specifications
Specifications Fiber optic splice closure FOSC-400：
| Item | Fiber optic splice closure FOSC-400 A16 192/288F (1 oval port,16 round ports) |
| Material | Dome,clamp,base：modified PP +GF Tray: ABS Metal parts：Stainless steel |
| Dimensions (H*D),mm | 504*298 mm |
| Ports | 1 oval port, 8 middle size round ports, 8 small size round ports |
| Diameter of Cable,mm | 1 oval port for 2 pcs 10~30mm cable 8 middle round ports each for 1 pc 6~21mm cable 8 small round ports each for 1 pc 6-16mm cable. |
| Max. tray number | 24 trays |
| Tray capacity | RQP-15-12c: 12F/tray RQP-26-4c: 4F/tray |
| Max. closure splice capacity | 288F ( if with 12F tray, total 24 pcs) 192F ( if with 4F tray, total 48 pcs) |
| Base sealing method | Heat-shrink |
| IP waterproof | IP-68 |

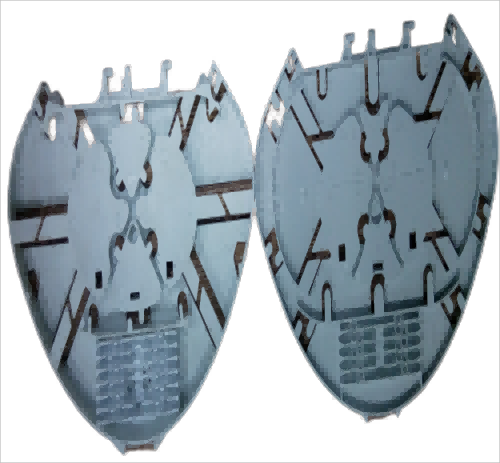

| Optional Tray |  |
| Working Temperature | -40℃~+75℃ |
| Atmospheric Pressure | 62~106Kpa |
| Applications | Aerial, Pole mounting, directly buried, Wall mounting |
