Fiber splice closure 48 core is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

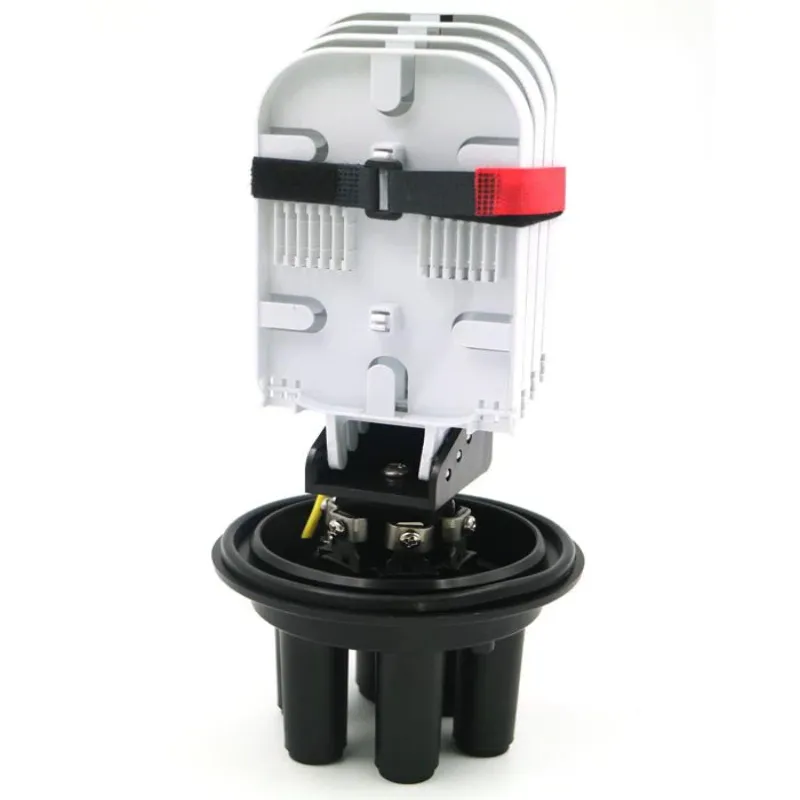

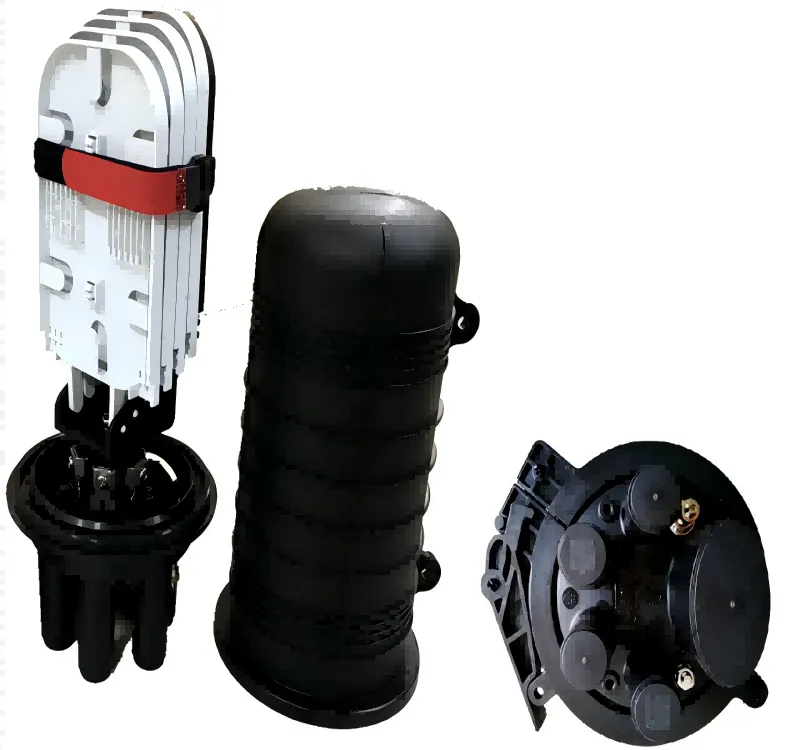

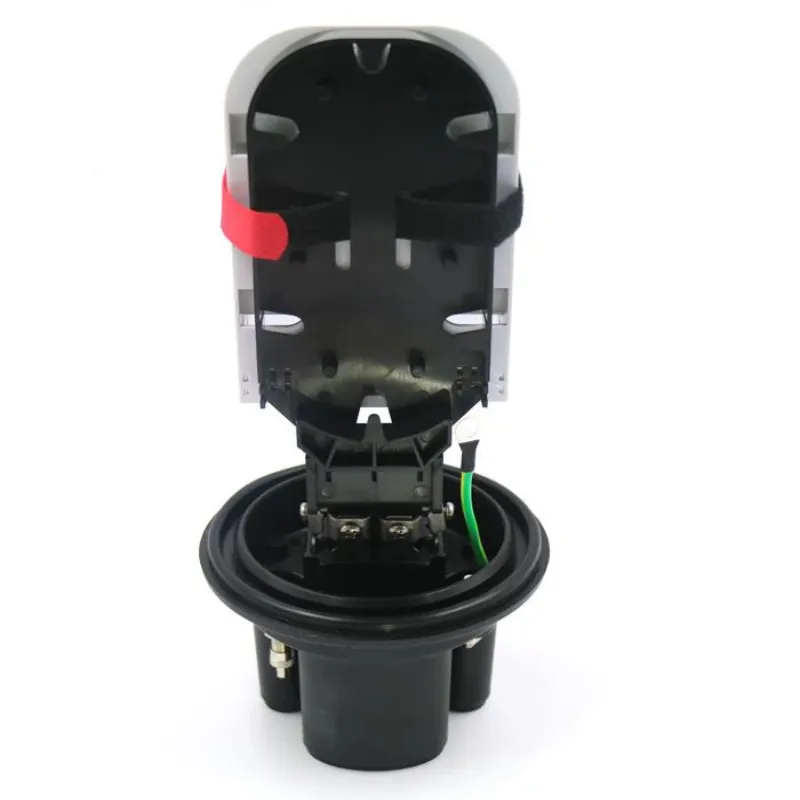

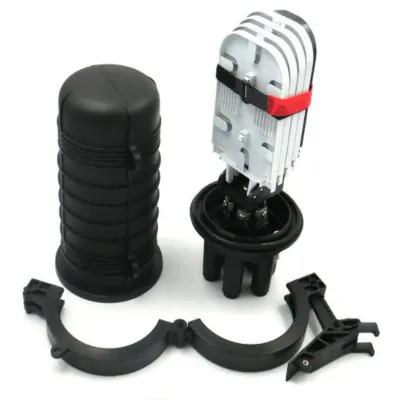

Fiber splice closure 48 core with dome-to-base design; up to 4 pieces splice trays, hinge for access of any splice without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, wall mounting or directly buried.
Share:
Fiber splice closure 48 core Technical Parameter：
1.Working Temperature: -40 degrees centigrade~+75 degrees centigrade
2. Atmospheric Pressure: 62~106Kpa.
3. Axial Tension: >1000N/1min.
4. Flatten Resistance: 2000N/100 mm (1min).
5. Insulation resistance: >2*104MΩ.
6. Voltage Strength: 15KV(DC)/1min, no arc over or breakdown.
Specifications
Specifications of Fiber splice closure 48 core FOSC：
| Item | Fiber splice closure 48 core FOSC |
| Material | Dome Base： modified PP, clamp：Nylon +GF Tray: ABS Metal parts：Stainless steel |
| Dimensions (H*D),mm | 315*188.8mm |
| Ports | 1 in 4 out |

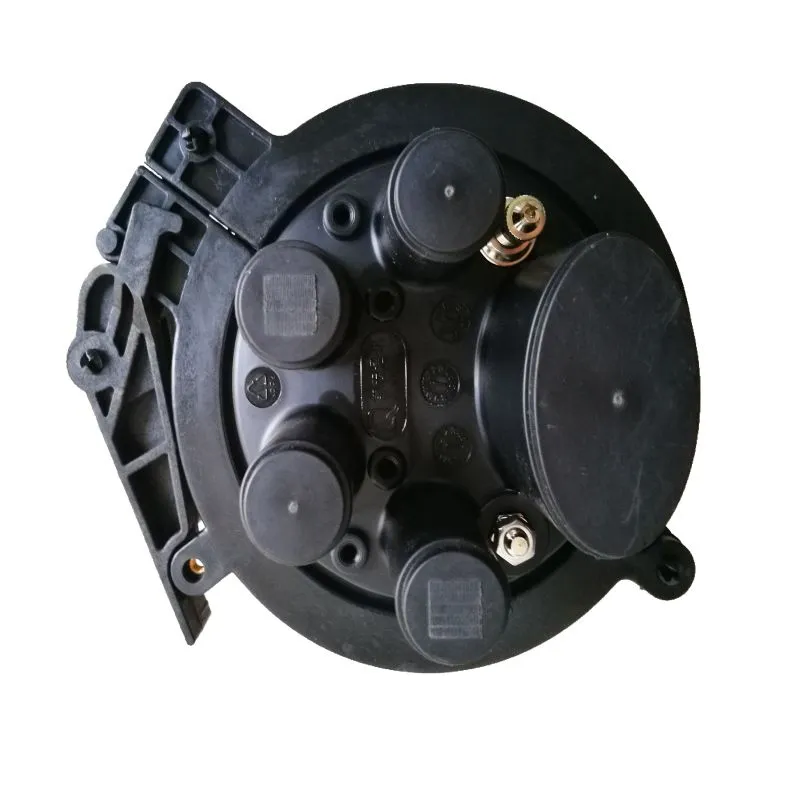

| Diameter of Cable,mm | 4 small round ports( 1pc 6-16mm) and 1 large oval port( 2 pcs, 6~23mm cables) |
| Max. tray number | 4 trays |
| Tray capacity | 24 F |
| Max. closure splice capacity | 96 cores |
| Base sealing method | Heat-shrink |
| IP waterproof | IP-68 |
| Working Temperature | -40℃~+75℃ |
| Atmospheric Pressure | 62~106Kpa |
| Applications | Aerial, directly buried, Wall/pole mounting |
