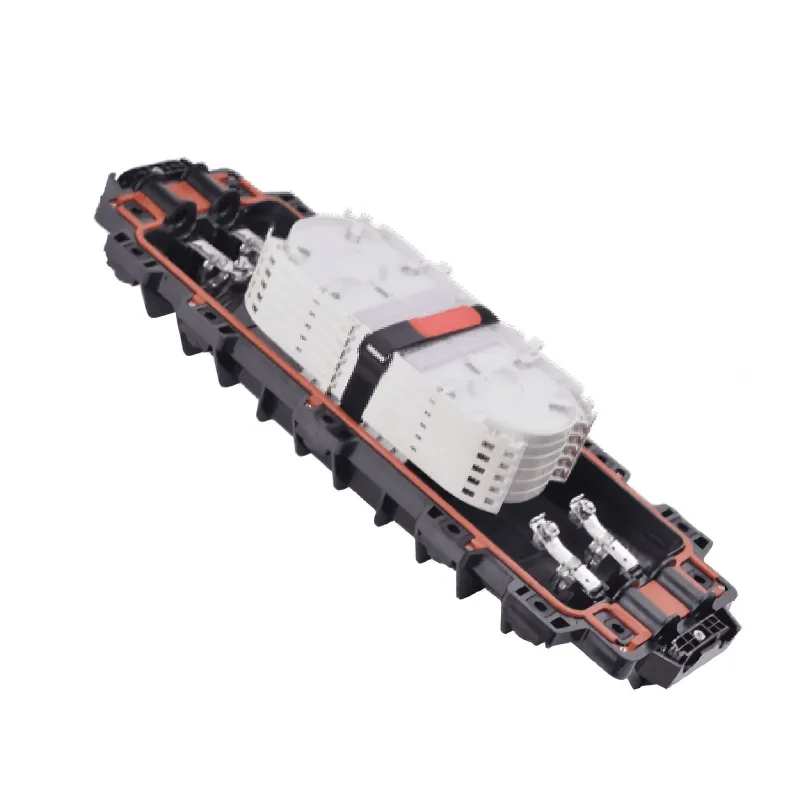

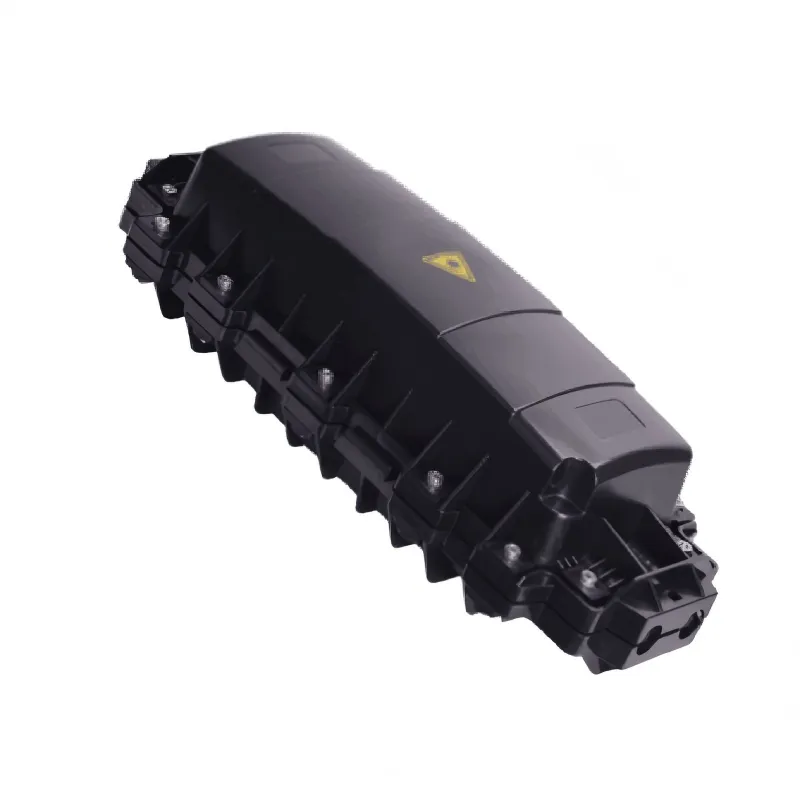

Fiber Splice Closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the fiber splice enclosure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal.
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.The scope of application is: aerial and wall-mounting. The ambient temperature ranges from -40 to 65℃.
Share:
| Model | OPT-H016 |
| Protection level | IP68 |
| Dimension | 605mm×215mm×175mm |
| Outter carton size | 670×470×385mm |

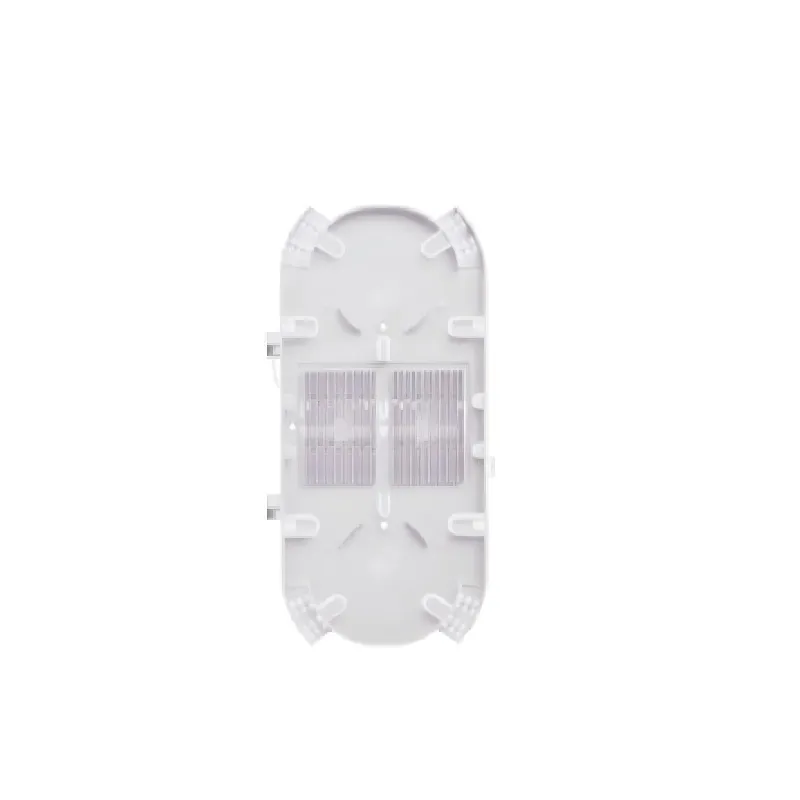

| Capacity of FOSC | Bunchy:24-288(cores)Max 24C×12 tray or Max 48C×6 tray |
| Inner carton size | 655×230×183mm |
| Cable entry ports | 4 pieces, ∅23mm×4 |
| Number of packing | 4 pcs/ctn |
| Diameter of cable | ∅ 8mm～∅ 23 mm |
| Weight | 20 kg/pcs |
