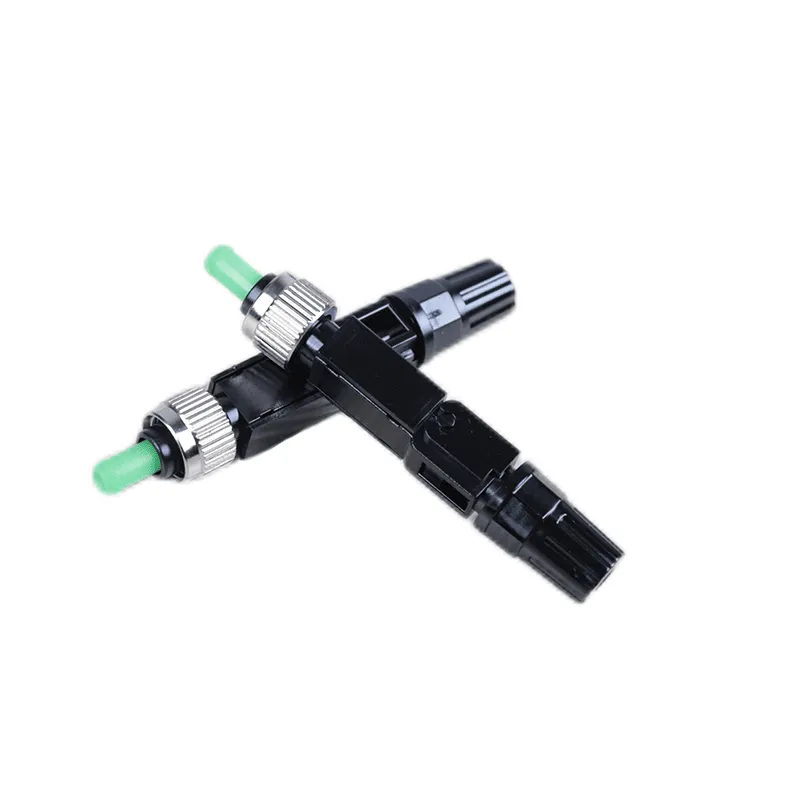

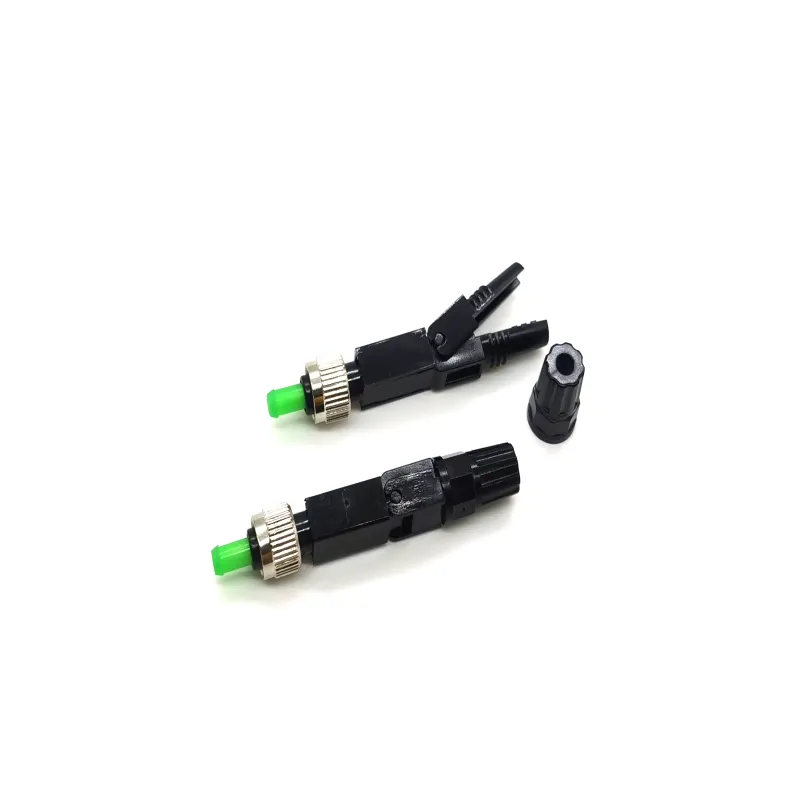

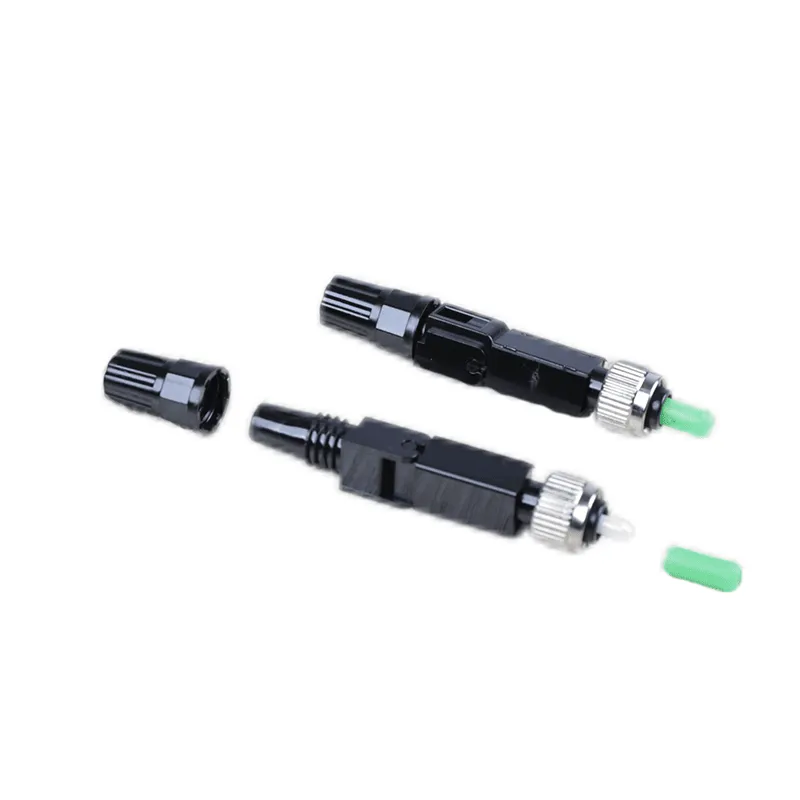

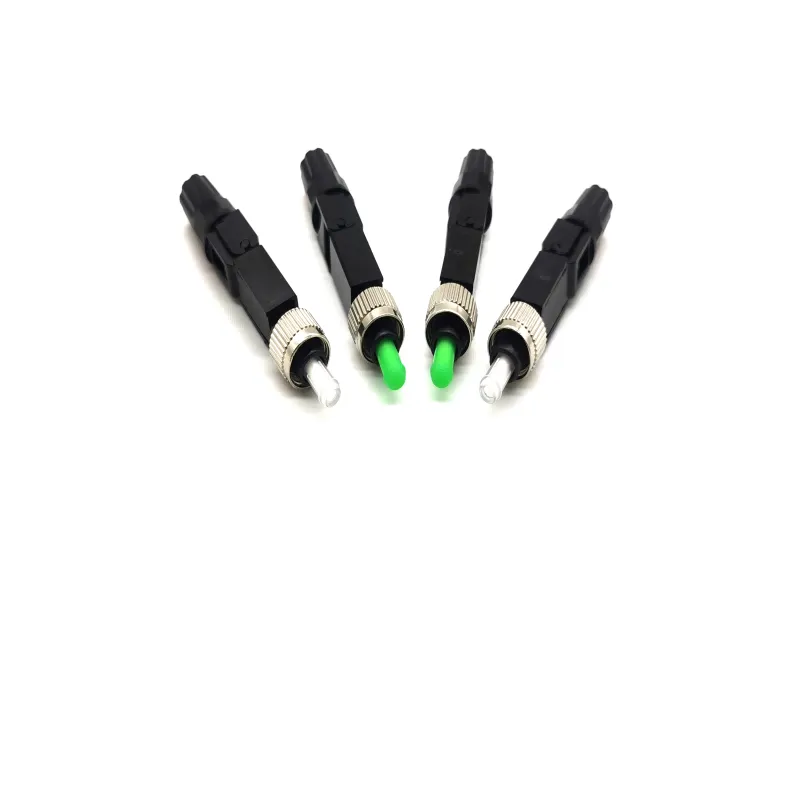

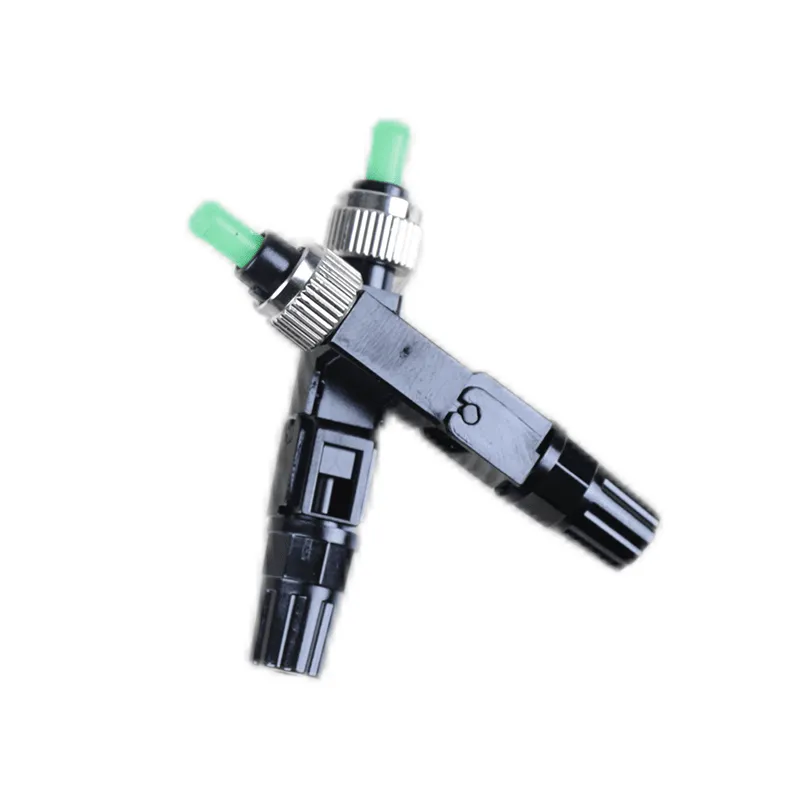

Optical fiber fast connector FC /APC
FTTH fast connector is widely used in places where rapid connection is required on the construction site. And fiber quick connector FC APC is the most common model. FC fast connector UPC and other type of fiber connector is also available.
Share:
1.Allows stable, reliable connection of optical fibre with devices to provide excellent technical performance.
2.Applicable cables: 2.0 mm × 3.0 mm drop cables, 2.0 mm × 1.6 mm drop cables, 2.0 mm round cable, 3.0 mm round cable, 0.9 mm cable.
3.Easy operation, fast assembly, high installation success rate, long lifespan, easy maintenance.
Specification
Fiber Optic quick Connector FC /APC
| Item | Optic Fast Connector FC/APC |
| Application | Drop cable: 2.0x3.0 mm and 2.0x1.6mm ; Indoor cable:2.0 and 3.0 mm round cable, 0.9 mm cable |
| Fiber mode | Single mode |
| Operation time (s) | About 50 |
| Insertion Loss (dB) | ≤0.3dB(MA*0.5dB) |
| Insertion Loss Typical value(dB) | 0.3 |
| Return Loss(dB) | APC ≥60/,UPC ≥50 |
| Fastening strength of naked fiber(N) | ≥5 |
| Tensile strength(N) | ≥50 |
| Reusable (Times) | ≥10 times |
| Operating Temperature(℃) | -40~+85 |
| On-line tensile strength(20N)-dB | ΔIL≤0.3 |
| Mechanical durability(500 times)-dB | ΔIL≤0.3 |
| Drop-off test(drop-off height4m, | ΔIL≤0.3 |
| once per direction, totally 3 times)-dB | |
| Operating Environment | -40°C to +85°C |
| Environmental Protection | Compliant with RoHS standard |
