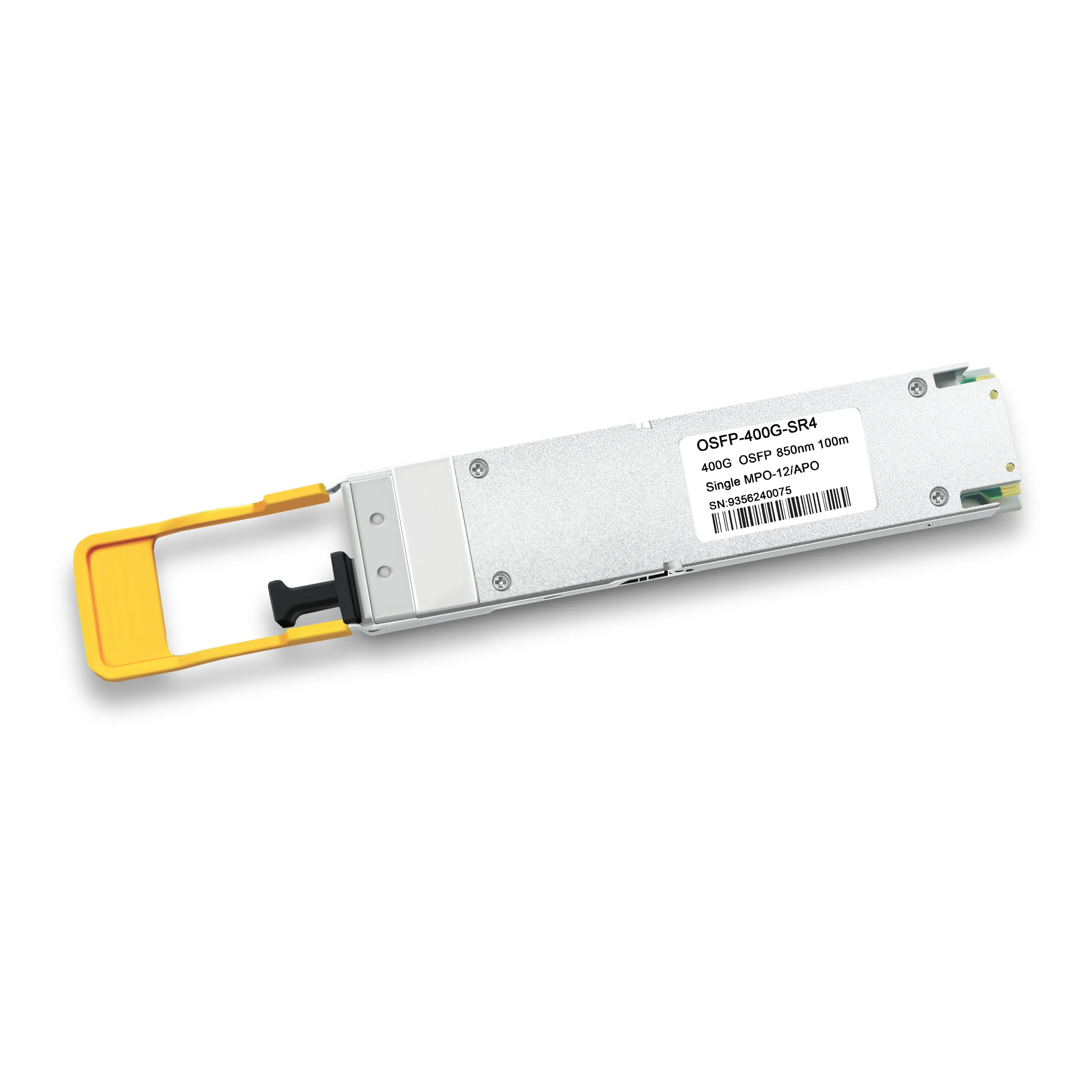

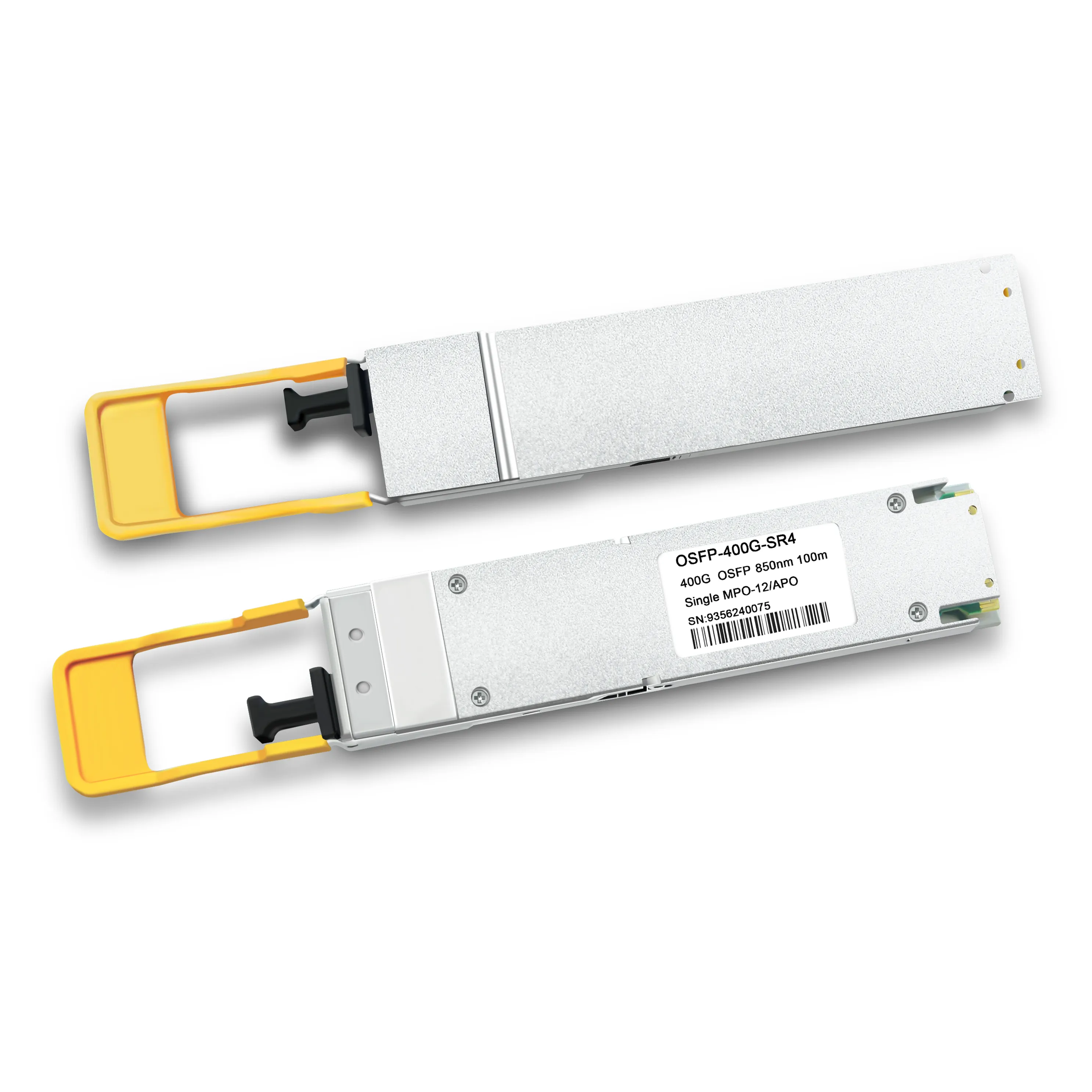

The OSFP-400G-SR4 is a high-performance optical transceiver designed for short-reach data center connectivity, delivering 400 Gigabit Ethernet (400GbE) bandwidth to support high-density, low-latency network applications.
Operating at a central wavelength of 850nm (a common choice for multi-mode fiber), it enables reliable data transmission over distances of up to 100 meters, making it ideal for intrazone or rack-to-rack connections in modern data centers.
It features a single MPO-12/APO connector interface, which streamlines fiber management, reduces connection complexity, and ensures compatibility with standard multi-mode fiber (MMF) infrastructure.
Share:
Form Factor: OSFP (Octal Small Form-Factor Pluggable) — a compact, hot-pluggable form factor optimized for high-port-density switches and servers, supporting higher power budgets for 400G+ speeds.
Data Rate: 400GbE — meets the bandwidth demands of bandwidth-intensive workloads like cloud computing, big data analytics, and AI/ML.
Transmission Distance: 100m — tailored for short-reach data center scenarios, eliminating the need for costly long-reach transceivers for nearby connections.
Wavelength: 850nm — leverages cost-effective multi-mode fiber (MMF) and is compatible with industry-standard 850nm optical components (e.g., VCSELs, photodetectors).
Connector Type: Single MPO-12/APO — APO (Angled Physical Contact) design minimizes back reflection, while MPO-12 (Multi-fiber Push-On) supports 12 fibers in one connector for efficient 400G signal transmission.
Specification
| Parameter Category | Specification Details |
|---|---|
| Optical Interface | - Form Factor: OSFP- Connector Type: Single MPO-12/APO (Angled Physical Contact)- Fiber Type: OM4/OM5 multi-mode fiber (MMF) |
| Data Rate & Protocol | - Data Rate: 400 Gigabit Ethernet (400GbE)- Protocol Compliance: IEEE 802.3bs (400GBASE-SR4) |
| Optical Performance | - Central Wavelength: 850nm (typical)- Transmission Distance: Up to 100m (over OM4 MMF); Up to 150m (over OM5 MMF)- Transmit Power: -8.5 dBm to -1.5 dBm (typical)- Receive Sensitivity: ≤ -14.0 dBm (typical) |
| Environmental | - Operating Temperature: 0°C to 70°C (commercial grade, "0-70°C")- Storage Temperature: -40°C to 85°C |
| Compliance | - RoHS Compliance: RoHS 2.0 (Restriction of Hazardous Substances)- Safety Standard: IEC 60825-1 (laser safety) |
