800G OSFP pluggable optical transceiver modules support 800G Ethernet and InfiniBand NDR data rates. This portfolio includes SR8 100m, DR8 500m, DR8+ 2km, and PLR8 10km etc.
Share:

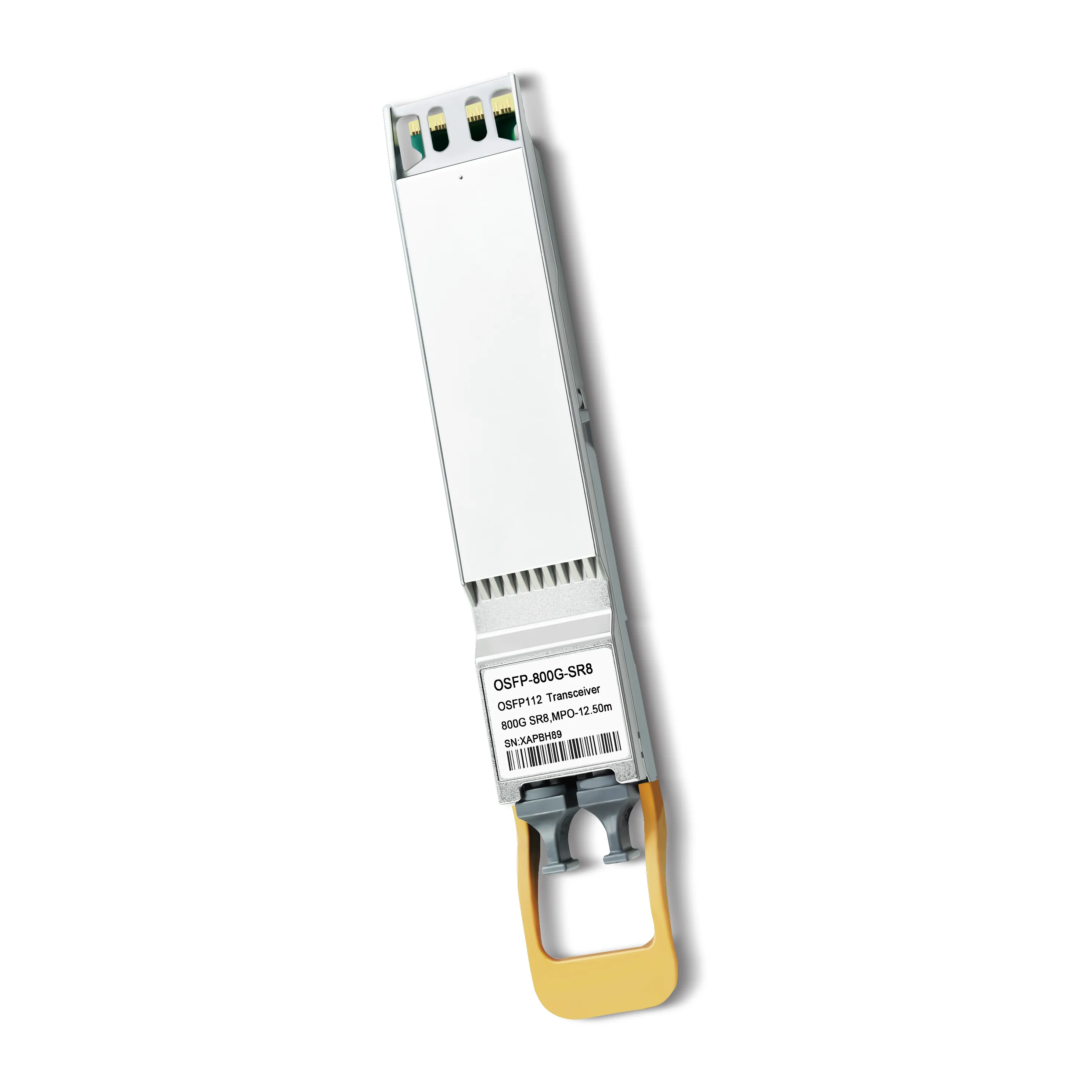

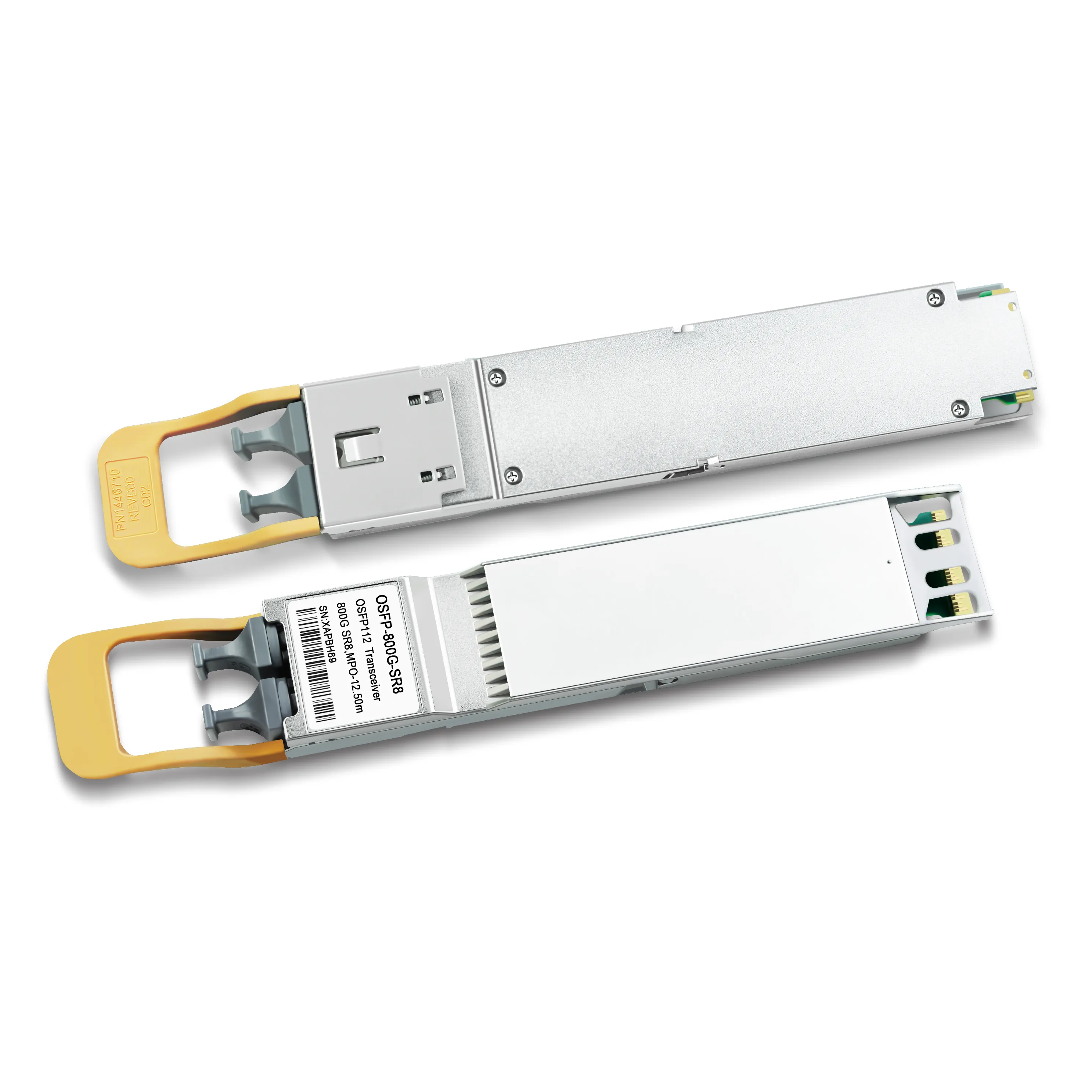

| Product Model | OSFP-800G-SR8, OSFP112 SR8 |
| Form Factor | OSFP (Flat Top, Hot-swappable) |
| Interface Type | Dual MPO-12 (some support APC), Dual MTP/MPO-12 |
| Transmission Rate | Aggregate rate 800Gbps, maximum single-channel rate 106.25Gbps (PAM4 modulation), supporting 8×100G, 2×400G, 4×200G breakout modes |
| Operating Wavelength | 850nm |
| Transmission Distance | OM3 fiber: 30-60m; OM4 fiber: 50-100m (50m as core adaptive specification) |
| Fiber Type | Multimode Fiber (MMF), compatible with OM3/OM4/OM5 |
| Transmitting Device | 850nm VCSEL array (8 channels) |
| Operating Temperature | 0℃~70℃ (Commercial temperature range) |
| Digital Diagnostics | Supports DDM/DOM functions, real-time operating parameters accessible via I2C interface |
