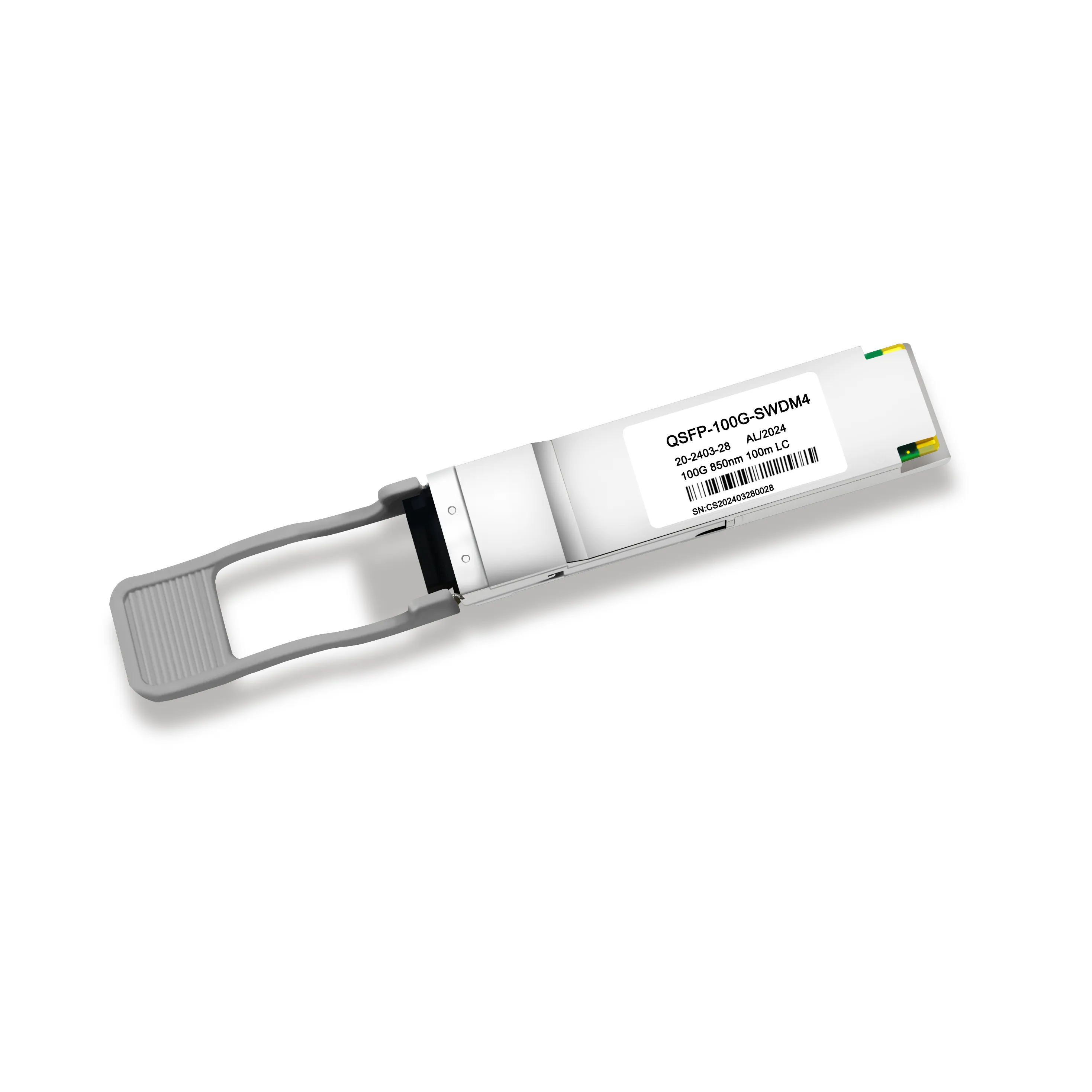

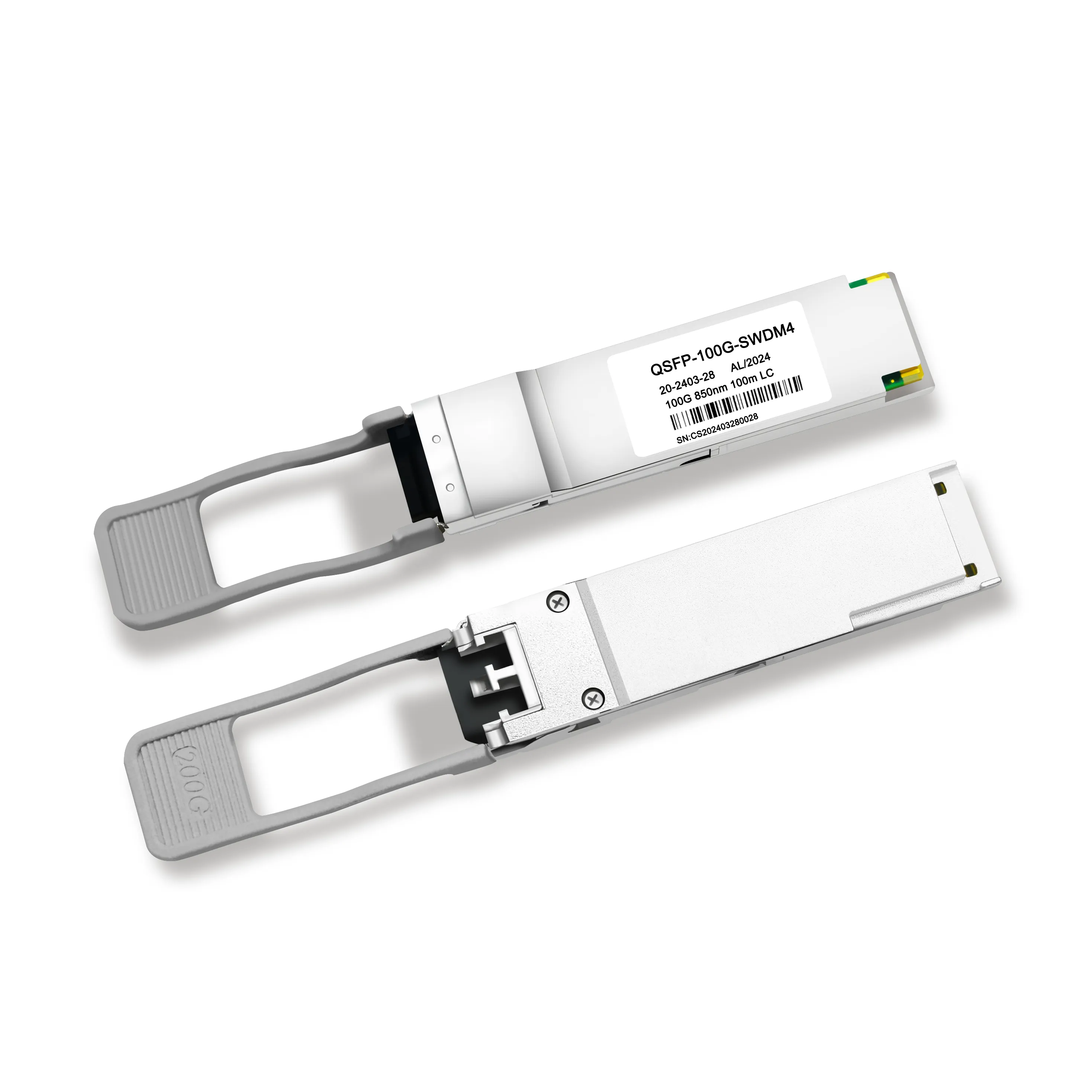

The QSFP-100G-SWDM4 is a QSFP28 transceiver designed for short-reach 100Gbps data transmission, utilizing Short-Wavelength Division Multiplexing (SWDM4) over 100m of multimode fiber at 850nm, with duplex LC connectors. It aggregates four 25Gbps lanes (each on distinct 850nm-range wavelengths) to deliver 100Gbps throughput, making it ideal for intra-data center links, such as server-to-top-of-rack (ToR) switches or switch-to-switch connections. Featuring hot-swappable functionality, integrated DDM/DOM for real-time monitoring, and compatibility with legacy multimode fiber infrastructure, it enables cost-effective 100G upgrades in existing data centers.
Share:
SWDM4 Technology: Uses four closely spaced wavelengths within the 850nm band to multiplex 4x25Gbps signals into a 100Gbps stream, allowing 100G transmission over existing OM3/OM4 multimode fiber (no need for new fiber deployment).
Short-Reach Optimization: Supports 100Gbps over 100m (OM4) or 70m (OM3) multimode fiber, targeting high-density intra-data center scenarios where short-distance, cost-efficient connectivity is critical.
Practical Compatibility: Hot-swappable QSFP28 form factor fits standard ports, integrates DDM/DOM for tracking temperature and optical power, and aligns with SWDM4 MSA standards for broad interoperability with network equipment.
Specification
| Parameter | Details |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 100Gbps (aggregate, 4 x 25.78125Gbps lanes) |
| Wavelengths | 4 SWDM wavelengths within 850nm band (typically 840nm, 850nm, 860nm, 870nm) |
| Transmission Distance | Up to 100m over OM4 multimode fiber (MMF); 70m over OM3 MMF |
| Connector Type | Duplex LC |
| Protocol Compliance | SWDM4 MSA, IEEE 802.3cm (100GBASE-SWDM4) |
| Optical Performance | - Transmit power: -6 ~ 0dBm (per lane)- Receive sensitivity: ≤ -9dBm (per lane)- Power budget: 5dB |
| Power Consumption | Max 3.0W (3.3V supply) |
| Operating Temperature | 0°C ~ 70°C (commercial range) |
| Diagnostics | Supports DDM/DOM (Digital Diagnostic Monitoring) |
| Key Features | Hot-swappable, RoHS compliant, works with legacy OM3/OM4 fiber, low latency |
