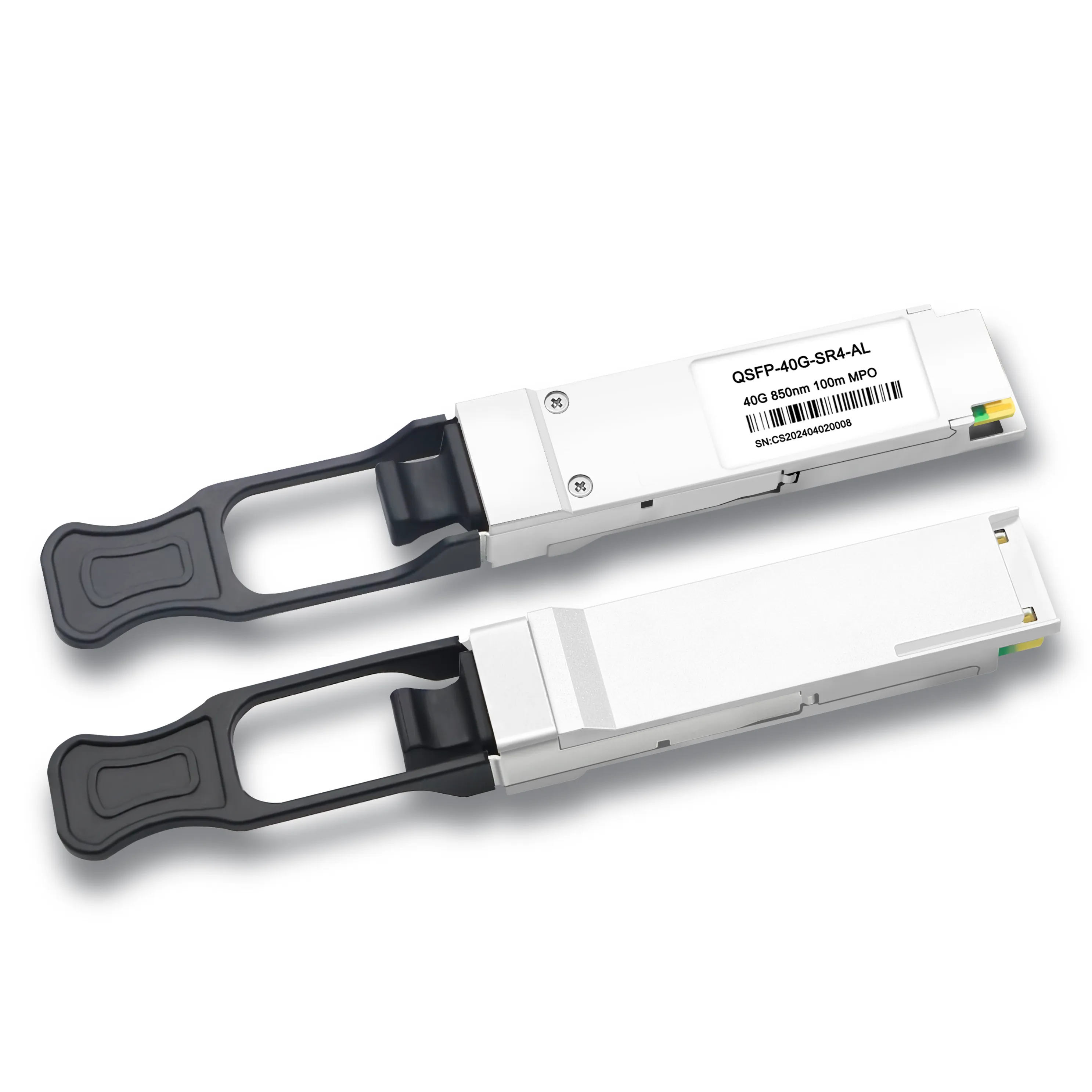

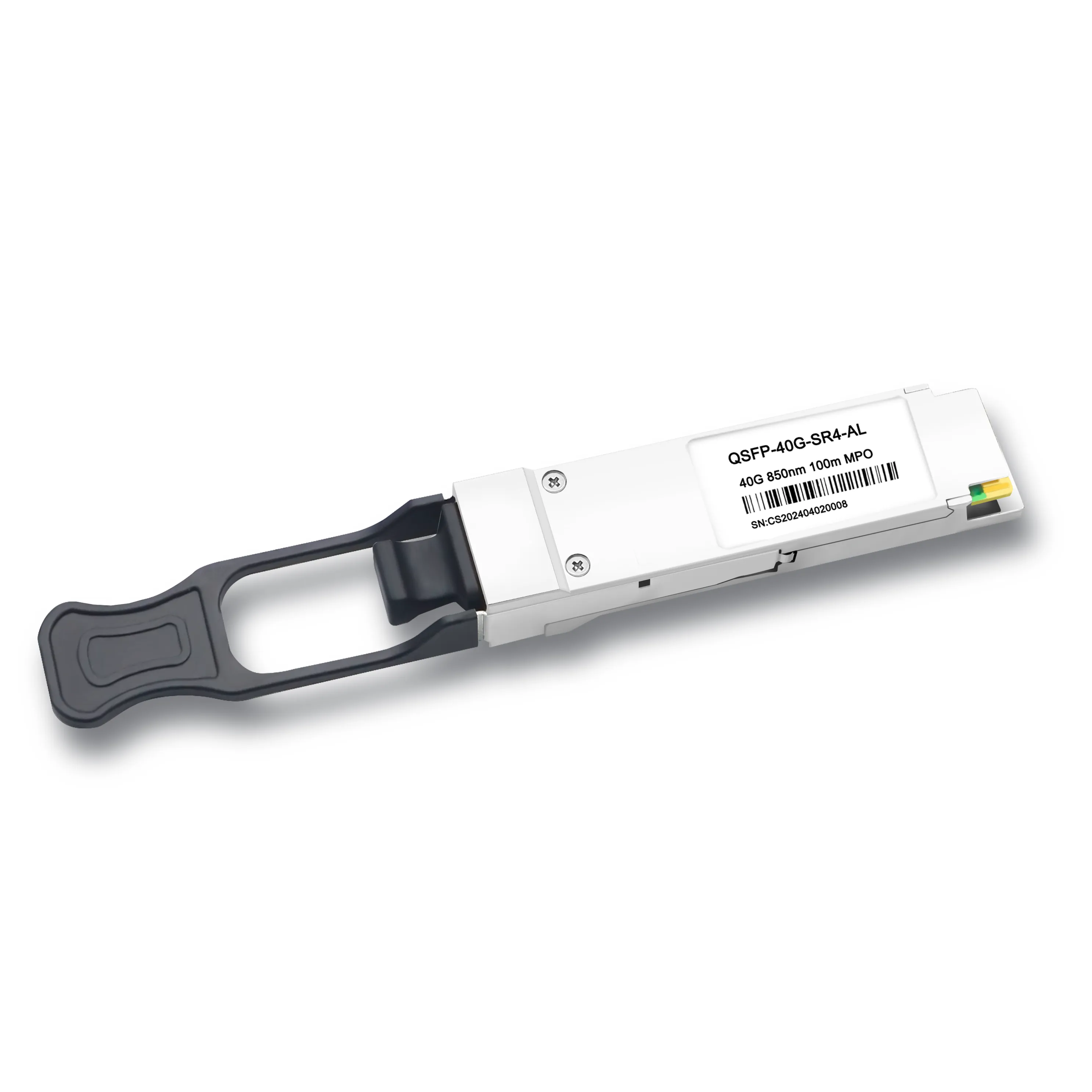

40G QSFP+ SR4 transceiver modules are designed for use in 40 Gigabit Ethernet links on up to 100m of Multi mode fiber. They are compliant with the QSFP MSA and IEEE 802.3ba. The optical transceiver is RoHS compliant.
Share:
Hot-pluggable QSFP+ form factor
Supports 41.25Gb/s aggregate bit rate
Power dissipation <1.5W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on Multi Mode Fiber (MMF)
Aligned with IEEE 802.3ba
4x10G NRZ VCSEL-based 850nm transmitter
4x10G NRZ retimed 40GAUI-4 electrical interface
MPO-12 receptacles
I2C management interface
RoHS compliant
DATACOM
Specification
| Data Rate | 41.25Gb/s |
| Case Temperature | 0~70℃ |
| Transmitter | Vcsel |
| Wavelength | 850nm |
| Power consumption（Max） | 1.5W |
| Distance | 100m |
| Voltage Supply | 3.3V |
| Receiver | PIN |
| Connector | MPO-12 |
