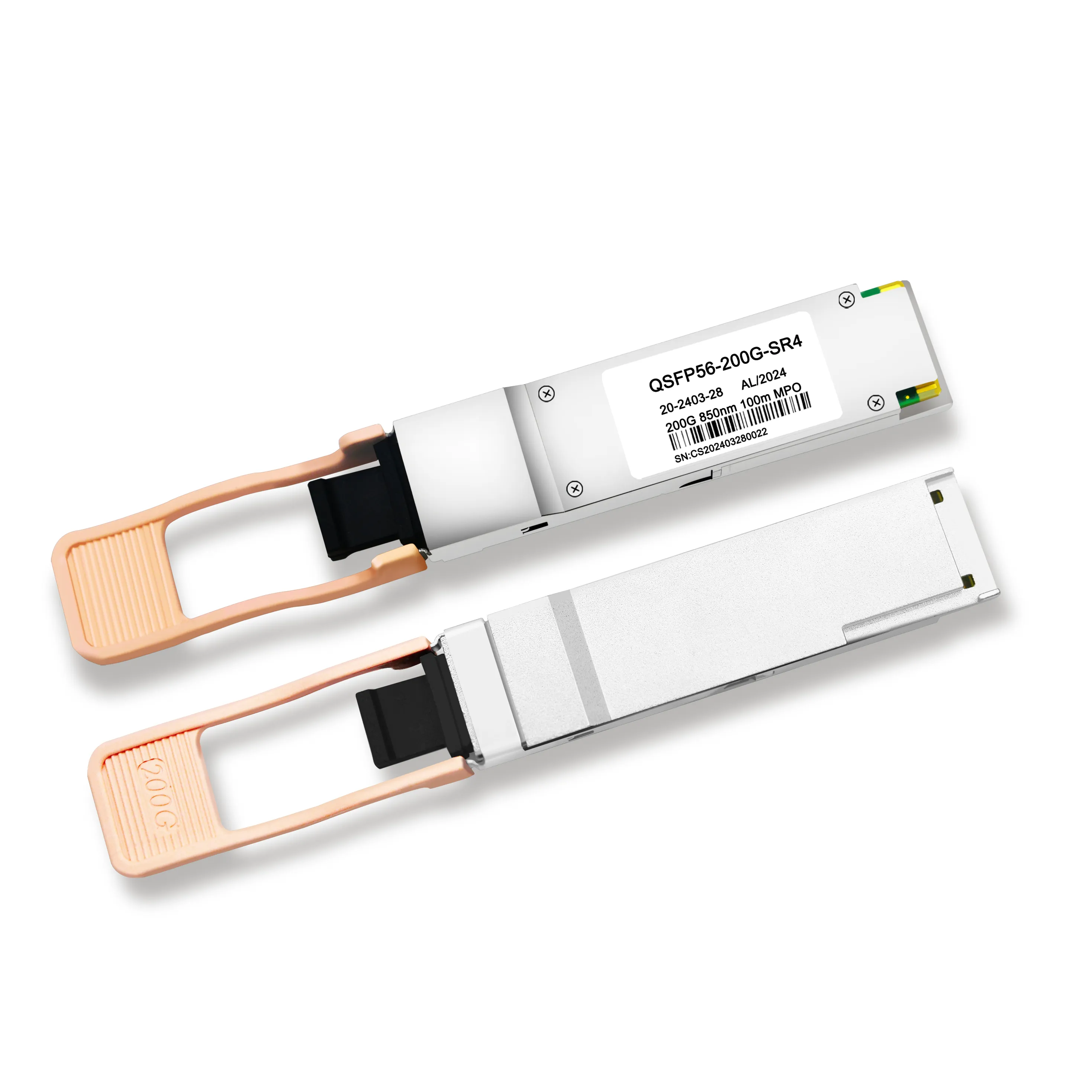

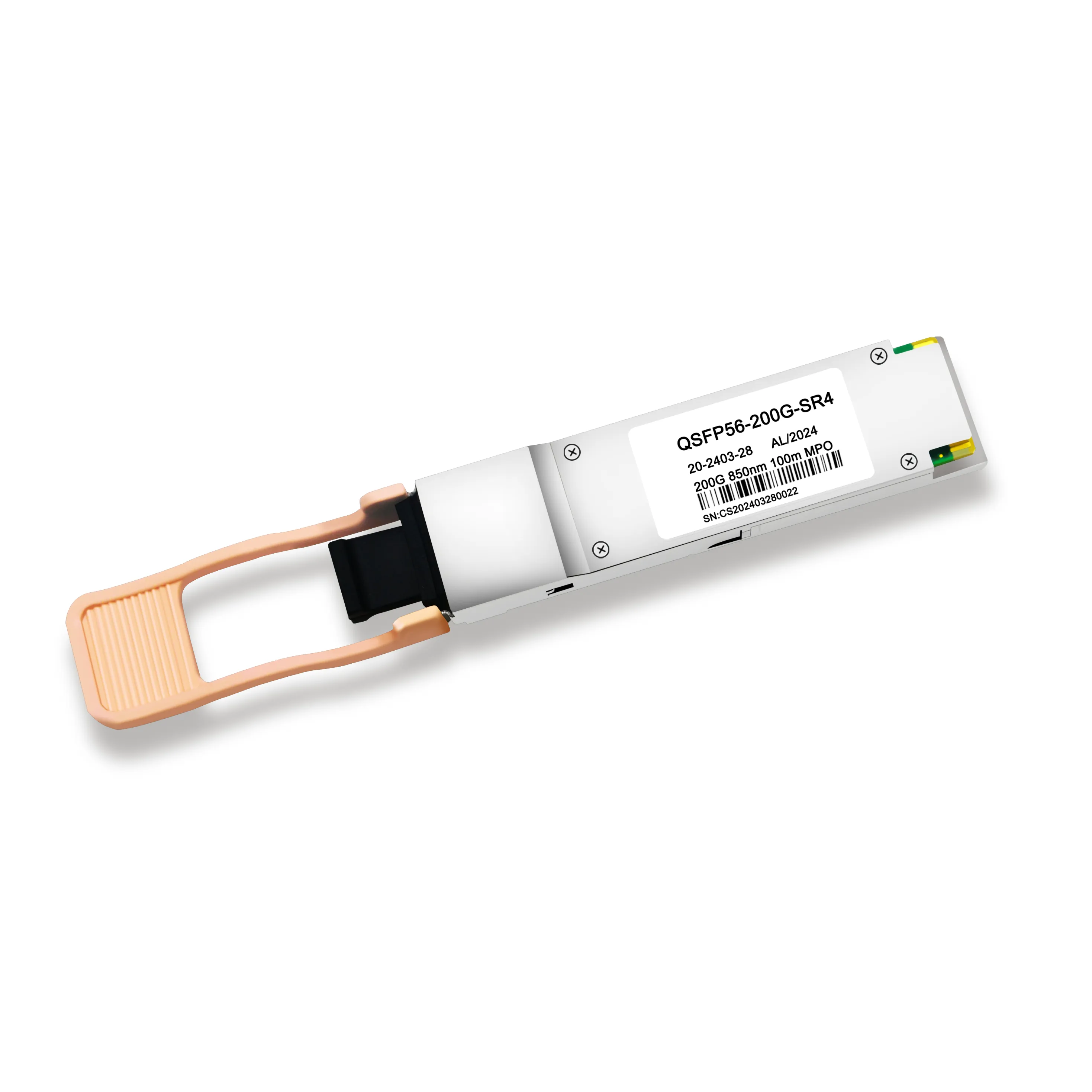

200G QSFP56 SR4 transceiver modules are designed for use in 200 Gigabit Ethernet links on up to 100m of Multimode fiber. They are compliant with the QSFP MSA and IEEE 802.3cd.The optical transceiver is RoHS compliant.The product supports immersion liquid cooling applications
Share:
Hot-pluggable QSFP56 form factor
Supports 212.5Gb/s aggregate bit rate
Power dissipation <5W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on Multi Mode Fiber (MMF)
Aligned with IEEE 802.3cd
4x50G PAM4 VCSEL-based 850nm transmitter
4x50G PAM4 retimed 200GAUI-4 electrical interface
MPO-12 receptacles
I2C management interface
RoHS compliant
DATACOM
Specification
| Data Rate | 212.5Gb/s |
| Case Temperature | 0~70℃ |
| Transmitter | Vcsel |
| Wavelength | 850nm |
| Power consumption（Max） | 5W |
| Distance | 100m |
| Voltage Supply | 3.3V |
| Receiver | PIN |
| Connector | MPO-12 |
