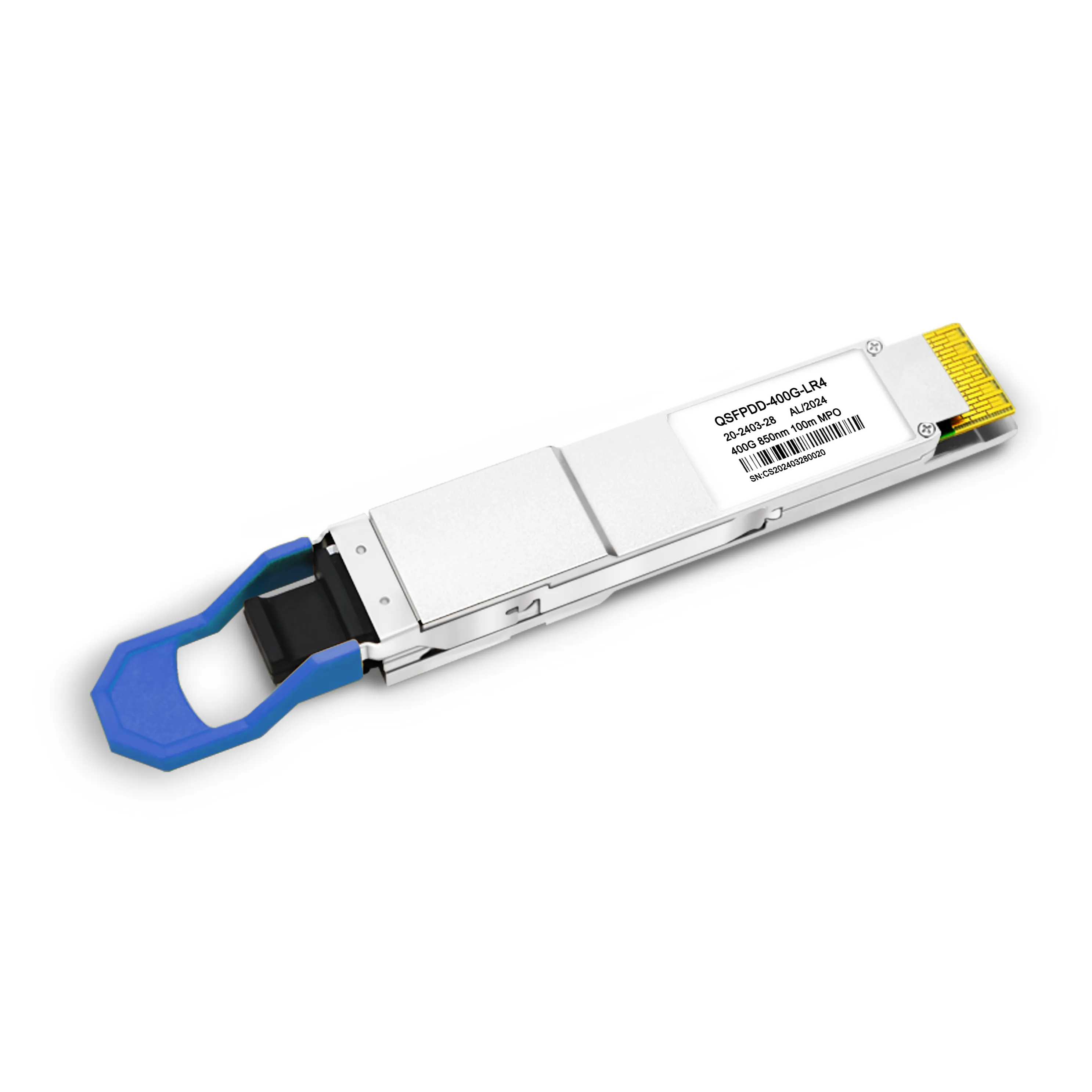

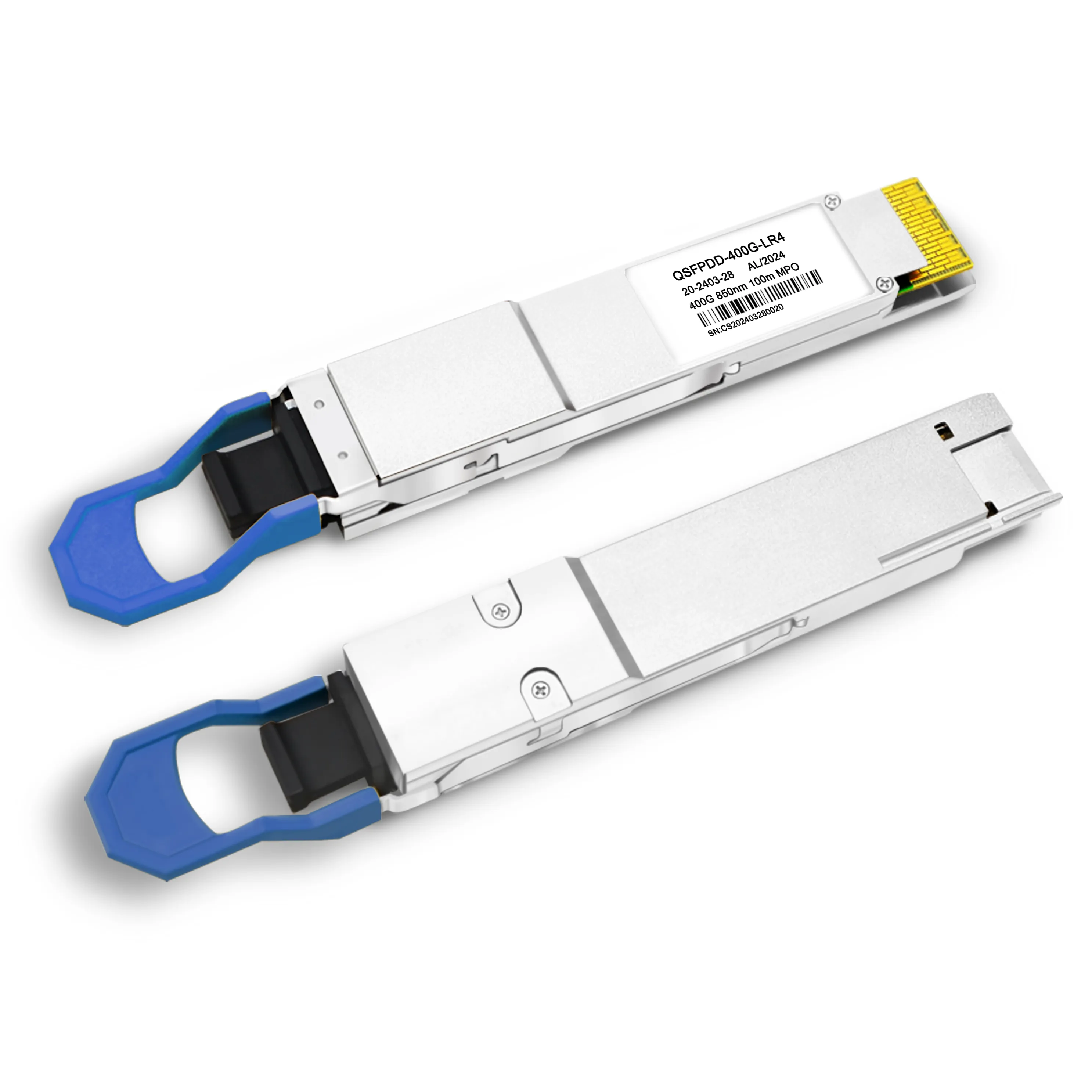

LR4 QSFP-DD transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP-DD MSA, IEEE 802.3bs and 100G Lambda MSA Group 400G-LR4-10.The optical transceiver is RoHS compliant.
Share:
Hot-pluggable QSFP-DD Type 2 form factor
Supports 425Gb/s aggregate bit rate
Power dissipation <12W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Aligned with IEEE 802.3bs
4x100G PAM4 DFB-based CWDM transmitter
8x50G PAM4 retimed 400GAUI-8 electrical interface
Duplex LC receptacles
I2C management interface
RoHS compliant
400G LR4 applications
Specification
| Data Rate | 425 Gb/s |
| Case Temperature | 0~70℃ |
| Transmitter | 4x CWDM DFB Laser |
| Wavelength | 1310nm CWDM |
| Power consumption（Max） | 12W |
| Distance | 10 km |
| Voltage Supply | 3.3V |
| Receiver | PIN |
| Connector | LC |
