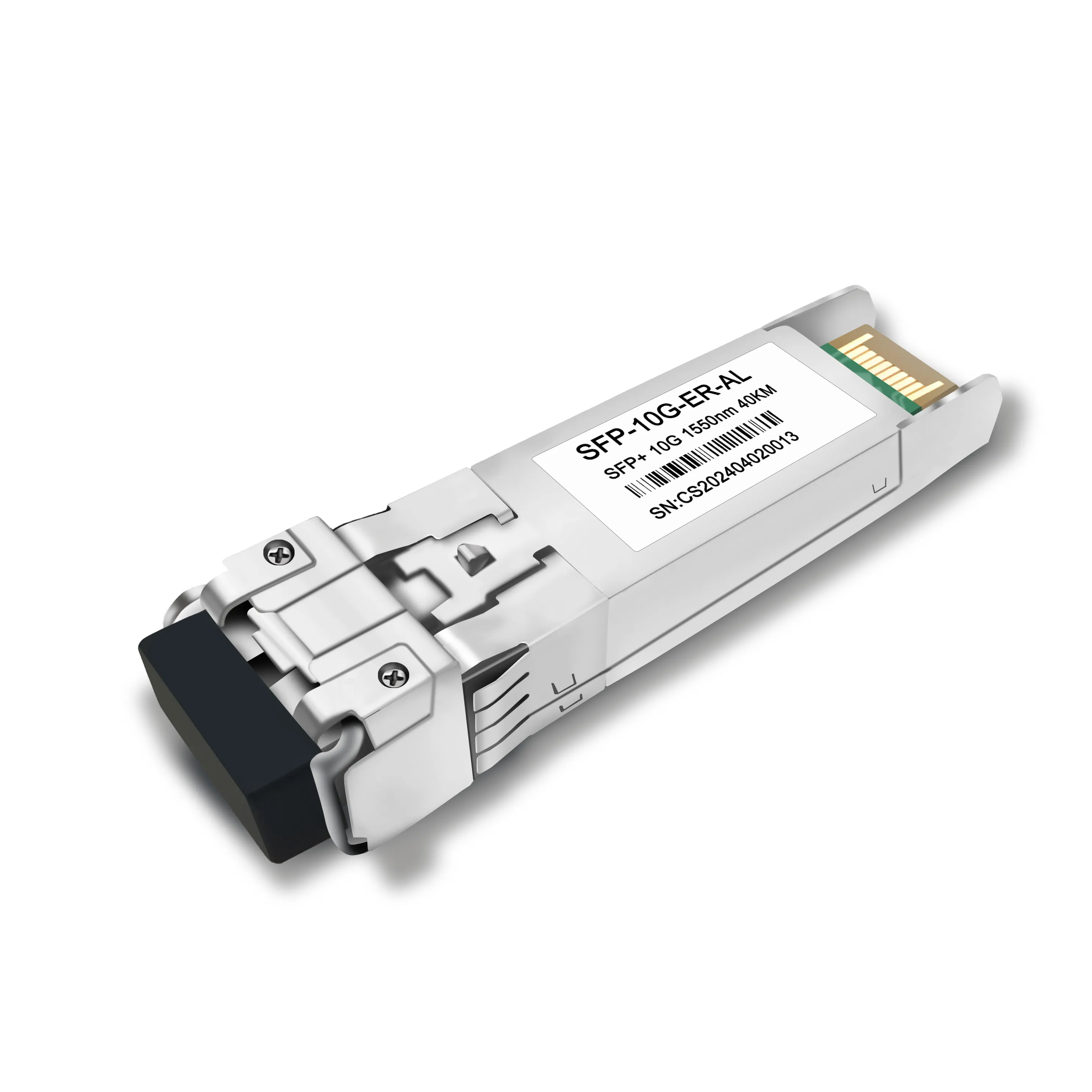

SFP+ ER transceiver modules are designed for use in 10 Gigabit Ethernet links on up to 40km of single mode fiber. They are compliant with the SFF-8431,SFF-8432,10GFC,ITU-T G.691,10GBASE-ER/EW and IEEE 802.3ae.The optical transceiver is RoHS compliant.
Share:
Hot-pluggable SFP+ form factor
Supports 1.25 to 11.3Gb/s bit rate
Power dissipation <1.5W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 40km on Single Mode Fiber (SMF)
Aligned with IEEE 802.3ae
Cooled 1550nm EML-based transmitter
Duplex LC receptacles
RoHS compliant
10GBASE-ER/EW
10G Fiber Channel
Specification
| Data Rate | 10 Gb/s |
| Case Temperature | 0~70℃ |
| Transmitter | Cooled 1550nm EML laser |
| Wavelength | Tx 1550nm/Rx 1260~1620nm |
| Power consumption（Max） | 1.5W |
| Distance | 40 km |
| Voltage Supply | 3.3V |
| Receiver | PIN |
| Connector | LC |
