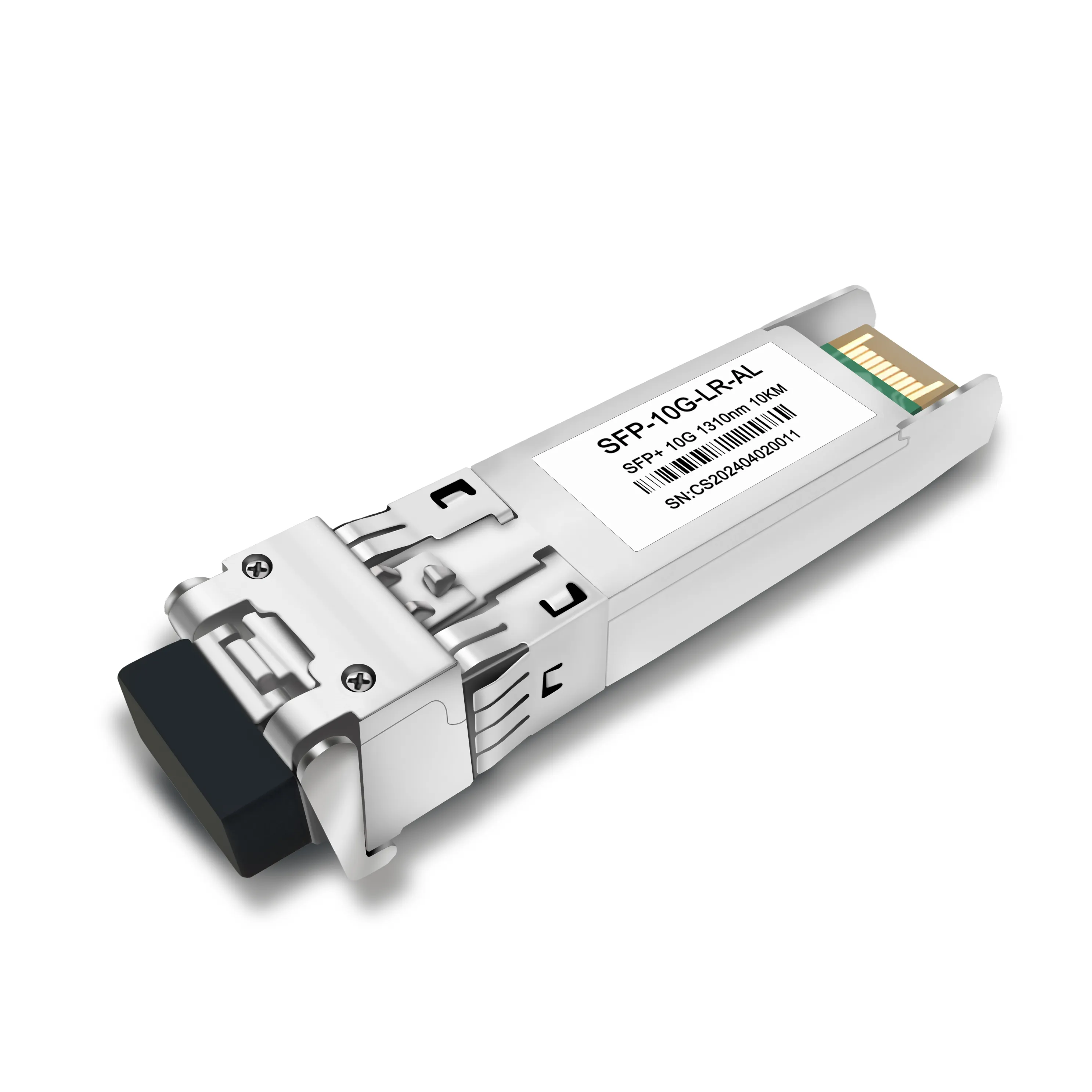

LR SFP+transceiver modules are designed for use in10 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the SFF-8431,SFF-8432, 10GFC Rev 4.0, IEEE 802.3ae 10GBASE-LR/LW, Telcordia GR-253-CORE OC-192 SR-1 and ITU-T G.691 STM-64 I-64.1.The optical transceiver is RoHS compliant.
Share:
Supports 10Gb/s aggregate bit rate
Power dissipation <1.5W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Aligned with SONET OC-192 SR-1&SDH STM I-64.1
Uncooled DFB-based transmitter
High sensitivity PIN photodiode and TIA
Duplex LC receptacles
I2C management interface
RoHS compliant
SONET OC-192 SR-1&SDH STM I-64.1
10GBASE-LR/LW
10G Fiber Channel
Specification
| Data Rate | 10 Gb/s |
| Case Temperature | 0~70℃ |
| Transmitter | Uncooled DFB Laser |
| Wavelength | 1310nm BandTx 1310nm/Rx 1260~1620nm |
| Power consumption（Max） | 1.5W |
| Distance | 10 km |
| Voltage Supply | 3.3V |
| Receiver | PIN |
| Connector | LC |
