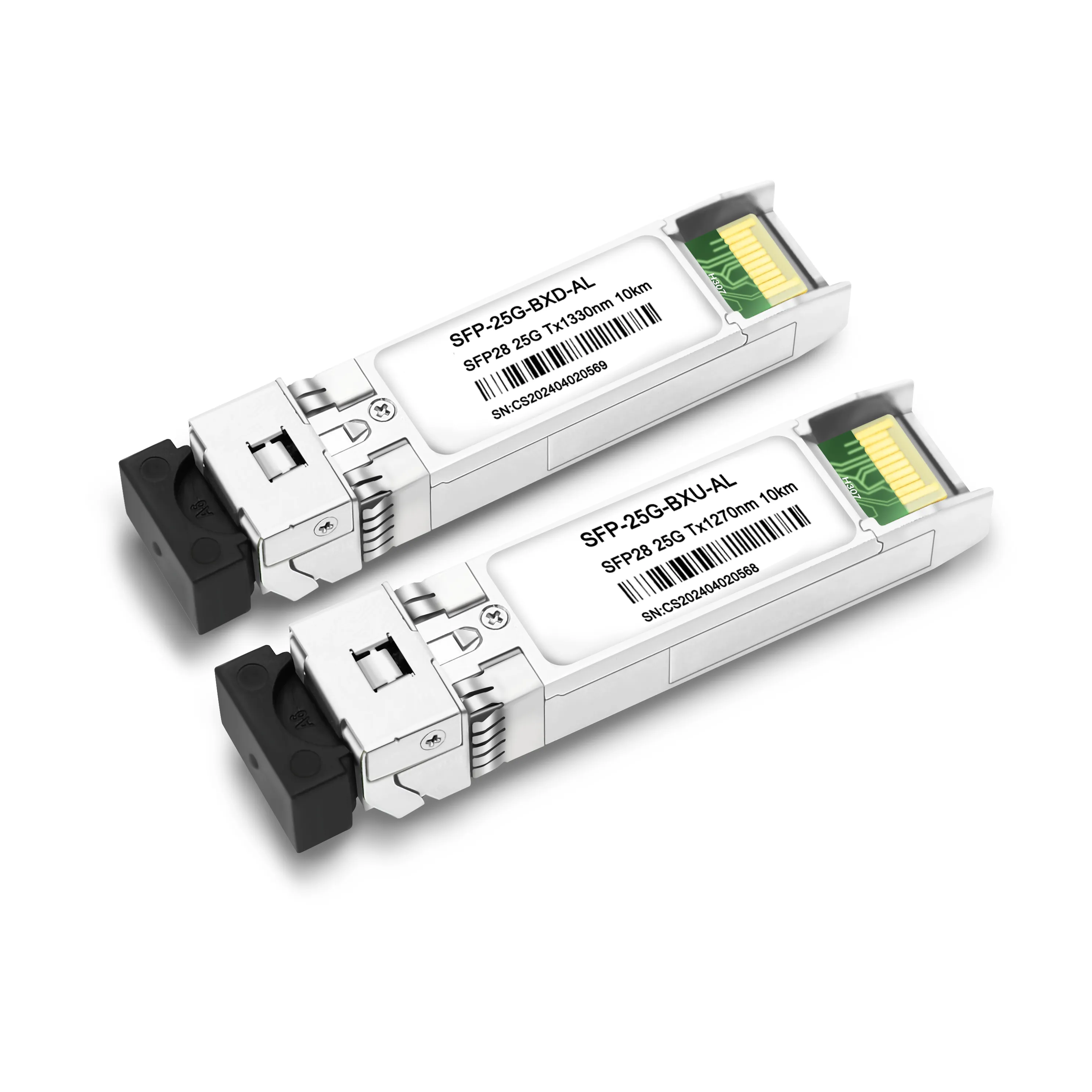

25Gigabit 1270nm/1330nm SFP28 transceiver modules are designed for use in wireless front-haul links on up to 10km of single mode fiber. They are compliant with the SFF-8472,SFF-8402,SFF-8432 IEEE802.3cc and applicable portions of SFF-8431.The optical transceiver is RoHS compliant.
Share:
Hot-pluggable SFP28 form factor
Supports 9.83/10.13/10.31/24.33/25.78Gb/s bit rate
Power dissipation <1.2W
Industrial case temperature range of -40°C to 85°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Aligned with IEEE 802.3cc
25G DFB transmitter and 25G PIN receiver
Single LC receptacles
I2C management interface
RoHS compliant
25GBASE-LR
CPRI option 7,8,10 / eCPRI
Specification
| Data Rate | 9.83/10.13/10.31/24.33/25.78Gb/s |
| Case Temperature | -40~85℃ |
| Transmitter | DFB |
| Wavelength | 1270nm/1330nm |
| Power consumption（Max） | 1.2W |
| Distance | 10km |
| Voltage Supply | 3.3V |
| Receiver | PIN |
| Connector | Single LC |
